มิกเซอร์ MACKIE ProFX10v3 Professional Mixer with FX
มิกเซอร์ MACKIE ProFx10v3 เป็นมิกเซอร์รุ่นล่าสุดที่ออกมาในปี 2020 ในรหัส V3 (version-3) เพื่อออกมาแทนรุ่น Version-2 เดิม, 4 Mic/Line Inputs (Comp 1-2), 2 Mono/Stereo Line Inputs + 1/8″ Input, 2-In / 4-Out USB (24-Bit, 192 kHz), Gig FX Effects Engine (24 FX Presets)
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿10,990.00 ฿9,990.00
Description

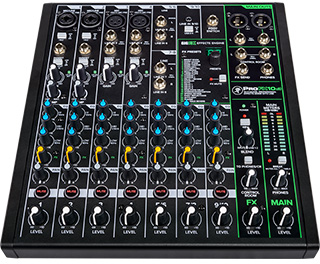

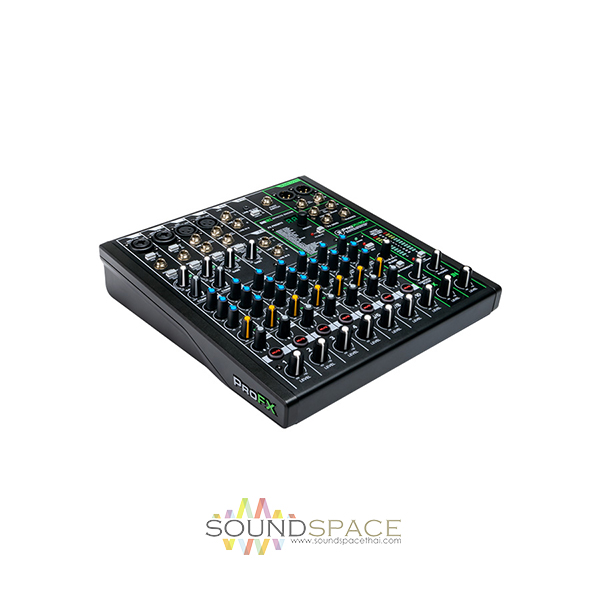

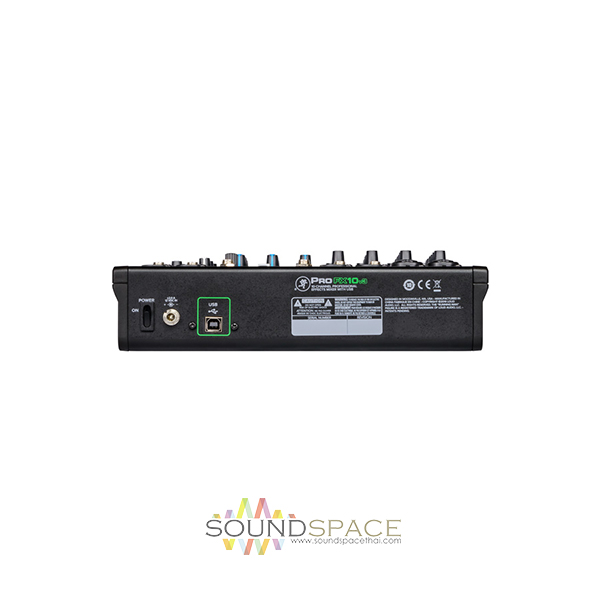

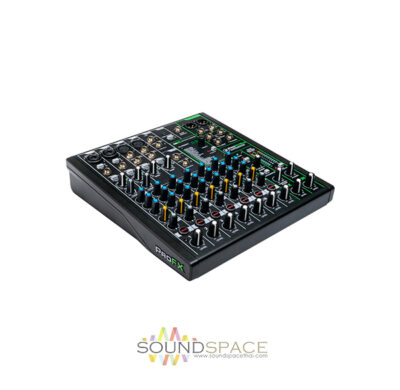

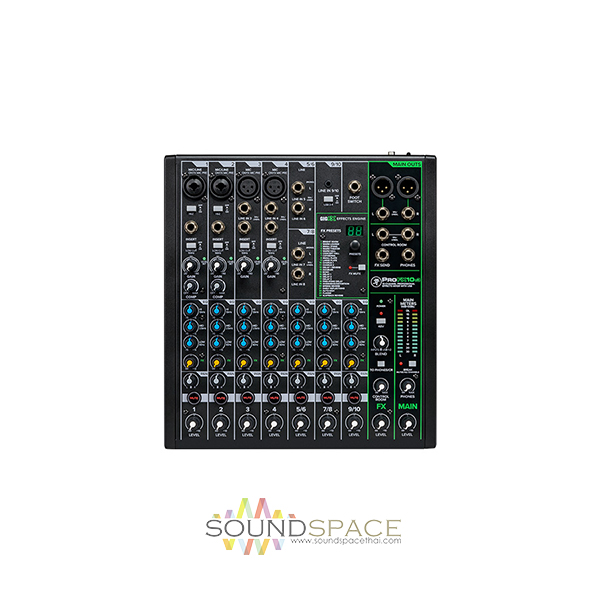

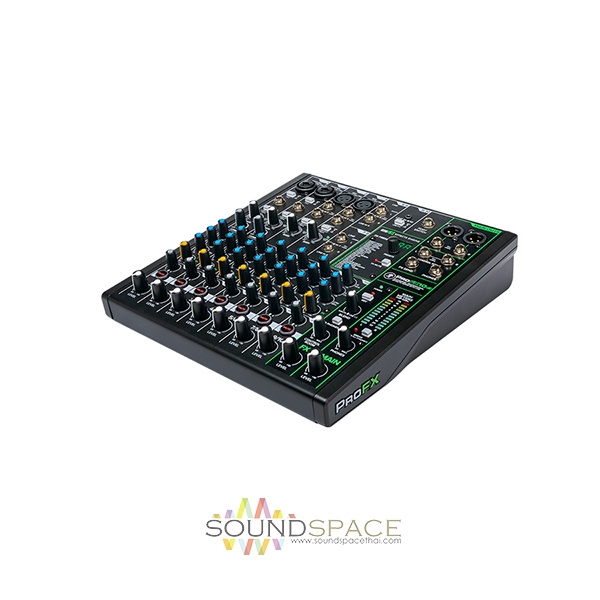

Mackie ProFX10v3 Professional Mixer with FX
มิกเซอร์ MACKIE ProFx10v3 เป็นมิกเซอร์รุ่นล่าสุดที่ออกมาในปี 2020 ในรหัส V3 (version-3) เพื่อออกมาแทนรุ่น Version-2 เดิม, 4 Mic/Line Inputs (Comp 1-2), 2 Mono/Stereo Line Inputs + 1/8″ Input, 2-In / 4-Out USB (24-Bit, 192 kHz), Gig FX Effects Engine (24 FX Presets)
The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2×4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4″ mic/line connections and feature single-knob compression and Hi-Z (for guitar and bass), while channels 3-4 offer XLR or 1/4″ inputs. Channels 1-4 include inserts, low-cut filters (100 Hz), and gain controls. Channels 5/6 and 7/8 offer two 1/4″ inputs, while channel 9/10 use a 3.5mm stereo input.
All channels offer 3-band EQ, dedicated FX send, pan, mute, and level controls. Engaging channel 9/10’s USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4″ connectors, while the dedicated 1/4″ TRS headphone output includes an independent level control.
Other features include a pair of control room outputs with level control, an input USB 1/2 blend control, a dedicated FX output, an FX level control, and an FX mute, which can also be controlled via the 1/4″ footswitch input.
The ProFX10v3 features a download for ProTools | First software, Waveform OEM, and The Musician Collection plug-in package including 23 high-quality plugins including BBD Delay, Level Lite, 304E EQ, and 304C Compressor. You also get Tracktion Waveform and the DAW Essentials Collections. The Mackie ProFX10v3 includes a USB cable and power supply
Features:
- GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
- 4 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
- Rugged design will stand up to the wear and tear of the road
- 3 Band EQ and 100Hz low-cut filter on all channels
- Built-in channel compression
- 48-volt phantom power on all mic channels
- 24-bit/192kHz A/D for unmatched audio quality
- USB for playback music and recording into your computer
- Balanced XLR and balanced/unbalanced outputs
- Headphone output has separate volume control for comfortable monitoring
Specifications
| Equivalent Input Noise | 150-Ohm Source Impedance, 20 Hz to 20 kHz: Mic In to Insert Send Out, Max Gain -126 dBu |
| Residual Output Noise | All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu |
| Frequency Response | Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz |
| THD+N | 22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output): <0.03% |
| Attenuation and Crosstalk | Adjacent Inputs at 1 kHz: -90 dB Inputs to Outputs at 1 kHz: -80 dB Fader Off at 1 kHz: -75 dB Mute Switch / Break Switch Mute at 1 kHz: -90 dB |
| Common Mode Rejection Ratio | Mic In to Main Out, Max Gain, 1 kHz: 70 dB |
| Maximum Level | All Inputs: +22 dB Main Out XLR: +28 dBu All other Outputs: +22 dBu |
| Impedance | Mic In: 3.3 Kilohms Channel Insert Return: 10 Kilohms All Other Inputs: ≥20 Kilohms Phones Output: 25 Ohms All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced |
| Equalization | Low ±15 dB at 80 Hz Mid ±15 dB at 2.5 kHz High ±15 dB at 12 kHz Low Cut Filter 18 dB/octave at 100 Hz |
| Maximum Voltage Gain | Mic Input Channel to: Insert Output: 60 dB 1/4″ Main Output: 80 dB XLR Main Output: 86 dB FX Send: 80 dB USB Output: 70 dBMono Line Input Channel to: Insert Output: 40 dB 1/4″ Main Output: 60 dB XLR Main Output: 66 dB FX Send: 60 dB USB Output: 50 dBStereo Line Input Channel to: 1/4″ Main Output: 20 dB XLR Main Output: 26 dB FX Send: 20 dB USB Output: 10 dB1/8″ Input to: 1/4″ Main Output: 40 dB XLR Main Output: 46 dB FX Send: 40 dB USB Output: 30 dBUSB Input to XLR Main Output: 46 dB |
| Digital Effects | Number of Presets: 16 |
| Meters | Main L/R Mix: Two Columns of 12 Segments Each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 |
| USB | Format: USB 2.0 I/O: 1 Stereo Input, 2 Stereo Outputs A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz |
| Phantom Power | 48 VDC to All Mic Channels Simultaneously |
| AC Power Requirements | Universal AC Power Supply: 100 – 240 VAC, 50 – 60 Hz Power Supply: 12 VDC at 2A Class I Hard-Wired Wall Mount Adapter |
| Dimensions (H x W x D) | 3.2 x 10.7 x 11.9″ / 8.1 x 27.1 x 30.2 cm |
| Weight | 4.9 lb / 2.2 kg |
