เพาเวอร์มิกเซอร์ MACKIE PPM1012 Power Mixer

Name: เพาเวอร์มิกเซอร์ MACKIE PPM1012 Power Mixer
Price: 44900.00 THB
Availability: InStock

เครื่องประกอบสัญญาณเสียงแบบมีกำลังขยายในตัว MACKIE PPM1012 มีกำลังขยายข้างละ 800 เมตรสูงสุด, 12 อินพุต 8 โมโน, 3-Band EQ พร้อม Sweep, พร้อม Compressors และเอ็ฟเฟ็คร้อง

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿44,900.00

สอบถามและสั่งซื้อสินค้า

Category: เพาวเวอร์มิกเซอร์ (Power Mixer) Tag: MACKIE

Description

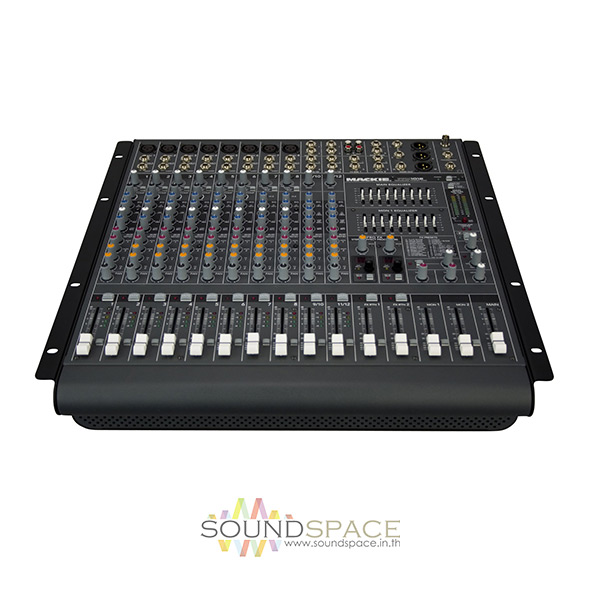

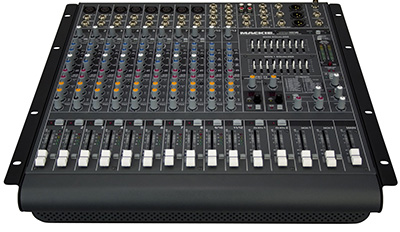

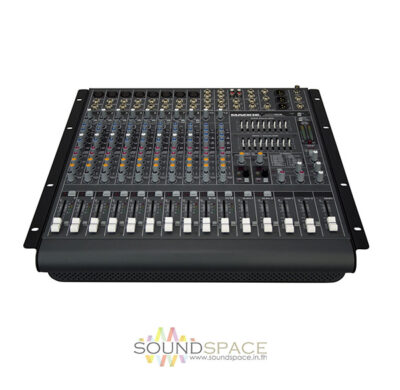

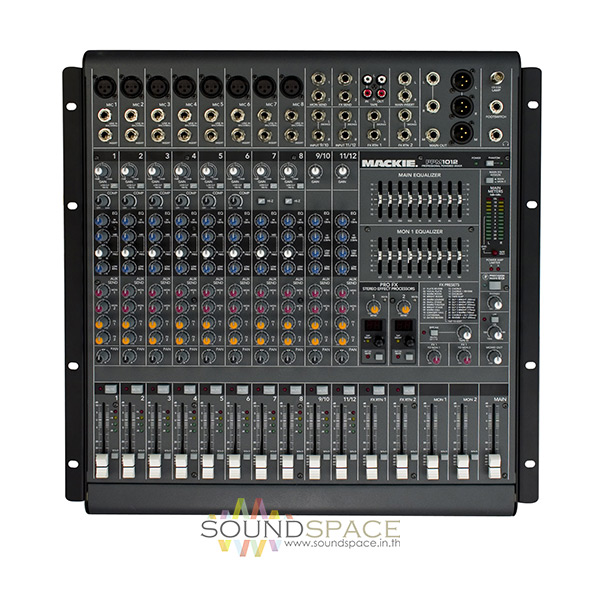

MACKIE PPM1012 12-Channel Professional Desktop Powered Mixer (1600W)

The Mackie PPM1012 12-Channel Professional Powered Mixer features two built-in amplifiers that deliver a powerful 1600W (peak) to passive loud speakers. The mixer is a perfect match with Mackie passive loud speakers such as the C300 or S215 models.

A total of 12-channels are comprised of 6 mono line, 2 line / DI switchable, and 2 stereo channels. The first 8 channels feature XLR microphone inputs with phantom power, and channels 7 and 8 also feature DI instrument inputs for direct connection of guitars.

Built-in compression dials are featured on channels 1 through 6 for easy on-touch compression setting. The Running Man 32-bit effects processor delivers “gig ready” usable effects presets that include plate reverb, room reverb presets, chorus settings and delays.

A full 3-band EQ section with mid-range sweep is featured on all mono inputs and two 9-band graphic EQ sections provide additional frequency contouring on output. The PPM1008 is designed for rigorous road use with built-in handles, rounded front chassis and ABS construction. The PPM1008 features the routing, features, sound quality, power and ruggedness expected for sound reinforcement on-the-go.

Features:

800+800W Peak
12-Channels
32-Bit “Gig Ready” Effects
Built-In Compression
Built-In Instrument Inputs
Ultra Lightweight
3-Band EQ with Sweep
Dual 9-Band Graphic EQ

Specifications

Power Rating	Dual 800 Watt Amplifiers for 1600 Watts of Total Peak System Power
Mic/Line Inputs	3-pin XLR Microphone x8 1/4″ Phone Mono Line x6 L/R Stereo 1/4″ Phone Line x2 L/R Stereo RCA Phono Line x2 1/4″ Phone Mono Line/Instrument x2
Mains Inputs	Unbalanced 1/4″ Phone A/B x2
In-Line Inputs/Returns	No
Aux Sends	MON1 Send – 1/4″ Phone FX/MON2 Send – 1/4″ Phone
Aux Returns	No
Inserts	1/4″ TRS Phone All Mono and Instrument / Line Inputs
BUS (Group) Outputs	MAIN Left/Right – L/R Stereo 1/4″ Phone

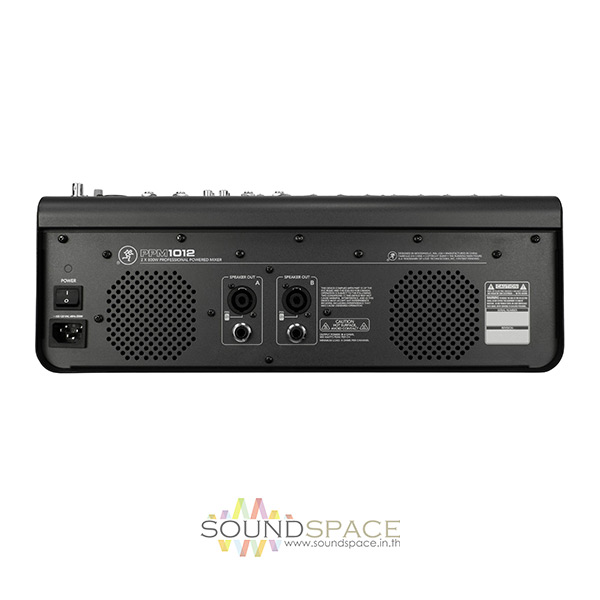

Main Output	Speaker Outputs – A/B Speakon and 1/4″ Phone Connectors
Tape I/O	L/R RCA Phono
Monitor Outputs	MON1 Send – 1/4″ Phone FX/MON2 Send – 1/4″ Phone
EQ Section	Channel EQ High Shelving: +/- 15dB @ 12kHz Mid Peak Sweep (Mono chs): +/- 15dB Mid Sweep Range: 100Hz to 8kHz Hi Mid Peaking (Stereo chs): +/- 15dB @ 2.5kHz Lo Mid Peaking (Stereo chs): +/- 15dB @ 400kHz Low Shelving: +/- 15dB @ 80Hz 9-Band Graphic EQ Main and Monitor 1: +/- 15dB @ 63, 125, 250, 500, 1k, 2k, 4k, 8k and 16kHz
Solo/Mute	No
Channel Level Control	Rotating Pot Controls
Trim/Gain Control	Rotating Pot Controls
Phantom Power	+48V
Metering	Stereo Peak LEDs
Frequency Response	Mic Mono Inputs: < 10Hz to 80kHz Line Mono Inputs: < 10Hz to 40kHz Line Stereo Inputs: < 10Hz to 75kHz
Signal-to-Noise Ratio	-128dBu
Total Harmonic Distortion (THD)	Mic Mono: < 0.007% High Gain Mic Mono: < 0.005% Low Gain Line Mono: < 0.005% Low Gain Line Stereo: < 0.01% at Main Out
Power Supply	120VAC 50/60Hz 680W
Dimensions (HxWxD)	19.2 x 17.4 x 5.2″ (487 x 442 x 133mm)
Weight	29 lbs (13.2kg)
