USB Recording Interface MACKIE Onyx Blackjack 2 Input / 2 Output, 24-bit/48kHz, Includes Tracktion 3 music production software for Mac or Windows
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿6,490.00 ฿6,350.00
USB Recording Interface MACKIE Onyx Blackjack 2 Input / 2 Output, 24-bit/48kHz, Includes Tracktion 3 music production software for Mac or Windows

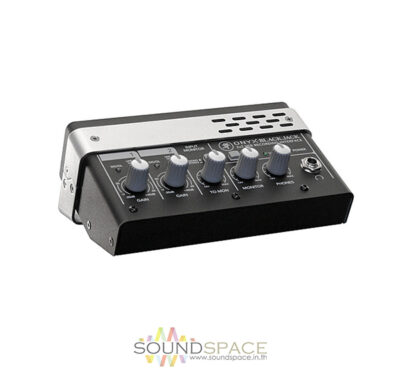

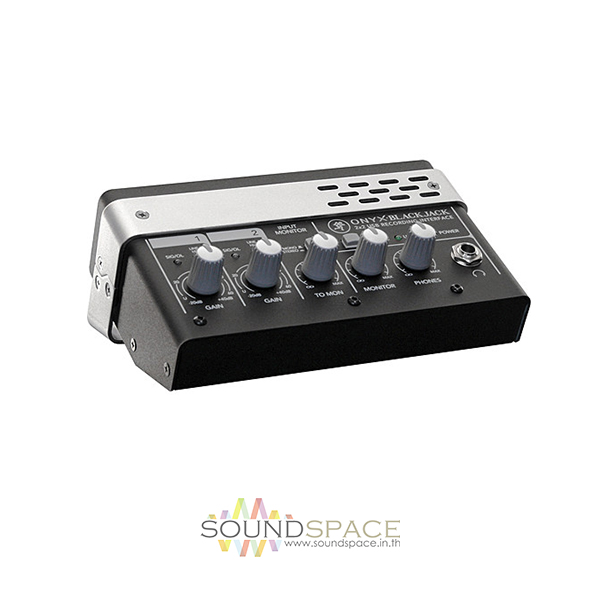

The Onyx Blackjack from Mackie is a 2 x 2 USB recording Interface featuring two boutique-quality Onyx preamps and high-end 24-bit/48kHz conversion in a convenient tabletop housing. The analog to digital converters offer 114dB dynamic range (A-weighted) and the preamp circuitry is aligned precisely with the conversion to always provide the best headroom and the lowest noise and distortion possible.
Latency during recording is an issue that often requires a workaround. The Blackjack puts this issue to rest once and for all, featuring a true analog monitoring path directly from the preamps to the studio monitors and headphones. This means you can track in either mono or stereo while listening to the direct analog source with zero routing. Not only that, it also means you can adjust your buffer settings to maximize your computers processing ability.
ADC | 24-bit
Dynamic Range: 114dB typical, 10Hz to 20kHz, A-weighted |
DAC | 24-bit
Dynamic Range: 114dB typical, 10Hz to 20kHz, A-weighted |
Inputs | 2 x XLR/TRS Combi Microphone/Line |
Outputs | 2 x 1/4″ TRS phone Monitor Out, balanced or unbalanced (rear panel) 2 x 1/4″ TRS phone Headphone (front panel) |
MIDI | No |
Connectivity | USB |
Sample Rate | 44.1 and 48kHz |
Buffer Size | 96, 128, 256, 512, 1024 |
Input Level | Microphone: Maximum: +10dBu (gain @ minimum) Maximum: -50dBu (gain @ maximum)Line: Maximum: +25dBu (gain @ -15dB) Instrument: |
Input Impedance | Microphone: 3kΩLine: 18kΩ balanced 9kΩ unbalanced H-Z: |
Gain Range | Microphone: 60dB |
Output Level | Monitor: +10dBu (@ unity/maximum)Headphones: 8mW into 600Ω, 1% THD+N (@ unity/maximum) |
Output Impedance | Phones: 25ΩMonitors: 300Ω balanced 150Ω unbalanced |
Phantom Power | 48VDC, 10mA maximum per microphone |
THD + N | Microphone to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: <0.002% (+4dBu In, unity gain, +4dBu Out)Line to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: <0.002% (+4dBu In, unity gain, +4dBu Out) Hi-Z to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: Phones 22Hz to 22kHz bandwidth, 1kHz: Microphone to USB Record (AD) 22Hz to fs2 bandwidth, 1kHz: USB Playback to Monitor Out 22Hz to 22kHz bandwidth, 1kHz: |
Noise | EIN, microphone input to USB record, 150Ω source impedance, 22Hz to 22kHz: -124dBu (maximum gain) EIN, microphone input to USB record, 40Ω source impedance, 22Hz to 22kHz: 126dBu (maximum gain)Direct Monitor Output Noise, Monitor and To Monitor levels unity/maximum, 22Hz to 22kHz: 95dBu USB Record Noise Floor/Dynamic Range microphone input/minimum gain, 1kHz -60dBFS: USB RPlayback Noise Floor/Dynamic Range (Monitor output, Monitor level unity/maximum, To Monitor off/minimum, 1kHz -60dBFS): |
Crosstalk | To Mon or Monitor knob off/minimum: <-100dB , 20Hz to 20kHz BW, 1kHzAny Channel to Any Other: <-80dB , 22Hz to 22kHz BW, 1kHz |
CMRR | Microphone Input, 150Ω termination: >-50dB @ 1kHz |
Frequency Response | Microphone to Monitor Outputs (direct monitor analog-only path, stereo), unity gain: 15Hz to 50kHz, +0.0dB/-0.2dBLine to Monitor Outs (direct monitor analog-only path, stereo), unity gain for 1/4″ TRS input: 10Hz to 25kHz, +0.0dB/-1.0dB USB Through, microphone input to monitor output, unity gain (To Mon off/minimum): |
Meters | Bi-color channel meters |
Power Requirements | USB bus powered (5V up to 500mA) |
System Requirements | Mac PowerPC G4 or Intel processor OS X 10.5.0 (Intel and PPC), OS X 10.6 (Intel) 512GB RAM FireWire portPC Pentium IV, Celeron or AMD Athlon XP Windows XP SP2 , Vista (32- or 64-bit), Windows 7 (32- and 64-bit) 512MB RAM FireWire port |
Dimensions | 6.6 x 4.3 x 2.8″ (167 x 110 x 71mm) |
Weight | 1.5 lb (0.7kg) |
Specialties | Includes Tracktion 3 software for Windows or Mac |
