มิกเซอร์ MACKIE Mix5 Compact Mixer

เครื่องประกอบสัญญาณเสียง MACKIE Mix5 5 input 1 Mic / Line Inputs with 2-Band EQ, 2 Stereo 1/4 “Line Inputs

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

฿2,490.00

สอบถามและสั่งซื้อสินค้า

Description

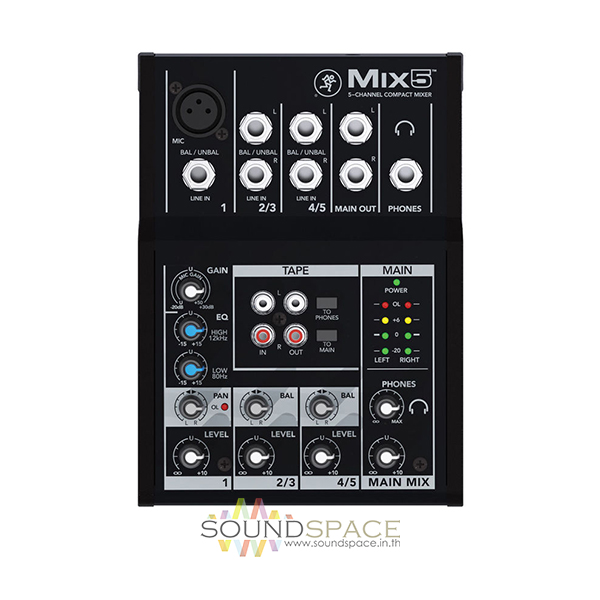

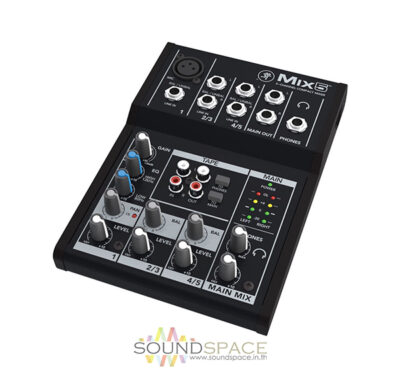

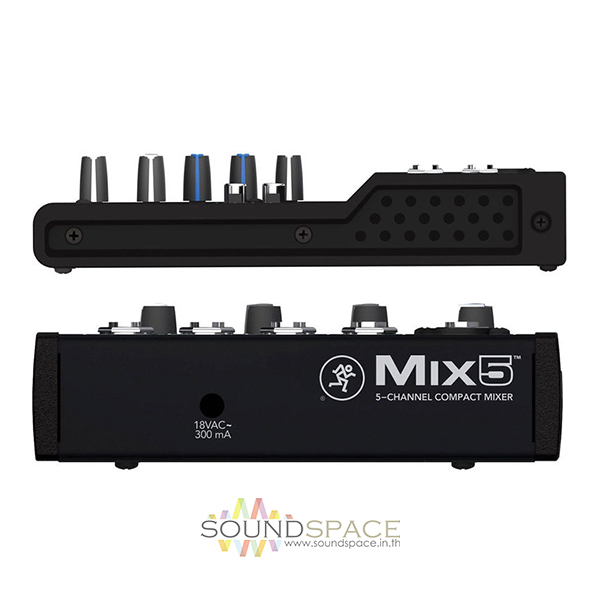

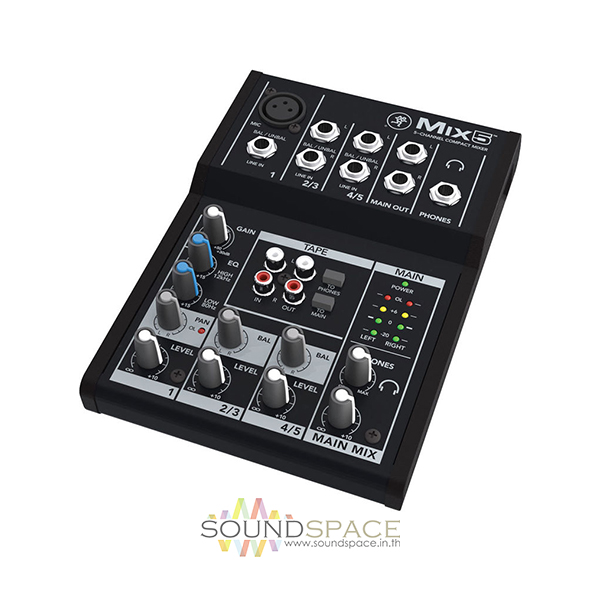

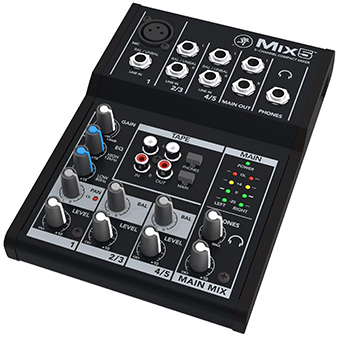

MACKIE Mix5  5-Channel Compact Mixer

เครื่องประกอบสัญญาณเสียง MACKIE Mix5 5-input 1 Mic / Line Inputs with 2-Band EQ, 2 Stereo 1/4 “Line Inputs

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4″ line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

The mic/line input is equipped with XLR and 1/4″ connectors, phantom power, 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4″ line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.

Features:

  • 1 Mic/Line Inputs with 2-Band EQ
  • 2 Stereo 1/4″ Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level and Overload Indication
  • Dedicated Stereo RCA Inputs
  • Headphone and Stereo Control Room Outs
  • Compact and Portable

Specifications

Noise (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off –90 dBu

All outputs, master levels unity, 1 channel level unity –85 dBu





THD+N (20 Hz – 30 kHz bandwidth)Mic input to main output  <0.25% @ +4 dBu output





Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz  (-85 dB)

Main mix off @1 kHz (-75 dB)





Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz



Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB,  (mic in to insert send out, max gain)
Impedance Mic In: 2 kOhmsAll Other Inputs: 10 kOhms or greater

Tape Out : 1 kOhms

Phones: 22 ohms

All Other Outputs: 120 ohms unbalanced,  240 ohms balanced





Maximum Level Mic Inputs (XLR):  +19 dBuAux Return In:  +16 dBu [Mix 8]

All Other Inputs:  +21 dBu

All Outputs: +21 dBu





Equalization High Shelving:  ±15 dB @ 12 kHzLow Shelving:  ±15 dB @ 80 Hz







Power Requirements Power Connection:  2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

Output: 18 VAC, 600 mA





Dimensions 1.7 x  5.5 x 7.7″  (43 x  140 x 196 mm)





Weight 1.4 lb (0.6 kg)
