มิกเซอร์ MACKIE Mix12FX Compact Mixer

Name: มิกเซอร์ MACKIE Mix12FX Compact Mixer
Price: 5490.00 THB
Availability: InStock

เครื่องประกอบสัญญาณเสียง MACKIE Mix12FX 12-input 4 Mic / Line Inputs 3-Band EQ & HPF, 4 Stereo 1/4 “Line Inputs, มีเอ็ฟเฟคร้องในตัว 12 FX Reverbs, Choruses & Delays

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

฿5,490.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: MACKIE

Description

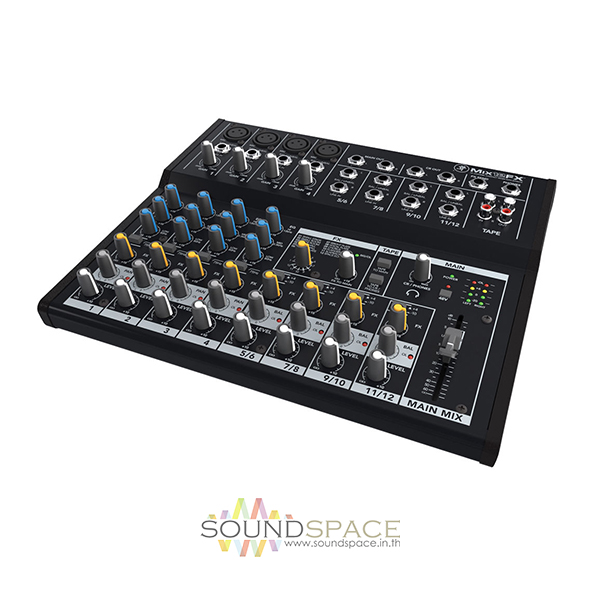

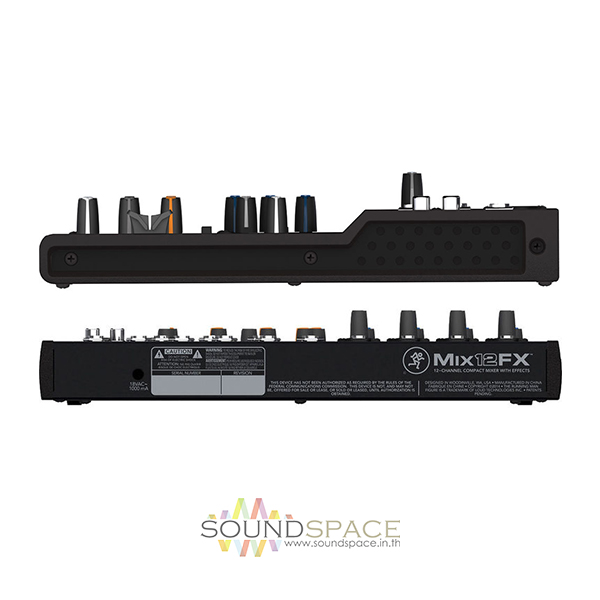

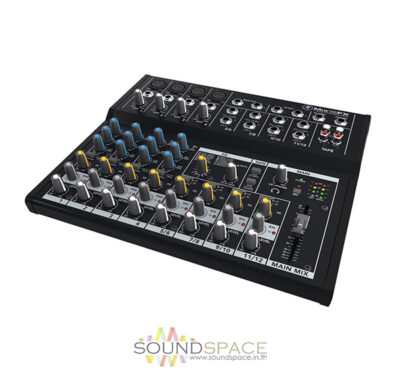

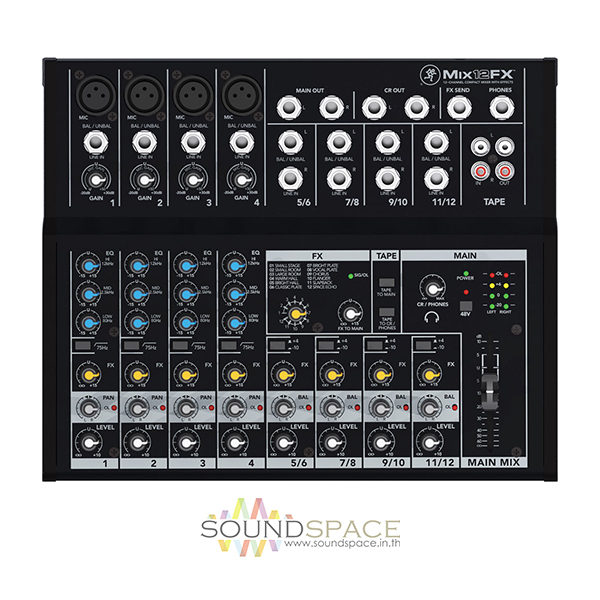

MACKIE Mix12FX 12-Channel Compact Mixer with Effects

The Mackie Mix12FX is a 12-channel compact mixer with built-in effects that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features four mic/line inputs with 48V phantom power and four stereo 1/4″ line inputs, capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

Each of the four mic/line inputs is equipped with XLR and 1/4″ connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level control and an LED overload indicator. The four stereo 1/4″ line inputs each feature +4/-10dB operation, level control, balance control and also have an LED overload indicator. In addition, the Mix12FX features 12 integrated effects for polishing your mix including reverbs, choruses and delays.

Features:

4 Mic/Line Inputs with 3-Band EQ & HPF
4 Stereo 1/4″ Line Inputs
Stereo RCA Tape Inputs & Outputs
Pan, Level & Overload Indication
48V for Condenser Mics
12 FX – Reverbs, Choruses & Delays
Dedicated Stereo RCA Inputs
Headphone & Stereo Control Room Outs
Compact & Portable

Specifications

Noise	(20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)All outputs, master levels and channel levels off –100 dBu All outputs, master levels unity, all channel levels off –90 dBu All outputs, master levels unity, 1 channel level unity –85 dBu
THD+N	(20 Hz – 30 kHz bandwidth)Mic input to main output <0.25% @ +4 dBu output
Attenuation and Crosstalk	(20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz –85 dB Main mix off @1 kHz –75 dB
Frequency Response	Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise	–122 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio	1 kHz better than –70 dB, (mic in to insert send out, max gain)
Maximum Level	Mic Inputs (XLR): +19 dBuAll Other Inputs: +21 dBu All Outputs: +21 dBu
Impedance	Mic In: 3.8 kohmsAll Other Inputs: 10 kohms or greater Tape Out : 1 kohms Phones: 22 ohms All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
Equalization	High Shelving: ±15 dB @ 12 kHzMid Peaking: ±15 dB @ 2.5 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz
Power Requirements	Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU] Output: 18 VAC, 1000 mA
Dimensions	2.1 x 11.7 x 9.6″ (53 x 297 x 244 mm)
Weight	3.7 lb (1.7 kg)
