ดิจิตอลมิกเซอร์ MACKIE DL32R Digital Rack Mixer
MACKIE DL1608ดิจิตอลคมิกเซอร์อินพุต 32 ch, เอาต์พุต XLR ที่กำหนดได้ 14 แบบ, เอาต์พุตดิจิตอลสเตอริโอ AES, การควบคุมแบบไร้สายผ่าน iPad
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿64,900.00
Description

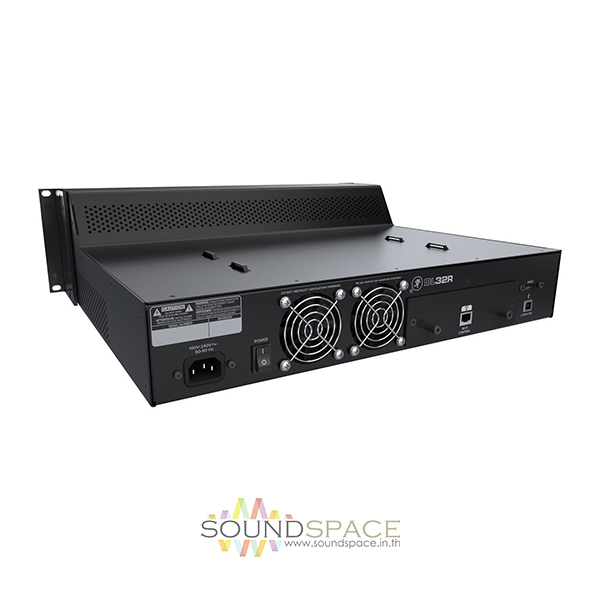

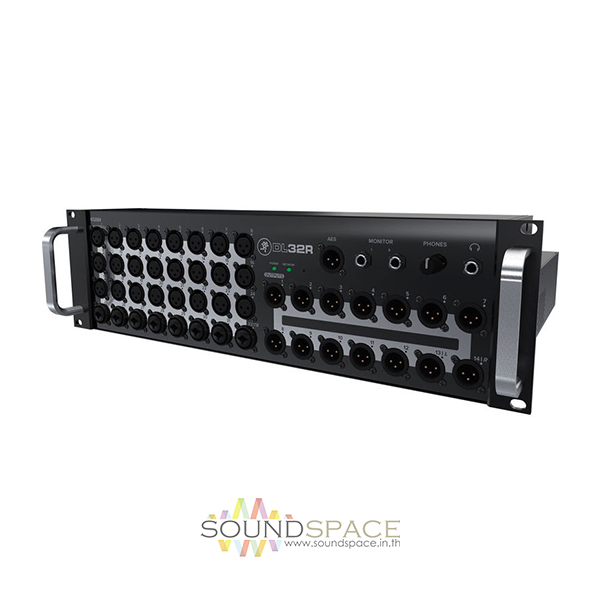

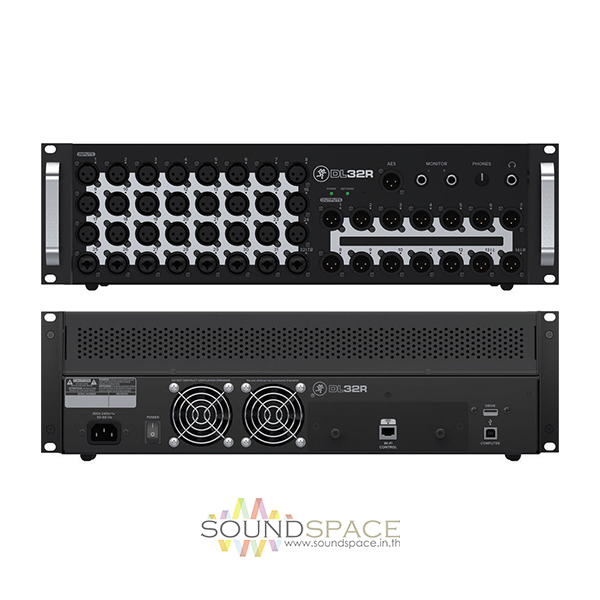

MACKIE DL32R 32-Channel Wireless Digital Live Sound Rack Mixer
MACKIE DL1608 ดิจิตอลคมิกเซอร์อินพุต 32 ch, เอาต์พุต XLR ที่กำหนดได้ 14 แบบ, เอาต์พุตดิจิตอลสเตอริโอ AES, การควบคุมแบบไร้สายผ่าน iPad

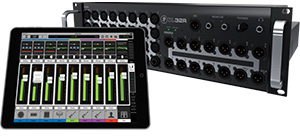

The Mackie DL32R is a 32-channel wireless digital audio mixer and USB 2.0 audio interface that allows the entire process of live sound mixing to be controlled with an iPad, and allows for personal monitor mixing with any iOS device, such as an iPhone or iPod touch. It delivers a live sound mixing experience that takes advantage of the iOS touch screen and wireless control capabilities, while providing a wealth of professional features to accommodate a wide variety of sound reinforcement and recording applications.
The DL32R features 32 microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps, capable of handling full bands that include guitars, full drum sets, vocals, and much more. It also has 14 fully assignable XLR outputs for connection to amplifiers, powered speakers, wireless transmitters for in-ear monitoring. The DL32R also allows up to 10 performing musicians to mix their own monitors using their iPhone, iPad or iPod touch.
In addition to sound reinforcement, the unit also provides 24-bit/48 kHz audio capture and playback for recording in live situations or in the studio. As an audio interface, the DL32R can be paired with your Mac or PC computer, or you can record directly to a USB 2.0 hard drive without a computer. Featuring three stereo FX processors with reverbs and delays, and dedicated sends & returns, the DL32R can function as a versatile, all-in-one mixing and recording solution.
Features:
- Complete Wireless Control via iPad
- Personal Monitor Mixing with Any iOS
- 32 Mic Inputs with Onyx+ Recallable Pres
- 14 Fully Assignable XLR Outputs
- 4-Band EQ, HPF & Dynamics on Each Input
- 28 Output Busses w/ EQ & Alignment Delay
- 3 FX Processors with Reverbs & Delays
- 3U Rackmount Design
- 32×32 USB 2.0 Interface for Mac & PC
- Record to a USB Drive Without a Computer
Specifications
| Sample Rate | 48 kHz |
| Bit Depth | 24-bit |
| System Latency | 1.5 ms (Analog Input > Main Bus > Analog Output) |
| Reference Level | 0 dBFS Reference: +22 dBu |
| Frequency Response | ±0, -1 dB, 20 Hz to 20 kHz |
| Distortion (THD) | Mic Input to Main Output (1 kHz, -1 dBFS): <0.005% |
| Equivalent Input Noise | 150 ohm termination: -128 dBu |
| Crosstalk | Analog XLR input-input: <-105 dB @ 1 kHz (min. gain), <-80 dB @ 1 kHz (max. gain) Analog XLR / TRS output-output: <-100 dB @ 1 kHz |
| Signal-to-Noise Ratio | 92 dB (ref +4 dBu, one channel and main fader at unity, A-weighted) |
| Output Noise | Muted Output: -90 dBu (A-weighted) |
| Dynamic Range | Analog Input to Analog Output: 109 dB (one channel and main fader at unity, A-weighted) Analog Input: 111 dB (unity gain, to analog clipping, -60 dBFS signal, A-weighted) Analog Output: 111 dB (to analog clipping, -60 dBFS signal, A-weighted) |
| Analog Inputs | Channels 1-24: XLR balanced Channels 25-32: Combo XLR / TRS balanced |
| Mic Preamps | Onyx+ |
| Analog Input Impedance | Channels 1-24: 3 kOhms Channels 25-32: 3 kOhms mic [XLR], 30 kOhms line [1/4″] |
| Max Input | XLR: +21 dBu 1/4″: +30 dBu |
| Gain | Gain (digitally controlled analog): XLR: 0 to 60 dB [3 dB steps], 1/4″: -20 to 40 dB [3 dB steps] |
| Phantom Power | (XLR): 48 VDC, 10 mA max per mic, with up to 16 simultaneously. 5 mA max per mic, with up to 32 simultaneously. Individual digital controller per channel |
| Analog Outputs | XLR balanced (Analog Outputs 1-12) 1/4″ TRS impedance balanced (Analog Monitor Outputs L/R, supports balanced / unbalanced operation) 1/4″ TRS Stereo (Analog Headphone Out) |
| Output Impedance | 600 ohms (Analog Outputs 1-12) 240 ohms balanced, 120 ohms unbalanced (Analog Monitor Outputs L/R) |
| Max Output | +21 dBu (Analog Outputs 1-12) +21 dBu (Analog Monitor Outputs L/R) +18 dBu into 600 ohms (Analog Headphone Out) |
| AES Output | Format: AES3 professional, 48 kHz, 24-bit stereo Connector: XLR Balanced Output Impedance: 110 ohms |
| Streaming | Connection: USB 2.0 High Speed (as a device) Connector: USB-B Supported MS Windows [Driver installation required]: Windows 7, 8 Supported Mac OS [Audio Class 2.0 Compliant, no driver required]: OS X 10.8.4, 10.9 Audio: 32 in / 32 out, 48 kHz, 16-/24-bit |
| Recording/Playback | Connection: USB 2.0 High Speed (as a host) Connector: USB-A Audio: 1-24 channel, 48 kHz, 16-/24-bit (multichannel .wav) Supported Devices: USB 2.0 / 3.0 Class Compliant HDD HDD Format: FAT32 Bus Power: 5 V, 1 A max |
| Networking | Connection [Using Basic Network Option Card]: 100 Mb Ethernet Control: Complete Simultaneous Control: 10 iOS Devices |
| iPad | iOS Version Requirement: 7.1 or greater required iPad Version Requirement for Wireless: iPad 2, iPad (3rd generation), iPad (4th generation), iPad mini, iPad mini retina, iPad Air Control Application: Mackie Master Fader App, Master Fader 3.0 or greater required |
| DSP | 36 input channels with 4-band PEQ + HPF, gate and compression (32 stereo-linkable input channels, 4 stereo-linkable return channels with PEQ and compression only) 28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay (14 stereo-linkable aux sends, 6 stereo-linkable matrix busses, 6 stereo-linkable subgroups with PEQ and compression only, Main L/R busses) 6 VCAs and 6 mute groups 3 stereo FX processors (2 reverb, 1 delay) with dedicated sends and returns Full I/O routing with A/B sources per channel Modern and Vintage options per processor |
| Power | Power Requirements: 100 VAC – 240 VAC, 50 – 60 Hz, Universal Supply Power Consumption: 100 W max Line Cord: User-replaceable IEC Operating Temperature: 32 – 104˚F (0 – 40˚C) |
| Rack Spaces | 3U rack spaces |
| Dimensions | 5.4 x 19.0 x 17.5″ (138 x 483 x 443 mm) |
| Weight | 18.0 lb (8.2 kg) |
