ลำโพง Multimedia มีกำลังขยายในตัวขนาดดอกลำโพง 3″ ขนาดเสียงแหลม 0.75″ กำลังขับ 28 วัตต์ Amplifier Class AB
ราคาสินค้าเป็นราคาต่อคู่…..ไม่รวมภาษีมูลค่าเพิ่ม
฿5,990.00 ฿5,900.00
ลำโพง Multimedia มีกำลังขยายในตัวขนาดดอกลำโพง 3″ ขนาดเสียงแหลม 0.75″ กำลังขับ 28 วัตต์ Amplifier Class AB

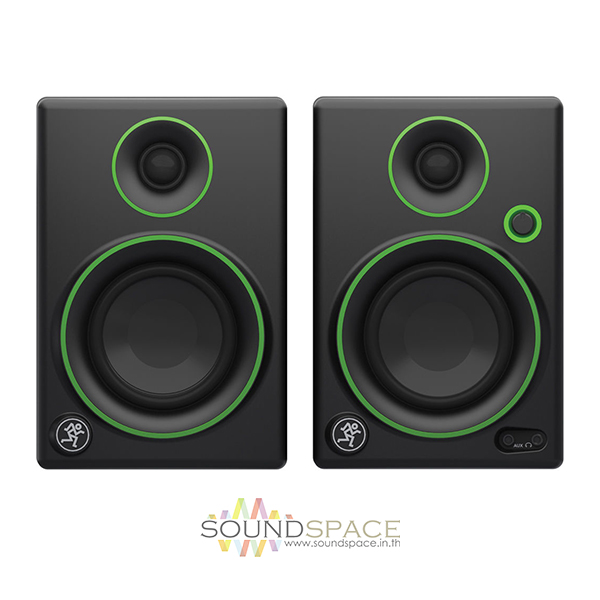

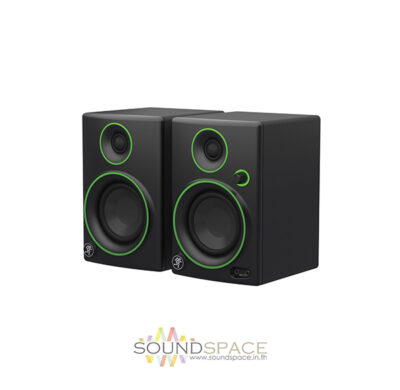

The Mackie CR3 – 3″ Woofer Creative Reference Multimedia Monitors (Pair) are a compact and portable solution for providing audio playback in home and studio environments for multimedia work such as mixing music or doing sound for film. The pair consists of one passive un-powered speaker and one Class AB amplifier powered speaker that connect with an included 6′ stereo cable. The monitors use 3″ polypropylene-coated woofers and a rear port tube for the low end and 0.75″ silk dome tweeters for the highs to deliver a frequency response of 80 to 20,000 Hz with a maximum SPL of 97 dB.
A switch allows you to select whether the powered speaker will function as the left or right speaker which is helpful when having to position the speakers near power outlets or when deciding which side is preferable for the volume knob. A front panel LED power ring illuminated on/off switch and volume knob allows you to control level and a dedicated front panel headphone output that defeats the main speaker output can be used to expand the system’s monitoring versatility.

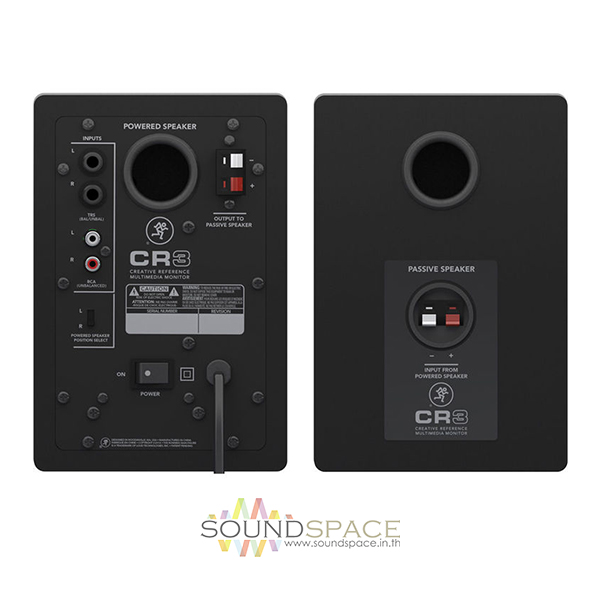

A front panel 1/8″ stereo input and included 1/8″ to 1/8″ cable allows you to connect your smartphone or other mobile device directly to the monitors. Other equipment such as audio interfaces, CD players, or mixers, can be connected to the rear panel 1/4″ TRS, 1/8″ TRS, or RCA inputs. The monitors also come with an 1/8″ stereo to RCA cable for connecting to a computer as well as isolation pads for reducing the transmission of structural vibrations and allowing the monitors to be tilted slightly up or down for a better listening angle.
Frequency Response | -3 dB: 80 to 20,000 Hz -10 dB: 70 to 20,000 Hz |
Maximum SPL | 97 dB |
Crossover Frequency | 3,000 Hz |
Low Frequency Driver | 3″ (76 mm) polypropylene coated woofer |
High Frequency Driver | 0.75″ (19 mm) silk dome tweeter |
Rated Power | 28 W rms 50 W peak |
Amplifier | Class AB |
Input Type | Balanced/unbalanced 1/4″ TRS (rear) Unbalanced RCA (rear) 1/8″ TRS (front) |
Input Impedance | 20 kΩ balanced bridging 10 kΩ unbalanced |
Output Type | 1/8″ stereo headphones (front) |
Power Requirements | United States: 120 VAC, 60 Hz Europe: 220 to 240 VAC, 50 Hz Korea:220 VAC at 60 Hz Japan: 100 VAC at 50/60 Hz |
Power Consumption | 72 W with music loud mix |
Design | Rectangular |
Enclosure Material | Solid MDF |
Finish | Black vinyl wrap |
Port Configuration | Custom-tuned rear port tube |
Damping | Adiabatic batting |
Display & Indicators | LED power ring around volume knob |
Operating Temperature | 32 to 104° F (0 to 40° C) |
Dimensions (H x W x D) | 8.2″ x 5.5 x 6.2″ (208 x 140 x 155 mm) |
Weight | Pair: 9.4 lb (4.1 kg) |
