มิกเซอร์ MACKIE 402VLZ4 Compact Mixer

Name: มิกเซอร์ MACKIE 402VLZ4 Compact Mixer
Price: 4590.00 THB
Availability: InStock

เครื่องประกอบสัญญาณเสียง MACKIE 402 VLZ4 แบบ 4 อินพุต 2 โมโน 2 แบนด์ EQ ทุ้มแหลม (80 Hz และ 12 kHz)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

฿4,590.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: MACKIE

Description

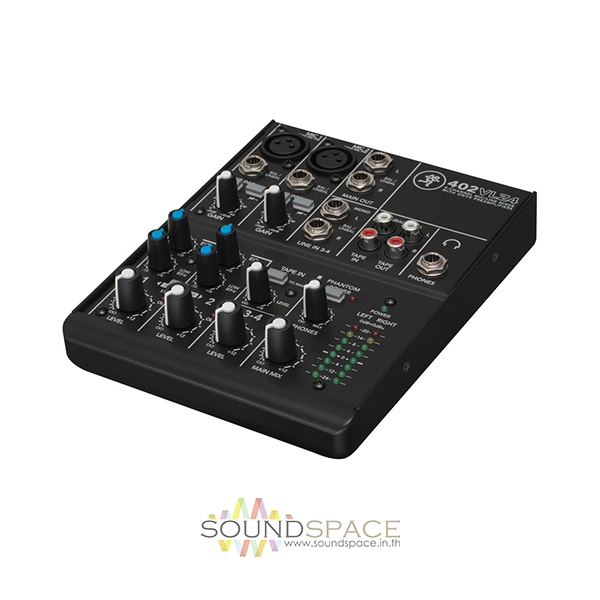

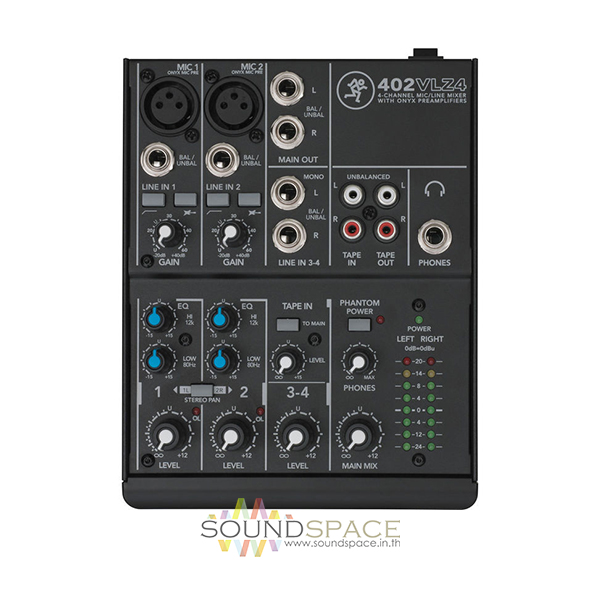

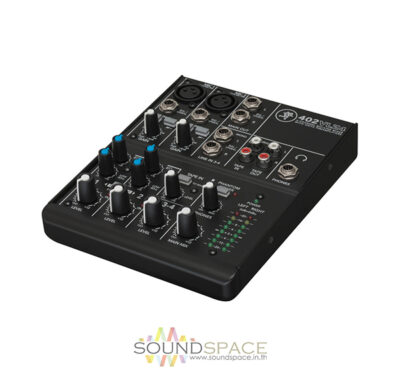

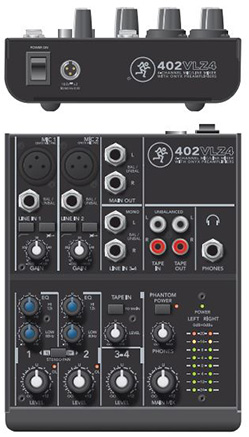

MACKIE 402VLZ4 4-Channel Ultra-Compact Mixer

The Mackie 402VLZ4 4-Channel Ultra-Compact Mixer features Onyx microphone preamps in an ultra-compact design and is suitable for professional low-input applications. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

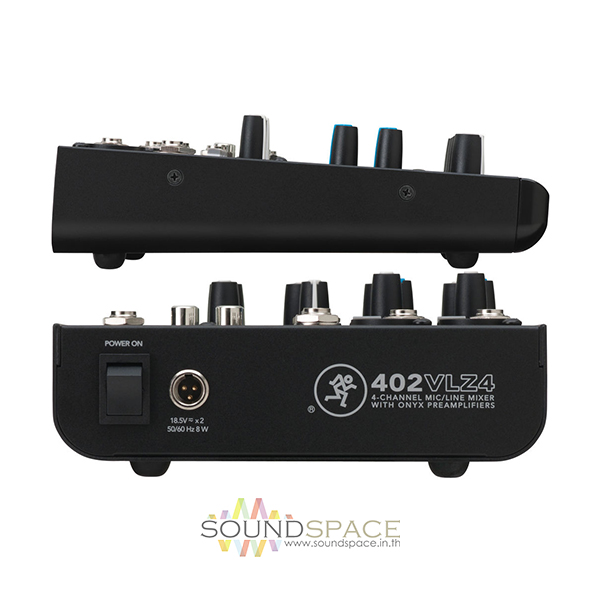

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like instrument level inputs, phantom power, and level metering, the 402VLZ4 4-Channel Ultra-Compact Mixer is a good choice for anybody who is big on performance, but light on inputs. The bottom panel of the mixer features has three non-threaded holes that allow it to be fitted with an optional microphone stand adapter (sold separately). This lets you support the mixer on a standard microphone stand and adjust its height and level to whatever suits your preferences.

Features:

8-Channel mixer featuring high-headroom, low-noise design
3 Boutique-Quality Onyx Microphone Preamps
Improved RF rejection, suitable for broadcast applications
Phantom power for condenser microphones
Eight high-headroom line inputs
Selectable instrument inputs on first 2 channels; no DI box needed
3-Band EQ (80 Hz, 2.5 and 12 kHz)
18 dB/octave 100 Hz low-cut filter on microphone input channels
AUX send, level, pan, and PFL solo on each channel
Stereo return for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Universal power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more

Specifications

Noise	Main Mix Noise: Main Mix Knob Down, Channel Level Knobs Down: -103 dBu Main Mix Knob at Unity, Channel Level Knobs Down: -98 dBu Main Mix Knob at Unity, Channel Level Knobs at Unity: -92 dBu Signal-to-Noise Ratio, ref. +4 dBu 102 dB (20 Hz to 20 kHz bandwidth, 1/4″ main out, channels 1-2 gain at unity, channel EQs flat, stereo-pan button in)
Total Harmonic Distortion (THD)	20 Hz to 80 kHz Bandwidth: <0.005% 20 Hz to 20 kHz Bandwidth: <0.003% (1 kHz @ 35 dB gain)
Crosstalk / Attenuation	Main Mix Knob Down: -70 dBu Channel Level Knob Down: -94 dBu (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4″ main out, gain at unity)
Frequency Response	Microphone Input to Main Output (Gain at Unity): +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise	150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone in to main out, maximum gain
Common Mode Rejection Ratio	Better than -70 dB at 1 kHz
Maximum Level	Microphone In: +21 dBu Tape In: +24 dBu All Other Inputs: +22 dBu All Other Outputs: +22 dBu
Impedance	Microphone In: 2.55 kΩ Instrument Input: 1 MΩ All Other Inputs: 10 kΩ or greater Tape Out: 1 kΩ Phones Out: 60 Ω All Other Outputs: 120 Ω
Equalizer	High Shelving: ±15 dB at 12 kHz Low Shelving: ±15 dB at 80 Hz
Power Consumption	8 W, 100 to 120 VAC, 50 to 60 Hz
Power Supply	External AC Connector: 2-Pin IEC 250 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Dimensions	7.3 x 5.8 x 1.6″ (186.0 x 147.0 x 41.0 mm)
Weight	3.0 lb (1.4 kg) with power supply 2.5 lb (1.1 kg) without power supply
