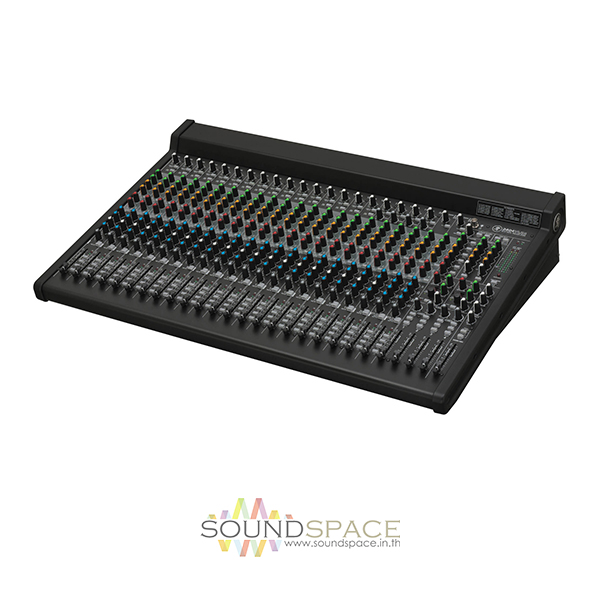

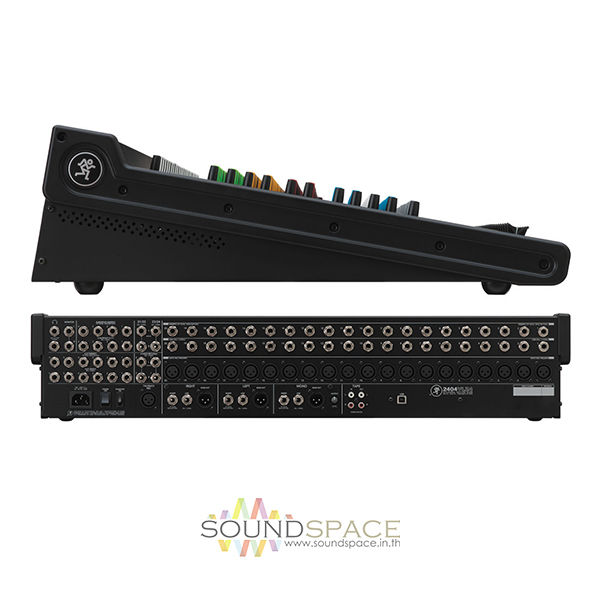

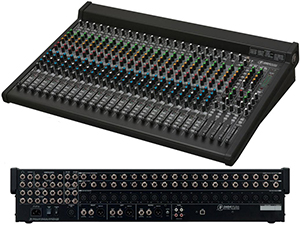

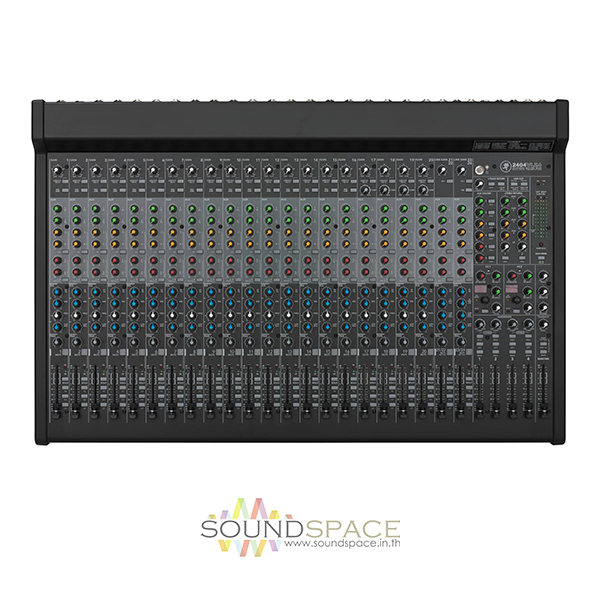

มิกเซอร์ MACKIE 2404VLZ4 Compact Mixer

Name: มิกเซอร์ MACKIE 2404VLZ4 Compact Mixer
Price: 45990.00 THB
Availability: InStock

เครื่องประกอบสัญญาณเสียง MACKIE 2404 VLZ4 แบบ 24-input 20 mono, 3-Band EQ with Sweepable Mid-Range, 6 aux Send, 4 Sup Group, USB interface พร้อมเอ็ฟฟายคร้อง

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿45,990.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: MACKIE

Description

MACKIE 2404VLZ4 24-Channel 4-Bus FX Mixer พร้อม USB

The Mackie 2404VLZ4 24-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx microphone preamps in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.

Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.

The 24-channel, 4-bus FX mixer has 8 single-knob compressors to stop the dynamic signals from poking out of the mix. There are 4 compressors are located on the last 4 microphone inputs so that critical signals (such as vocals, snare drum, guitar or keyboards) may be addressed. In addition, there are single-knob compressors on each of the 4 subgroups so that grouped signals (such as a drum set or a choir of vocalists) may be blended together for paramount smoothness.

This mixer also features a 4 x 2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback. Its built-like-a-tank construction delivers years of reliable use under strenuous conditions. The VLZ4 4-Bus Series offers a compact FX mixer solution in a design that’s flexible, rugged, and professional.

Features:

4-bus mixer featuring high-headroom, low-noise design
Boutique-quality Onyx microphone preamps
Improved RF rejection, suitable for broadcast applications
Dedicated inline channel compression for critical inputs
High-headroom line inputs with dedicated inserts
18 dB/octave 100 Hz low-cut filter on microphone input channels
Level, pan, solo, and overload / mute LEDs on each channel
Four subgroups featuring dedicated inline compressors for total dynamic control
Six AUX sends with inserts, pre / post fader, and internal/external FX send options
Two stereo returns and four group outs with inserts
Dual 32-bit RMFX+ processors featuring 24 gig-ready reverbs, choruses, and tap delay for live applications
Integrated 4×2 24-bit USB interface
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Universal power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multi-track studio and field recording, video post-production, multimedia applications, broadcast, and many more

Specifications

Noise	Main Mix Noise: Main Mix Fader at Unity, Channel Faders Down: -87 dBu (-91 dB signal to noise ratio, ref +4 dBu) Main Mix Fader at Unity, Channel Faders at Unity: -81.5 dBu (20 Hz to 20 kHz bandwidth, 1/4″ main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
Total Harmonic Distortion (THD)	Microphone In to Insert Send: <0.001% Microphone In to Main Out: <0.005% (1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth)
Crosstalk / Attenuation	Channel Mute Switch Engaged: -90 dBu Channel Fader Down: -88 dBu (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4″ main out, gain at unity)
Frequency Response	Microphone input to main output (gain at unity) +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise	150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone input to insert send out, maximum gain
Common Mode Rejection Ratio	Better than -70 dB at 1 kHz
Maximum Level	Microphone In: +21 dBu All Other Inputs: +21 dBu Main Mix XLR Out: +27 dBu All Other Outputs: +21 dBu
Impedance	Microphone In: 2.7 kΩ Channel Insert Return: 2.5 kΩ All Other Inputs: 10 kΩ or greater Tape Out: <10 Ω All Other Outputs: 120 Ω
Equalizer	3-Band EQ (Mono Channels): High Shelving: ±15 dB at 12 kHz Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz Low Shelving: ±15 dB at 80 Hz Low Cut Filter: 18 dB/octave, -3 dB at 100 Hz4-Band EQ (Stereo Channels): High Shelving: ±15 dB at 12 kHz Hi Mid Peaking: ±15 dB at 2.5 kHz Low Mid Peaking: ±15 dB at 400 Hz Low Shelving: ±15 dB at 80 Hz
USB	Format: USB 1.1 I / O: Stereo Input, 4-Channel Output A / D / A: 24 bit, 44.1 kHz / 48 kHz
Power Consumption	55 W, 100 to 120 VAC, 50 to 60 Hz
Operating Temperature	32 to 104°F (0 to 40°C)
Dimensions	Height: Front: 1.8″ (46.3 mm) Rear: 6″ (153 mm)W x D: 29.4 x19.1″ (748.0 x 486.0 mm)
Weight	31.0 lb (14.1 kg)
