ลำโพงแอคทีฟ LD System ICOA 12A BT แบบมีกำลังขยายในตัว เป็นลำโพงแบบ Full Range ขนาดดอกลำโพง 12นิ้ว Coaxial มีกำลังขยาย 300 W RMS, 600 W Program, 1200 W Peak, 3-Band Parametric EQ + Delay, Multiband Limiter + Other Protections, Bluetooth 4.0 Audio Streaming
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿26,500.00 ฿21,200.00
ลำโพงแอคทีฟ LD System ICOA 12A BT แบบมีกำลังขยายในตัว เป็นลำโพงแบบ Full Range ขนาดดอกลำโพง 12นิ้ว Coaxial มีกำลังขยาย 300 W RMS, 600 W Program, 1200 W Peak, 3-Band Parametric EQ + Delay, Multiband Limiter + Other Protections, Bluetooth 4.0 Audio Streaming

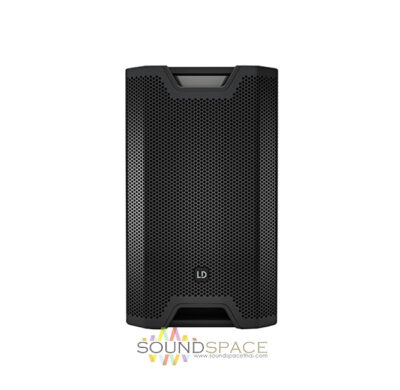

The LD-Systems ICOA 12 A is an active full-range speaker with a 12″ woofer and a 1″ HF driver. This speaker is a real all-rounder and offers a range of functions that is unique for its class. Thanks to its coaxial construction and rotatable, BEM-optimised CD horn, as well as the extensive and precisely tuned DynX DSP presets, the active 12″ loudspeaker is extremely versatile, but the full-range loudspeaker also impresses with its excellent sound in the low frequency range.
The excellent bass response of the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. DJs can also use it without a subwoofer. Vertically the speaker convinces as a satellite, horizontally in flown systems or as a floor monitor. Efficient Class D power amp delivers 126 dB max and 300 W RMS output
Enclosure Type |
Horn / Folded Horn Loudspeaker
|
Total Power Capacity |
1200 W Peak
600 W Program 300 W RMS |
Amplifier Class |
Class-D
|
HF Driver |
1 x 1″ / 25.4 mm Rotatable Horn Polymer Tweeter
|
HF Voice Coil |
1″ / 25.4 mm
|
LF Driver |
1x 12″ / 304.8 mm Woofer
|
Magnet |
Ferrite
|
Frequency Response |
50 Hz to 20 kHz
|
Maximum SPL |
126 dB
|
Coverage Angle |
90° H x 50° V (Rotatable Horn)
|
Protections |
Overcurrent, Overvoltage, Thermal
|
Audio I/O |
2x Combo XLR-1/4″ TRS Female Balanced Mic/Line Input
1x 1/8″ / 3.5 mm TRS Female Unbalanced Line Input 1x XLR 3-Pin Male Balanced Line/Mix Output |
Bluetooth |
4.0
|
Wireless Range |
30′ / 9.1 m
|
Crossover |
2 kHz
|
EQ |
1x HF Shelf
1x MF Peak 1x LF Shelf |
Parametric EQ |
Yes
|
Dynamic Processing |
Compression, Multiband Limiter
|
Alignment Delay |
0 to 36.16 ms
|
Digital Signal Processing |
Delay, Voicing Modes
|
Maximum Sampling Rate |
48 kHz / 24-Bit
|
AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V) |
AC Power I/O |
1x IEC
|
Power Consumption |
150 W
|
Mounting |
1 x 1.42″ / 36 mm Pole Socket (Dual Angle, Bottom)
6 x M10 Fly Point |
Mounting/Monitor Angle |
55° (As Floor Wedge/Monitor)
|
Handles |
1x Top
1x Bottom 1x Each Side |
Construction Material |
Polypropylene, Steel
|
Operating Conditions |
32 to 104°F / 0 to 40°C up to 80% Humidity
|
Dimensions |
14.8 x 25 x 15.6″ / 375 x 635 x 396 mm
|
Weight |
43.9 lb / 19.9 kg
|
