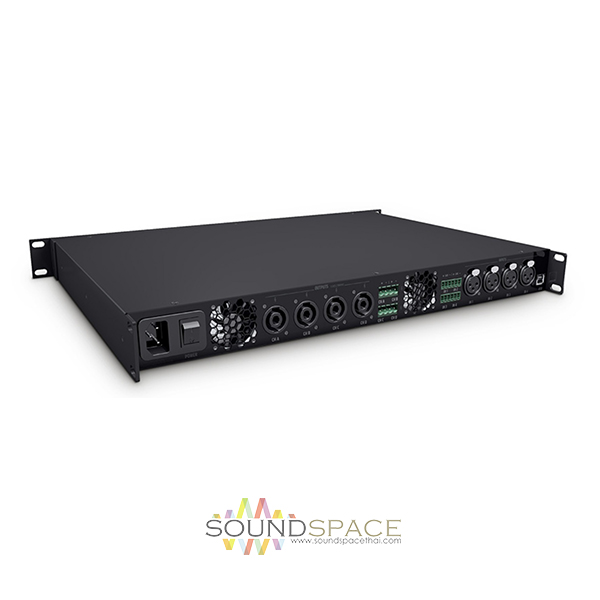

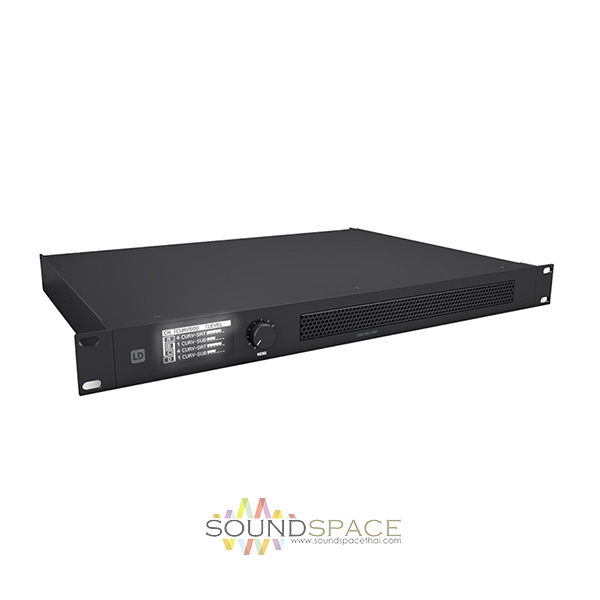

เพาเวอร์แอมป์ LD System CURV 500 I AMP 4-Ch Amplifier
เครื่องขยายเสียง LD System CURV 500 I AMP เป็นแอมป์แบบ 4 channels Class-D Amplifier with DSP control, มีกำลังขยาย 4 x 240 watt @ 4Ohms, High-contrast OLED display, Single push encoder operation, High-efficiency switch mode power supply
ราคาไม่รวมภาษีมูลค่าเพิ่ม….
฿54,400.00 ฿43,520.00
Description
LD System CURV 500 I AMP 4-Ch Class-D Amplifier with DSP control
เครื่องขยายเสียง LD System CURV 500 I AMP เป็นแอมป์แบบ 4 channels Class-D Amplifier with DSP control, มีกำลังขยาย 4 x 240 watt @ 4Ohms, High-contrast OLED display, Single push encoder operation, High-efficiency switch mode power supply
Purpose-designed for CURV 500® installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.

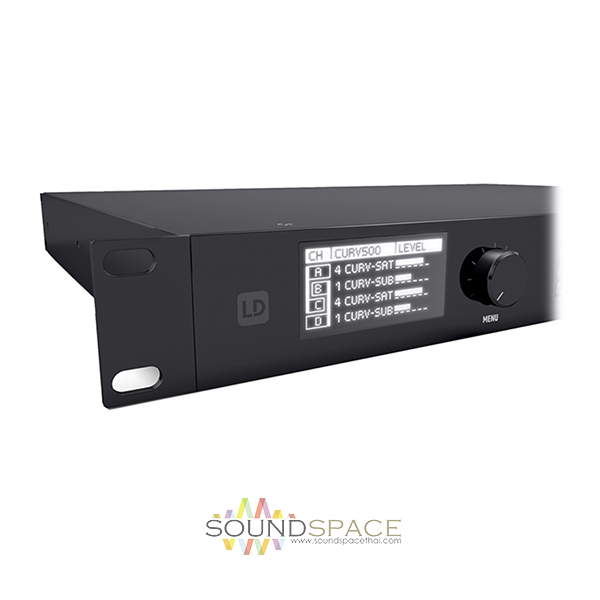

Operating the I AMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan.

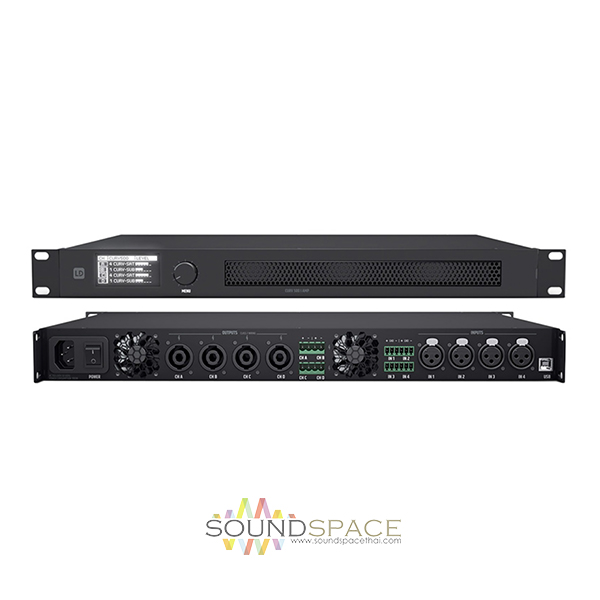

Input is on balanced XLR and terminal block connectors. The I AMP is capable of driving up to six CURV 500® satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.
Features:
- 4 channels with DSP control
- Purpose-designed for CURV 500® installations
- Low-profile 1U 19″ rackmount construction
- Drives up to six CURV 500® satellites or one CURV 500® ISUB subwoofer per channel
- Single push encoder operation
- High-contrast OLED display
- Temperature controlled low-noise fan
- High-efficiency switch mode power supply
- Only 6.8 kg
Specifications
| Product type | Power Amplifiers |
| Type | Installation Power Amplifiers |
| Rated ouput power (1kHz @ 2,7 Ohms) | 4 x 240 W |
| Rated ouput power (1kHz @ 4 Ohms) | 4 x 240 W |
| Rated ouput power (1kHz @ 8 Ohms) | 4 x 120 W |
| Rated ouput power (1kHz @ 16 Ohms) | 4 x 60 W |
| Output circuitry | Class D |
| Frequency response | 10 – 22000 |
| Total Harmonic Distortion (THD) | < 0,01 % |
| Protection circuits | DC, over-current, short circuit, soft start, thermal overload |
| Controls | Push encoder |
| Indicators | OLED Display |
| Line inputs | 4 |
| Line input connectors | Terminal block, XLR |
| Loudspeaker outputs | 4 |
| Speaker output connections | Speakon compatible, Terminal block |
| Cooling | temperature controlled low-noise fan, noiseless in idle mode |
| Operating voltage | Switching power supply |
| Power consumption @ full load | 1100W |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz, Switch mode power supply with power factor correction (PFC) |
| Width | 482 mm |
| Height | 44 mm |
| Depth | 420 mm |
| Weight | 6,8 kg |
