ชุดเครื่องเสียงเคลื่อนที่ LD System CURV 500 AVS Portable System AV Setๅ
ชุดเครื่องเสียงพกพาครบเซ็ท LD System CURV 500 AVS ประกอบด้วยลำโพงกลางแหลมขนาด 4 นิ้ว 2 ตู้, ลำโพงซับเบสขนาด 10 นิ้ว 1 ตู้, 4-Channel Mixer with 16 Digital Effects, Class-D Power Amplifier, Built-In Limiter, For mobile and fixed applications
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿79,300.00 ฿63,440.00
Description
LD System CURV 500 AVS Portable Array System AV Set
ชุดเครื่องเสียงพกพาครบเซ็ท LD System CURV 500 AVS ประกอบด้วยลำโพงกลางแหลมขนาด 4 นิ้ว 2 ตู้, ลำโพงซับเบสขนาด 10 นิ้ว 1 ตู้, 4-Channel Mixer with 16 Digital Effects, Class-D Power Amplifier, Built-In Limiter, For mobile and fixed applications

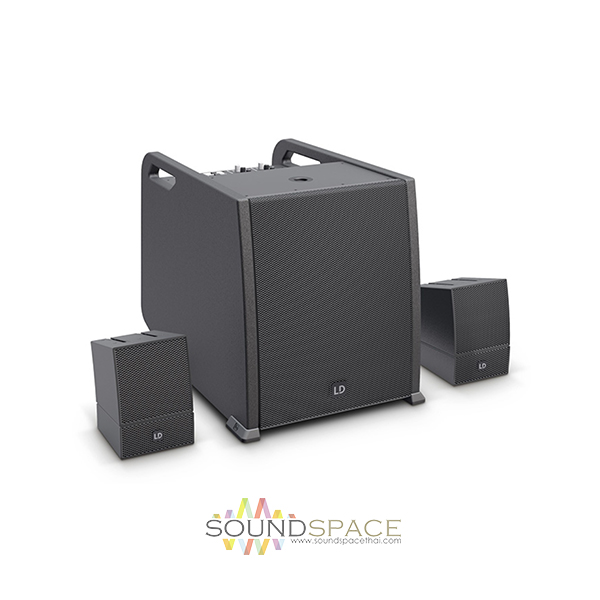

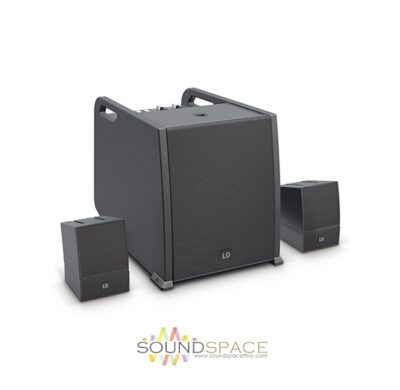

The black LD Systems CURV 500 AVS is a portable array system that includes two satellite speakers, a 10″ subwoofer, a 4-channel mixer with 16 digital effects, two speaker cables, and two SmartLink adapters. Featuring 380W RMS power, it can be used in sound reinforcement applications for bars, clubs, studios, in homes, and more.
The portable sound system has a Class-D power amplifier with a limiter that provides protection against short circuits and overloading. It also has a built-in 4-channel mixer with 16 digital-effect presets and uses modern Bluetooth technology. Furthermore, combo and speakON-compatible sockets offer extensive connectivity options, and the subwoofer has four digital system presets, an M20 threaded flange, and three ergonomic carrying handles.
In addition, the two satellites are operated via SmartLink adapters and are 4.7 x 4.7″ in size. Using LD System’s own WaveAhead technology, one 4″ and three 1″ drivers provide detailed audio playback. With optional wall and ceiling mounting systems (sold separately), the satellites can be installed anywhere where good sound and subtle appearance are required.
Features:
- The first truly portable array system
- Fully scalable for far and near field applications
- WaveAhead® technology for high definition audio
- SmartLink® plug & play adapter for universal mounting options
- Built-in 4 channel mixer with DFX and Bluetooth® technology
- Durable lightweight aluminium unibody array elements
- For mobile and fixed applications
Specifications
| Speaker Configuration | 2 x 2-Way Loudspeaker with Subwoofer |
| Number of Input Channels | 4 |
| Amplifier Power Rating | 380 W RMS |
| Amplifier Class | Class-D |
| Impedance | 16 Ohms (per Speaker) |
| Enclosure Type | Bass-Reflex |
| HF Driver | 3 x 1″ / 25.4 mm |
| MF Driver | 1 x 4″ / 102 mm |
| Subwoofer Driver | 1 x 10″ / 25.4 cm |
| EQ | Yes |
| Effects | 16 x Preset (Factory) |
| Dynamic Processing | Multiband Limiter |
| Frequency Response | 47 Hz to 20 kHz |
| Maximum SPL | 116 dB (Continuous) 122 dB (Peak) |
| Coverage Angle | 110° H x 10° V |
| Protections | Overcurrent, Short Circuit, Thermal |
| Audio I/O | 1 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Mic/Hi-Z Input 1 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Mic Input 2 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Line Input 1 x 1/8″ / 3.5 mm TRS Aux Input 1 x XLR 3-Pin Male Balanced Line Output 1 x XLR 5-Pin (Signal Type Unspecified) Output 2 x speakON 2-Pole Speaker Output (1 Stereo Pair) |
| Wireless Connectivity | Bluetooth |
| Max Wireless Range | Bluetooth: 32.8′ / 10 m |
| Bluetooth | Yes |
| Pairing | Manual |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 900 W (Max) |
| Transport Options | 3 x Handle |
| Mounting | 2 x M6 Fly Point 2 x 0.63″ / 16 mm Pole Socket M20 Pole Socket |
| Construction Material | Aluminum, Metal Grille, Plywood |
| Environmental Protection | None |
| Dimensions | Subwoofer: 13 x 15 x 19″ / 325 x 383 x 491 mm Assembly Hardware: 4.5 x 2.2 x 4.5″ / 122 x 57 x 122 mm Speaker: 4.8 x 4.8 x 4.8″ / 122 x 122 x 122 mm (Each) |
| Weight | Assembly Hardware: 1.3 lb / 0.6 kg Speaker: 3.7 lb / 1.7 kg (Each) Subwoofer: 36.4 lb / 16.5 kg System: 48.5 lb / 22 kg |
