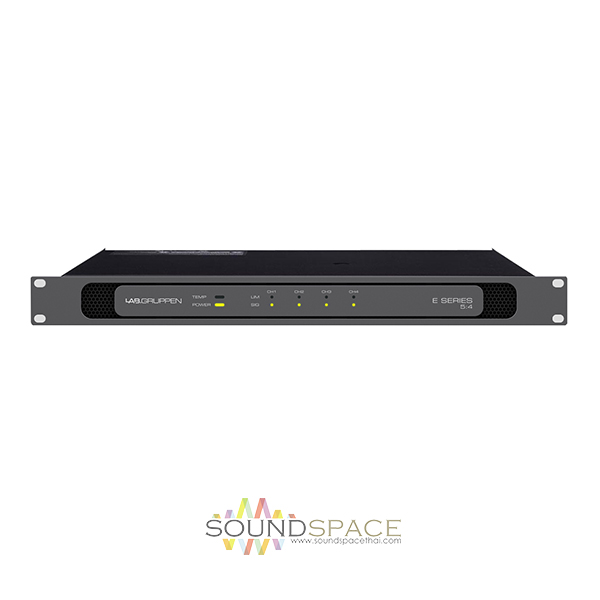

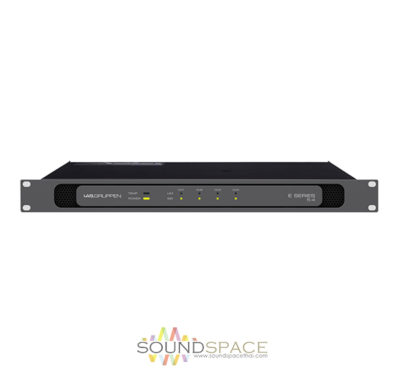

เพาเวอร์แอมป์ LAB GRUPPEN E5:4 Power Amplifier
เครื่องขยายเสียง LAB GRUPPEN E-Series E5:4 4 x 125 วัตต์ 1U Asymmetric loading – Allows “mixing and matching” of loads with different impedances, Flexible – IntelliDrive delivers similar power per channel at 70 V and Lo-Z (2, 4, 8 and 16 ohms)
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿53,000.00 ฿45,000.00
Description
LAB GRUPPEN E5:4 E-Series 4 Ch Power Amplifier
เครื่องขยายเสียง LAB GRUPPEN E-Series E5:4 4 x 125 วัตต์ 1U Asymmetric loading – Allows “mixing and matching” of loads with different impedances, Flexible – IntelliDrive delivers similar power per channel at 70 V and Lo-Z (2, 4, 8 and 16 ohms)
The E5:4 from Lab Gruppen has smart green credentials delivering low lifetime cost of ownership
Small in size, huge in benefits
Building on Lab.gruppen’s touring reputation for sonic excellence and rock-solid durability, E Series brings a competitive edge to the installation market by adding ultra-compact size, high operating efficiency, output configuration flexibility, and an unprecedented cost-benefit ratio.
At the heart of E Series is Lab.gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology. Based around a patented Class D variant output stage, IDEEA produces high power levels with very low distortion while drawing minimal mains current.
Lab.gruppen’s proprietary Rail Sensing Limiter (RSL™), also exclusive to E Series, greatly reduces signal clipping to ensure high quality audio output at all times. User configurable for Hi-Z (70 V) or Lo-Z, RSL senses rail voltages and optimizes each output for instantaneous load conditions. RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency. Total available output power can be allocated among the channels as required by the application. This makes it possible, for example, to drive a small sub on one channel, a number of 70 V ceiling loudspeakers on the second channel, and a pair of full-range low impedance loudspeakers on the two remaining channels.
Lab.gruppen performance with Energy Star compliance
Lab.gruppen’s IDEEA architecture secures full Energy Star compliance by combining net operating efficiency of greater than 80% with an auto-power-down feature. After 20 minutes with no input signal, the amplifier automatically switches to standby mode – with consumption of less than 1 W – and switches back on when an input signal returns. GPIO facilities enable third-party systems to remotely control and monitor power state via contact closure.
Features:
- High power density – 4 x 125 W in 1U
- Certified Energy Star compliant
- Flexible – IntelliDrive delivers similar power per channel at 70 V or Low-Z (4, 8 and 16 ohms)
- Asymmetric loading – Allows “mixing and matching” of loads with different impedances to maximize both overall system efficiency and inventory utilization
- IDEEA™ output stage based on patented Class D variant
- Exceptionally low lifetime operating costs
- High efficiency – Extremely low power consumption and heat output
- Auto-standby function – Power consumption < 1 W in standby mode
- RSL switch – Innovative circuit senses rail voltage and optimizes output for instantaneous load conditions
- Efficient cooling – Dual temperature-controlled fan
- Comprehensive circuit protection and fault indication
Specifications
| Model | E 5:4 |
| General | |
| Number of amplifier channels | 4 |
| Total output all channels driven | 500 W |
| Peak output voltage per channel | 100 V / 70 Vrms |
| Max. output current | 9.9 Arms |
| Max output power (all channels driven) | |
| 2 ohms | N.R. |
| 4 ohms | 125 W |
| 8 ohms | 125 W |
| 16 ohms | 125 W (requires the “70 V” mode for the RSL, “Lo-Z” gives 63 W) |
| 70 V | 125 W |
| 100 V | Can deliver 125 W to a 100 V load tapped at 250 W |
| Performance | |
| THD 20 Hz – 20 kHz at 1 W | <0.1% |
| THD at 1 kHz and 1 dB below clipping | <0.05% |
| Signal to Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | > 70 dB |
| Frequency Response | 2 Hz – 40 kHz |
| Input impedance | 20 kOhm |
| Common Mode Rejection (CMR) | 50 dB |
| Output impedance | 25 mOhm |
| Gain, Sensitivity and Limiters | |
| Limit and gain switch defining limit and gain (per channel) | 2 pos: Lo-Z and 70 V |
| VPL for 70 V mode | 100 V |
| VPL for Lo-Z mode | 44.7 V |
| Sensitivity for stated power into 8 Ohm in Lo-Z mode | 4 dBu |
| Sensitivity for 70.7 V out in 70 V mode | 4 dBu |
| Sensitivity for stated power into 4 Ohm in Lo-Z mode | 1 dBu |
| Sensitivity for stated power into 16 Ohm in 70 V mode | 0 dBu |
| Gain in 70 V mode | 35.2 dB |
| Gain in Lo-Z mode | 28.2 dB |
| Level adjustment (per channel) | Rear panel potentiometer, from -inf to 0 dB |

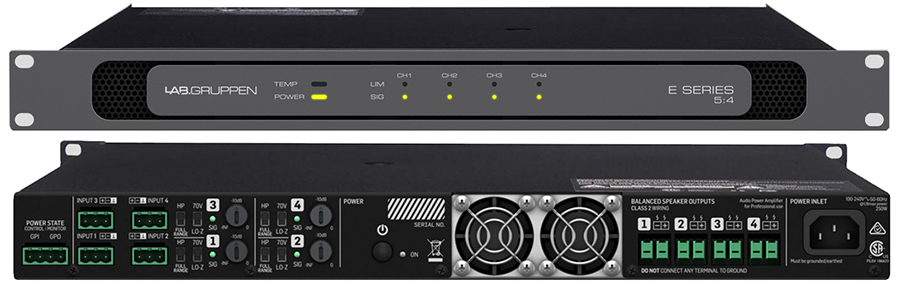

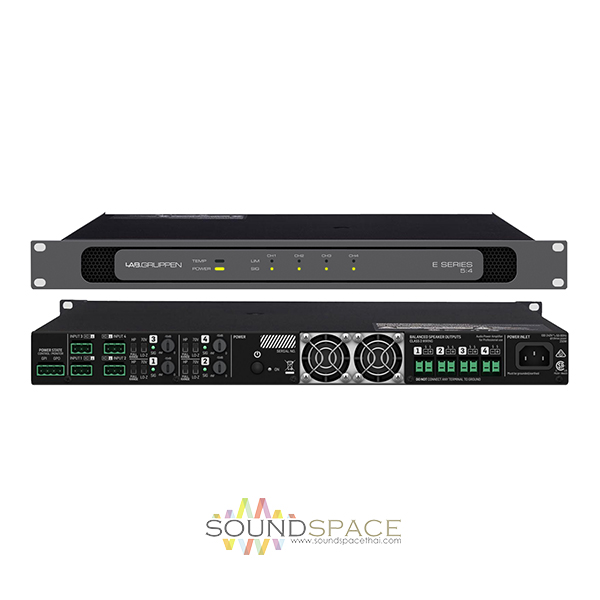

| Connectors and Switches | |
| Input connectors (per ch.) | 3 – pin detachable screw terminals, electronically balanced |
| Output connectors (per ch.) | 2 – pin detachable screw terminals |
| High pass filter | Fixed at 50 Hz, switchable per channel |
| Power control | Can be used to go between standby and ON |
| GPI (power control input) | Contact closure type, 2-pin detachable screw terminal, controls the power state |
| GPO (power state output) | Contact closure type, 2-pin detachable screw terminal, for external monitoring of the power state |
| Cooling | Two fans, front-rear airflow, temperature controlled speed |
| Power | |
| Nominal voltage | 100 – 240 VAC |
| Operating voltage | 85 – 265 VAC |
| Standby consumption | <1 W |
| Mains connector | IEC inlet |
| Dimensions | |
| Dimensions | W: 483 mm (19”), H: 44 mm (1 U), D: 381 mm (15”) |
| Weight | |
| Weight | 6 kg (13.2 lbs) |
| Finish | |
| Finish | Dark grey aluminum front and black steel chassis |
| Approvals | |
| Approvals | CE, ANSI/UL 60065 (ETL), CSA, CCC, PSE, Energy Star |
Data Sheet
ดาวน์โหลด Quick start guide เพาเวอร์แอมป์ LAB GRUPPEN E5:4
ดาวน์โหลด All Document เพาเวอร์แอมป์ LAB GRUPPEN E5:4
