ตู้ลำโพงซับวูฟเฟอร์แบบไม่มีกำลังขยายในตัว JBL VPX718S ขนาดดอกลำโพง 18 นิ้ว JBL 2044G woofer ทนกำลังขับ 500 วัตต์/1000 วัตต์/2000 วัตต์ 2 hrs (Continuous/Program/Peak), Nominal Impedance 4 Ohms, ตอบสนองความถี่ 45 Hz – 200 Hz
฿43,400.00 ฿26,900.00
ตู้ลำโพงซับวูฟเฟอร์แบบไม่มีกำลังขยายในตัว JBL VPX718S ขนาดดอกลำโพง 18 นิ้ว JBL 2044G woofer ทนกำลังขับ 500 วัตต์/1000 วัตต์/2000 วัตต์ 2 hrs (Continuous/Program/Peak), Nominal Impedance 4 Ohms, ตอบสนองความถี่ 45 Hz – 200 Hz

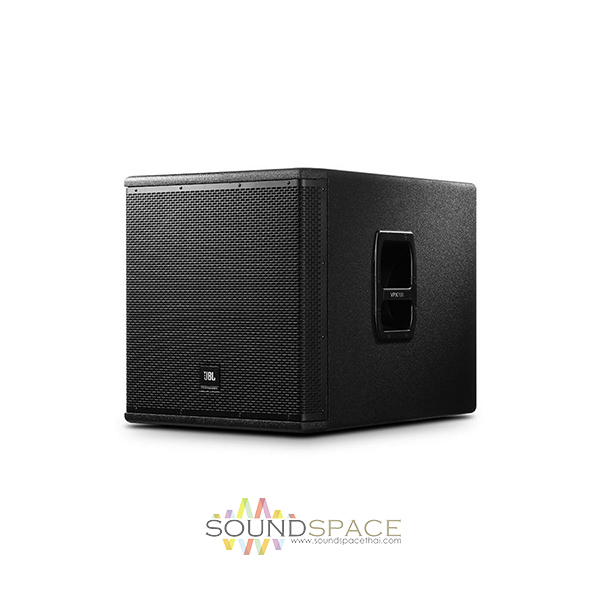

JBL VPX718S is an 18” high power subwoofer system designed for live music, speech and pre-recorded applications and for use with full-range satellite speakers.

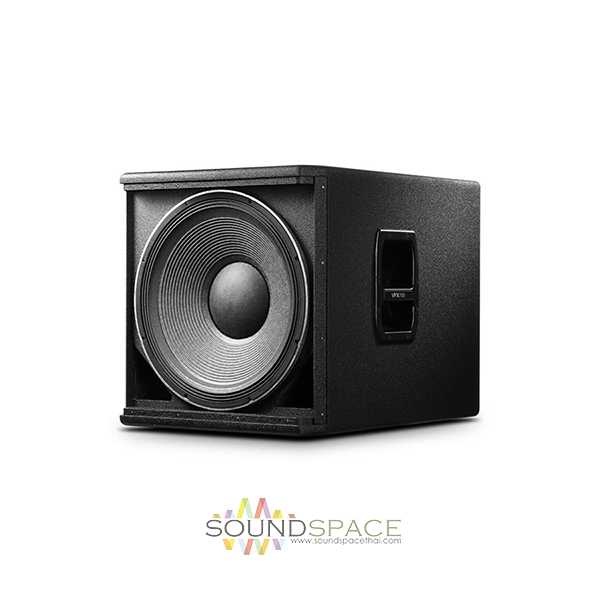

VPX718S uses an 18” (457mm) JBL 2044G woofer in a front vented enclosure to reproduce low bands with extended frequency response and low distortion, and to stand continuous power up to 500Watts.
The subwoofer system offers compatibility with a variety of cabling schemes. A pair of Neutrik® Speakon® NL-4 connectors are provided and are shipped with pins +1/-1 connected to the woofer. To meet different cabling requirements, the woofer can also be re-configured to work through pins +2/-2.
VPX718S is equipped with a 35 mm socket for installation of a full range satellite speaker weighting up to 50 kg (110 lbs). Two handles are provided for easy transit and set-up of the subwoofer. Its enclosure is made from premium plywood, finished in rugged DuraFlex™ coating and braced to maximize low frequency performance. The CNC-machined 16-gauge steel grille is backed with acoustically transparent fabrics to provide additional driver protection and give a very professional appearance.
Frequency Range (-10 dB) | 40 Hz – 200 Hz |
Frequency Response (±3 dB) | 45 Hz – 200 Hz |
Input Connection Modes | Internally configurable, +1/-1 or +2/-2 |
Recommended Crossover | 80 Hz, 24 – 48 dB/octave |
Power Rating (Continuous/Program/Peak) | 500 W/1000 W/2000 W, 2 hrs 400 W/800 W/1600 W, 100 hrs |
Maximum SPL | 127 dB continuous (133 dB peak) |
Sensitivity (1w@1m) | 94 dB SPL; 100 dB SPL |
LF Driver | 1 × 18” (457 mm) JBL 2044G woofer |
Nominal Impedance | 4 Ohms |

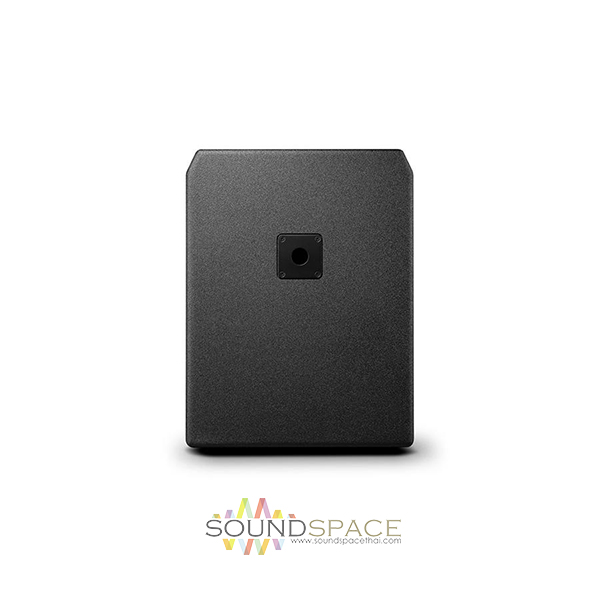

Mounting | Top mounted 35 mm socket for optional SS3-BK pole |
Enclosure | Rectangular, 18 mm, plywood |
Finish | Black DuraFlexTM finish |
Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing |

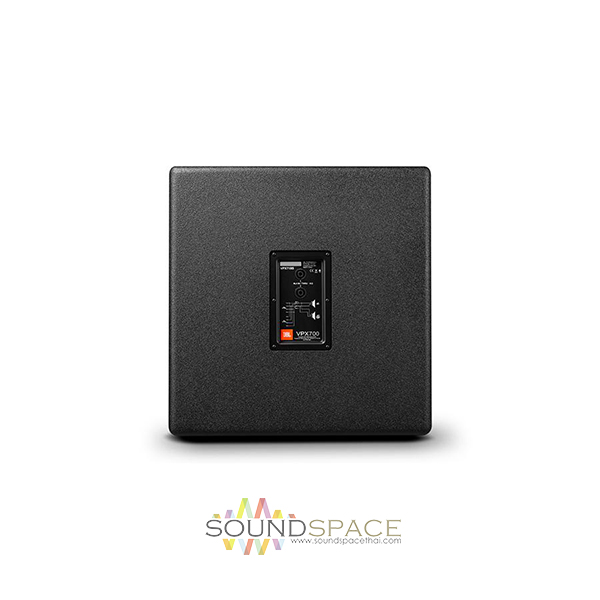

Input Connectors | 2 × Neutrik® Speakon® NL-4 |
Dimensions (H × W × D) | 548 mm × 533 mm × 700 mm (21.6 in × 21.0 in × 27.6 in) |
Net Weigh | 30.96 Kg (68.26 lbs) |
Optional Accessories | SS3-BK: Satellite speaker pole |
