ลำโพง JBL STX835 Passive Loudspeaker 2×15″
ตู้ลำโพงกลางแจ้ง JBL STX 835 ขนาดดอกลำโพง 15นิ้ว แบบ 23ทาง, ทนกำลังขับ 1,600W of Continuous / 3,200W Program / 6,400W Peak Handling, 4Ω Nominal Impedance, 60 x 40° Sound Coverage, Provides up to 134dB SPL, Neutrik Speakon NL-4 Input Connectors
ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…
฿190,900.00 ฿145,900.00
Description
JBL STX835 Three-Way Dual 15″ Slot-Loaded Speaker
ตู้ลำโพงกลางแจ้ง JBL STX 835 ขนาดดอกลำโพง 15นิ้ว แบบ 23ทาง, ทนกำลังขับ 1,600W of Continuous / 3,200W Program / 6,400W Peak Handling, 4Ω Nominal Impedance, 60 x 40° Sound Coverage, Provides up to 134dB SPL, Neutrik Speakon NL-4 Input Connectors

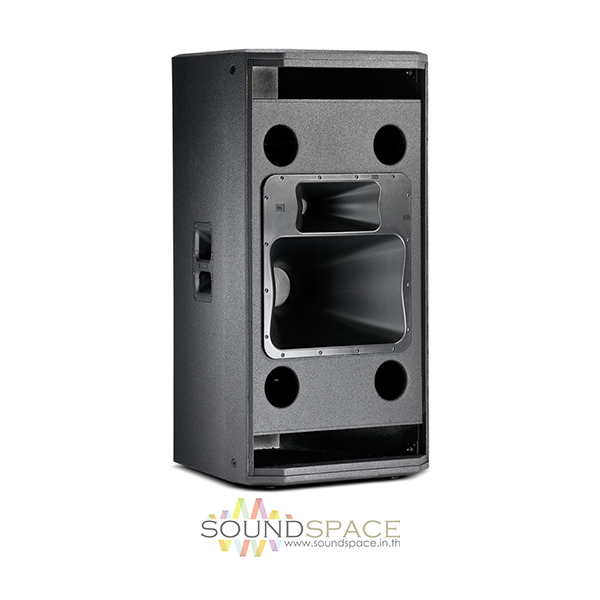

The STX835 Three-Way Dual 15″ Slot-Loaded Speaker from JBL incorporates the performance of a subwoofer-equipped system into a single enclosure. The dual slot-loaded 15″ Vented Gap Cooled woofers deliver thorough low-frequency extension without a sub. The mid-range is covered by JBL’s patented Cone Midrange Compression Driver technology using an 8″ driver. The CMCD design provides very low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence. The multiband, Progressive Transition waveguide assembly also hosts a 3″ voice coil compression driver.

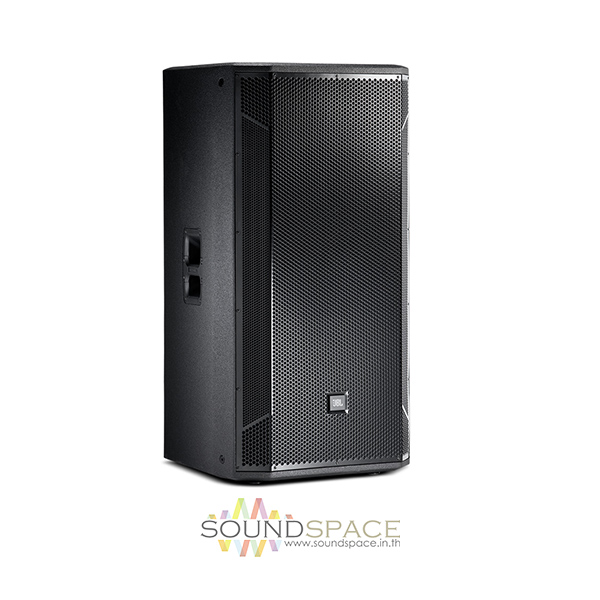

The waveguide assembly is rotatable for horizontal mounting of the enclosure. The enclosure is constructed of top quality birch/poplar laminate plywood and coated in JBL’s rugged DuraFlex finish. The CNC-machined, 14-gauge steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference.
The grilles are internally lined with acoustically transparent foam to provide additional driver protection and give a professional appearance. The enclosure is fitted with twelve M10 suspension points.
Features:
- (15 in.) Vented Gap Cooling™ low-frequency driver for extended low-frequency output.
- CMCD™ Cone Midrange Compression Driver™ provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence.
- 60°x 40° coverage.
- Bi-amplified or full-range passive operation.
- Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
- 14-Gauge steel grille lined with acoustically transparent cloth.
Specifications
| Active or Passive | Passive |
| Frequency Range | 32 Hz to 20 kHz (-10 db) |
| Frequency Response | 43 Hz to 20 kHz ±3 dB |
| Coverage Pattern | 60 x 00 ° nominal |
| Crossover Type | Bi-amp or passive, externally switchable |
| Crossover Frequency | 2 kHz, 250 Hz |
| Power Handling | Passive: 1,600W continuous 3,200W program 6,400W peakBi-amp LF: 1,600W continuous 3,200W program 6,400W peakBi-amp MF/HF: 350W continuous 700W program 1,400W peak |
| Maximum SPL | 134 dB SPL peak |
| Sensitivity | System: 96 dB SPL (1W @ 1 m) in passive mode Mid/High Sensitivity: 108 dB SPL (1W @ 1 m) in bi-amp mode |
| Low Frequency Driver | 2 x JBL 2226H 15″ (380 mm) Vented Gap Cooled woofer |
| Mid Frequency Driver | 1 x JBL CMCD-82H Cone Midrange Compression Driver with integral 2169H 8″ (200 mm) Differential Drive driver |
| High Frequency Driver | 1 x JBL 2432H 3″ (75 mm) voice coil, neodymium compression driver |
| Nominal Impedance | Passive: 4Ω Bi-amp LF: 4Ω Bi-amp HF: 8Ω |
| Enclosure | Trapezoidal, 0.71″ (18 mm) 13-ply birch/poplar laminate plywood |
| Enclosure Tuning | Designed for Crown amplifiers and dbx DriveRack |
| Mounting Options | 12 x M10 Suspension Points, rotatable waveguide |
| Handle or Carrying Type | 2 x side handles |
| Finish | Black DuraFlex finish |
| Grille | Powder coated, black, 14-gauge perforated steel with acoustically transparent charcoal foam backing |
| Input Connectors | 2 x Neutrik Speakon NL-4 |
| Dimensions (H x W x D) | 42 x 22.4 x 22.6″ (1,066 x 568 x 573 mm) |
| Weight | 126 lb (57.1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 145.0 lb |
