Sale
ลำโพงมอนิเตอร์ JBL STX 815M Stage Monitor 15″
ลำโพงมอนิเตอร์กลางแจ้ง JBL STX 815M ขนาด15″ 2ทาง floor monitor 800w Continuous/1600w Program
ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…
฿110,100.00 ฿82,900.00
Description

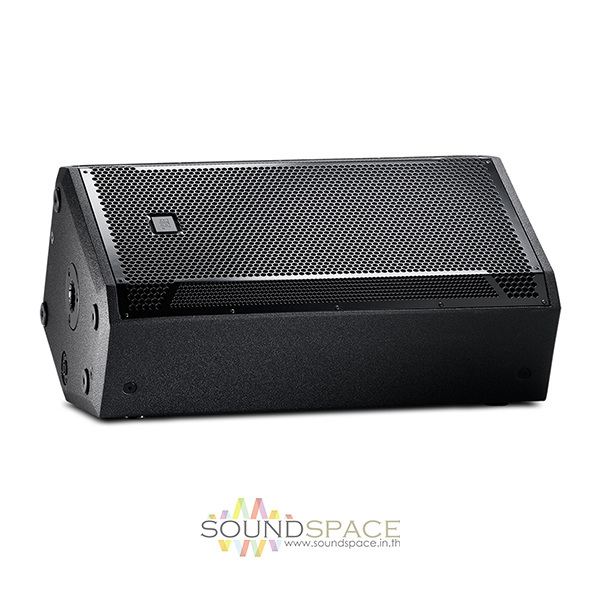

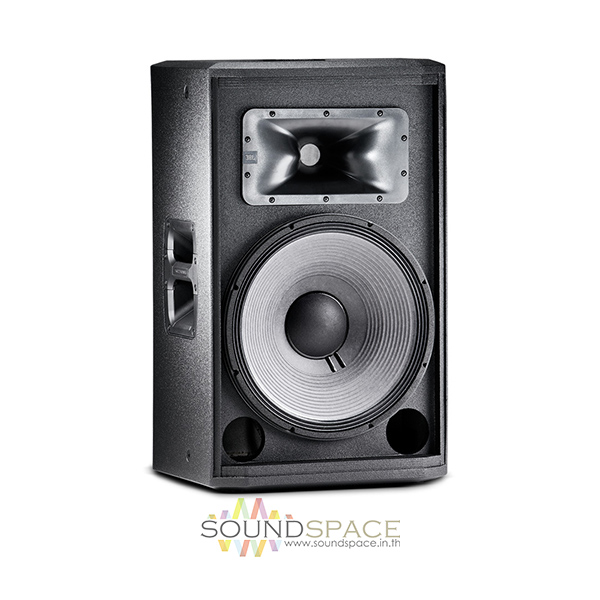

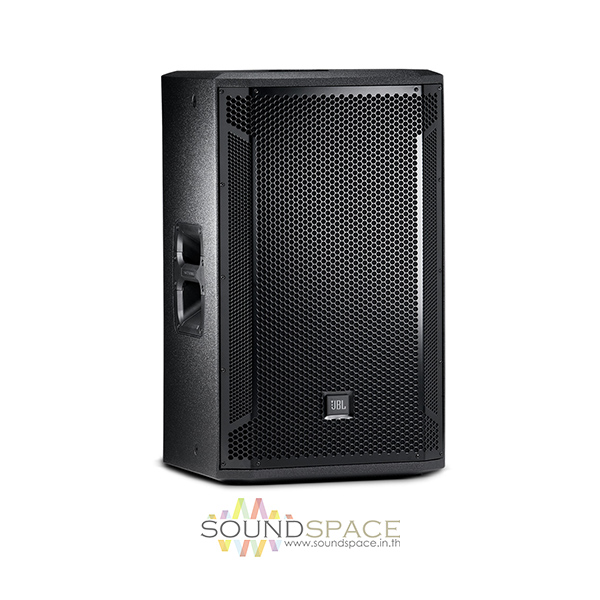

JBL STX 815M 15″ 2-Way Bass-Reflex Stage Monitor/Utility
ลำโพงมอนิเตอร์กลางแจ้ง JBL STX 815M ขนาด15″ 2ทาง floor monitor 800w Continuous/1600w Program
A single 15″ lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor, it offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.
Features:
- Compact and low-profile for minimal obstruction of audience sight-lines.
- 70°x 70° nominal coverage.
- Bi-amplified or full-range passive operation.
- Pole socket for applications requiring pole or tripod mounting.
- Twelve M10 suspension points.
- High power handling, low distortion Vented Gap Cooling™ LF driver.
- 3 in. (diaphragm) neodymium magnet compression driver.
- Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
- 14-Gauge steel grille lined with acoustically transparent cloth.
Specifications
| Frequency Range ( –10 dB) | 41 Hz-20 kHz |
| Frequency Response (± 3 dB) | 55 Hz-20 kHz |
| Coverage Pattern | 70˚ × 70˚ nominal |
| Sensitivity (1W/1m) | 96 dB |
| Power Rating | 800 W / 1600 W / 3200 W (Continuous/Program/Peak) |
| Rated Maximum SPL | 131 dB SPL Peak |
| Nominal Impedance | 8Ω |
| Input Connectors | Two NL4 |
| Operational Modes | Full Range/Bi-Amp |
| Dimensions (H x W x D) | 721 mm x 436 mm x 329 mm (28.4″ x 17.2″ x 13.0″) |
| Net Weight | 26 kg (58 lbs) |
