ตู้ลำโพงกลางแจ้งแบบ-มอนิเตอร์กลางแจ้งมีกำลังขยาย JBL SRX 835P ขนาดดอกลำโพง 15″ แบบ 3 ทาง มีกำลังขับ 2000 watt Peak Crown Drivecore Amp, ตอบสนองความถี่ที่ 41 to 20,000 Hz (-3 dB), Integrated DSP with Network Control, HiQnet Network Control
฿110,100.00 ฿89,900.00
ตู้ลำโพงกลางแจ้งแบบ-มอนิเตอร์กลางแจ้งมีกำลังขยาย JBL SRX 835P ขนาดดอกลำโพง 15″ แบบ 3 ทาง มีกำลังขับ 2000 watt Peak Crown Drivecore Amp, ตอบสนองความถี่ที่ 41 to 20,000 Hz (-3 dB), Integrated DSP with Network Control, HiQnet Network Control

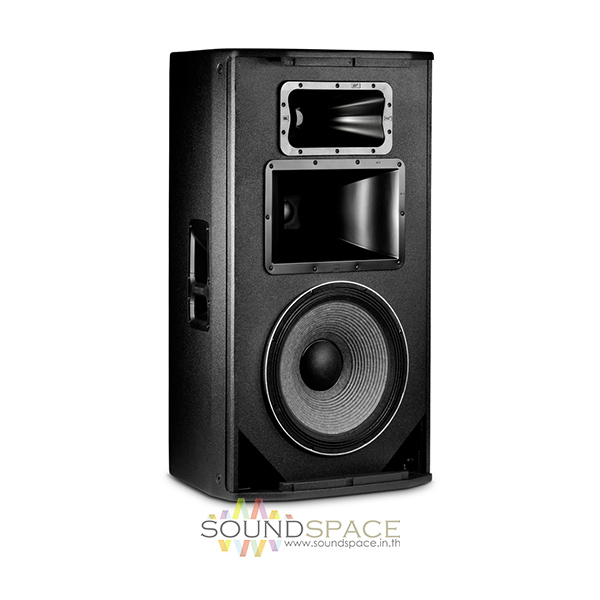

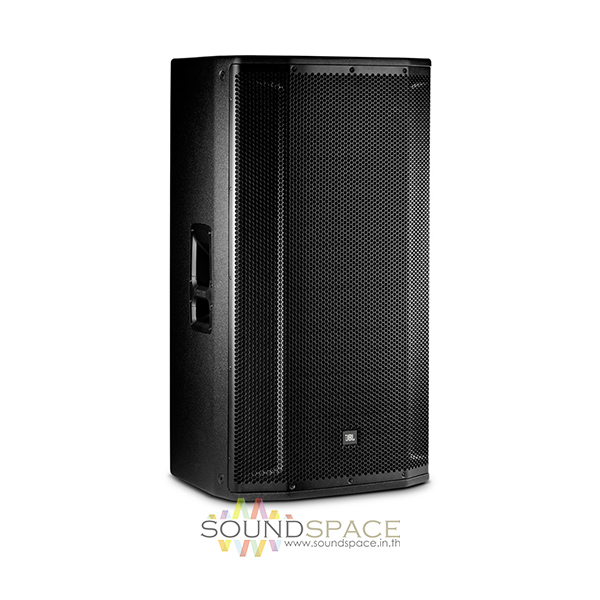

The JBL SRX835P 15″ Three-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 41 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 137 dB.

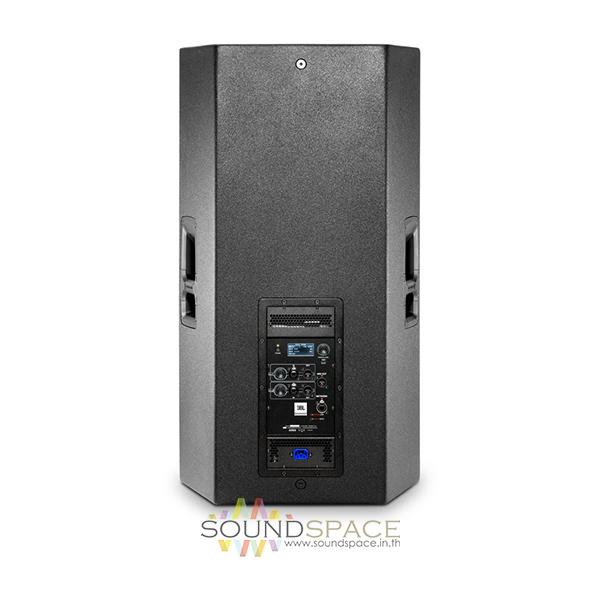

The rear panel of the speaker features a power button with LED indicator, a pair of balanced XLR/TRS combo input connectors, an LCD display screen with master encoder knob and back button for accessing presets, a pair of XLR-3M output connectors for sending to additional speakers, an XLR-3M mix output connector for sending audio out to an external source, and an Ethercon connector with LINK and DATA for network control via standard Ethernet cable to a third party router for iOS and Android mobile remote control.
Connectors | 2x Neutrik ¼ – XLR combo input 2x Neutrik XLR-3M Output 1 x XLR-3M mix output |
SPL | 137 dB |
Max SPL Level | 137 dB |
Frequency Response | 41 to 20,000 Hz (-3 dB) |
Coverage | 60° x 40° |
Amplifier | Class D |
Power Rating | 2000 W peak, 1500 W continuous |
Input Impedance | 40 kilOhm balanced 20 kilOhm unbalanced |
Maximum Line Input Gain | 21 dB |
Gain | Line input:21 dB Consumer input: 3 dB Mic input: 45 dB Line input: 20 dBu Consumer input: 8 dBu Mic input: -4 dBu |
LED Indicators | Power LED: green Network Link: green Network Data: yellow |
Cooling | On demand variable speed fan |
AC Power | 100 to 240 V at 50/60 Hz |
Power Consumption | 120 V: 2.2 A (1/8th power), 5.6 A (1/3rd power) |
Handles | 2 |
Crossover | 330 and 2,400 Hz |
Material | 0.7″ (18 mm) plywood |
Finish | Obsidian Duraflex finish |
Grille | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
Mounting | Single 36 mm pole socket 12x M10 suspension points |
Dimensions (L x W x H) | 38.74 x 21.4 x 18.74″ (98.40 x 54.40 x 47.60 cm) |
Weight | 85.0 lb (38.6 kg) |
Packaging Info | |
---|---|
Package Weight | 101.0 lb |
Box Dimensions (LxWxH) | 41.0 x 26.0 x 23.0″ |
