ตู้ลำโพงซับเบสกลางแจ้งแบบมีกำลังขยายในตัว JBL SRX 818SP/230 ขนาดดอกลำโพง 18″ มีกำลังขับ 1000 วัตต์ Peak, Class D Power Amplifier, ตอบสนองความถี่ 29 Hz to 150 Hz, Input Impedance 40 kHz balanced, 20 kHz unbalanced, Network Control
฿110,100.00 ฿89,900.00
ตู้ลำโพงซับเบสกลางแจ้งแบบมีกำลังขยายในตัว JBL SRX 818SP/230 ขนาดดอกลำโพง 18″ มีกำลังขับ 1000 วัตต์ Peak, Class D Power Amplifier, ตอบสนองความถี่ 29 Hz to 150 Hz, Input Impedance 40 kHz balanced, 20 kHz unbalanced, Network Control

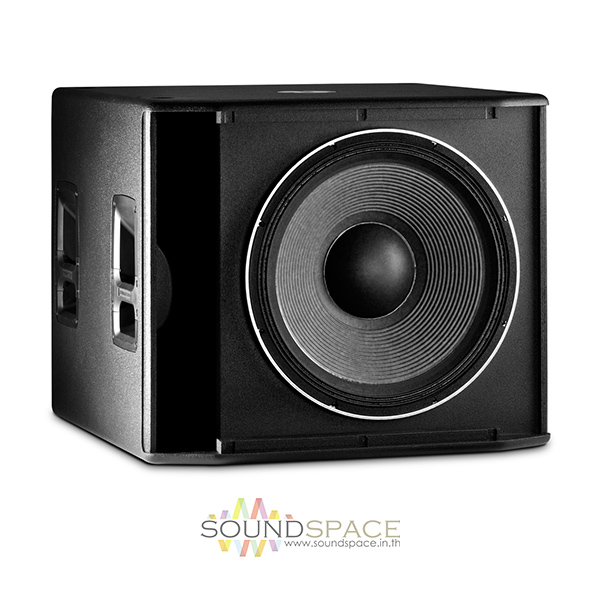

The SRX818SP from JBL is an 18″ subwoofer system featuring controllable DSP, ergonomically designed handles, and DriveCore technology to ensure that its 3″ voice coils can deliver a 1000W peak power rating. It offers a frequency range of 29 to 150 Hz and Class D amplification. The SRX818SP also provides HiQnet network integration, which allows you to automate the control interface via many compatible apps. Wired control can be achieved through Ethercon connections. Many localized controls are easily tweaked via the back-panel LCD screen, allowing you to access DSP presets without connection to networks.

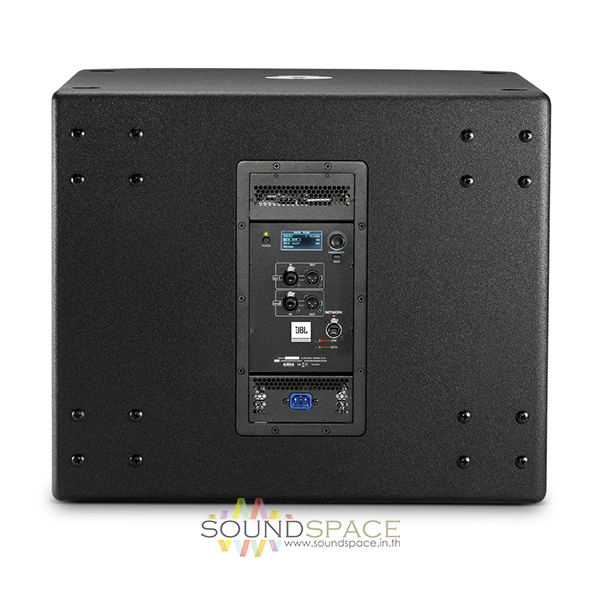

The system accepts inputs from both XLR and 1/4″ connection points, and outputs to male balanced XLR jacks. LED indicators for Power, Link, and Data notify you as to the unit’s present usage, making it clear whether or not the SRX818SP is on, linked to other speakers via the network, or sending/receiving information to/from other points of access.
This subwoofer system can be used for various purposes, including in live performance, mobile and fixed DJ systems, sound system rentals and tours, and permanent installations.
System Type | Self-powered 18″ / 46 cm system |
Max SPL Level | 135 dB |
Frequency Range | -10 dB: 29 to 150 Hz |
Frequency Response | -3 dB: 35 to 120 Hz |
Amplifier Class | Class D |
Power Rating | 1000 W peak |
Input Impedance | 40 kHz balanced, 20 kHz unbalanced |
I/O | Line input gain: 21 dB Line input level: 20 dBu Input connections: 2 x Neutrik XLR / 1/4″ Output connections: 2 x XLR |
LED | Power LED (green), Network Link (green,) Network Data (yellow) |
Cooling | On-Demand variable speed fan |
AC Power | 100 240 VAC, 50/60 Hz |
AC Power Consumption | 2.2 A (at 13% of power), 5.6 A (at 33% of power) |
Speaker | LF Driver: 2279F Crossover Frequency: 80 Hz |
Material | 0.7″ / 18 mm plywood |
Mounting | M20 threaded pole mount |
Handles | 4x |
Grille | 14-gauge perforated steel with acoustically transparent black-cloth backing |
Dimensions (H x W x D) | 22.6 x 26.9 x 26.9″ / 57.5 x 68.4 x 68.3 cm |
Weight | 87 lb / 39.5 kg |
Packaging Info | |
---|---|
Package Weight | 103.0 lb |
Box Dimensions (LxWxH) | 32.0 x 32.0 x 25.0″ |
