ลำโพง JBL PRX 712 Active Speakers 12″
ตู้ลำโพงกลางแจ้งแบบ-มอนิเตอร์กลางแจ้งมีกำลังขยาย JBL PRX712/230 ขนาดดอกลำโพง 12″ แบบ 2 ทาง 1500 watt Class-D amplifier
ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…
฿60,400.00 ฿44,900.00
Description

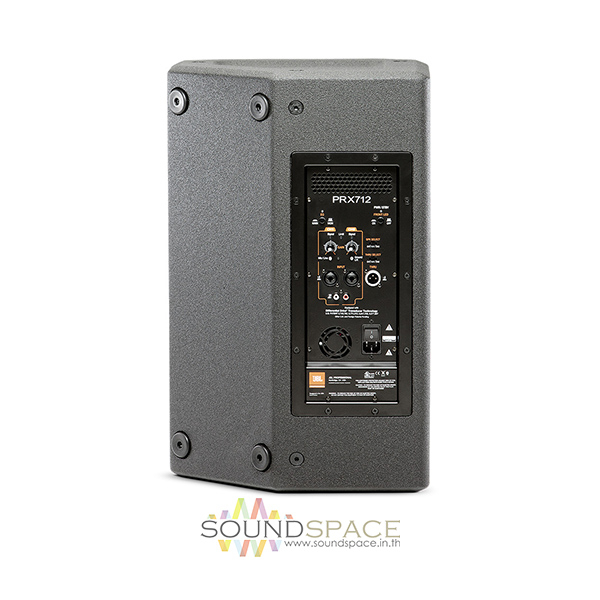

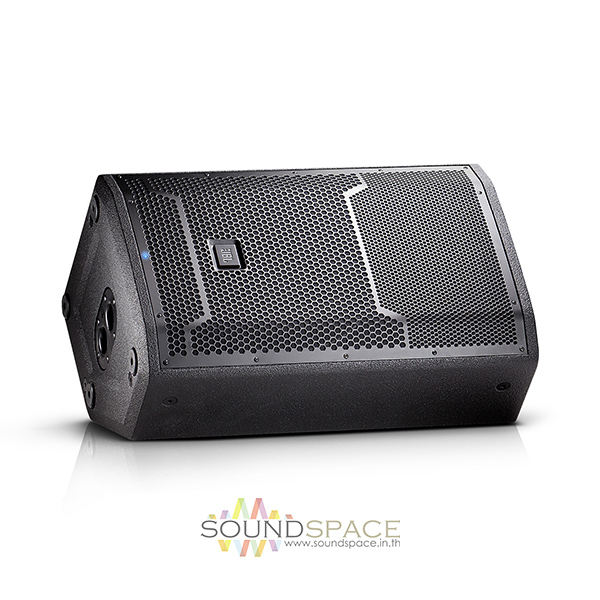

JBL PRX 712/230 12″ Two-Way Full-Range Main System/Floor Monitor
ตู้ลำโพงกลางแจ้งแบบ-มอนิเตอร์กลางแจ้งมีกำลังขยาย JBL PRX712/230 ขนาดดอกลำโพง 12″ แบบ 2 ทาง 1500 watt Class-D amplifier
The 12″ JBL PRX712 1500W Two-Way Multipurpose Self-Powered Speaker is designed to be a stage monitor or front of house PA for live sound reinforcement applications, such as concerts, schools, and houses of worship, among others. The speaker is built from poplar plywood with an obsidian DuraFlex finish using tongue and groove joinery for stronger bracing and less box vibration. It utilizes a 12″ low-distortion, low-frequency woofer, a wave-guided 1.5″ diameter neodymium compression driver, and a class-D amplifier to achieve a maximum SPL of 135 dB and a frequency response of 44.8 to 19,600 Hz.
Features:
- 135 dB peak SPL
- 12″ Differential Drive® low-frequency driver for low-distortion and higher SPL
- 5″ diameter next generation JBL neodymium compression driver
- JBL designed waveguide for accurate coverage
- Efficient Class-D amplifier technology
- Optimized EQ for monitor or front-of-house applications
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Line level and direct microphone input capability
- Professional XLR-1/4″ combination inputs, RCA inputs, and XLR loop-through
- Multi-angle enclosure for main PA or floor monitor applications
- Integrated 36 mm pole mount socket with angle down tilt
- Injection molded handle with backing cup for easy transport
- Integrated M10 suspension points for easy setup
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
- Cloth backed, dent-resistant 16 gauge steel grilles
Specifications
| Type | Active |
| Design | Bass reflex |
| Frequency Response | -10 dB main: 44.8 to 19,600 Hz -10 dB monitor: 44.8 to 19,500 Hz±3 dB main: 55.7 to 18,200 Hz ±3 dB monitor: 56.5 to 17,700 Hz |
| Coverage Pattern | 90° x 50° nominal |
| Directivity | Index: 10.2 dB Factor: 10.4 |
| Amplifier | Class D |
| Power Capacity | 1500 W (2 x 750) |
| Maximum Sound Pressure Level (SPL) | Normal: 135 dB Boost: 135 dB |
| Crossover | 1,800 Hz (DSP Active) |
| Input Impedance | 20,000 Ω (balanced) 10,000 Ω (unbalanced) |
| Low Frequency Driver | 1 x 12″ DifferentialDrive low-distortion, low-frequency woofer with ferrite magnet |
| High Frequency Driver | 1 x 1.5″ neodymium compression driver with annular polymer diaphragm and waveguide |
| DSP | Dynamic control: dbx type IV limiter circuit |
| Signal Indicator | Limit: yellow LED indicates peak output and active DSP limiting Signal: green LED indicates signal presence Power/standby: blue LED indicates powered Power/standby: red LED indicates power saving mode |
| Enclosure Material | Asymmetrical, 18 mm and 25 mm top and bottom poplar plywood with DuraFlex finish |
| Input Connections | 2 x combo balanced 3-pin XLR female and 1/4″ inputs 2 x unbalanced RCA inputs |
| Output Connections | 1 x balanced 3-pin XLR male output |
| Suspension Support | 12 x M10 suspension points |
| Mounting | Dual 36 mm pole socket |
| Transport and Storage | 1 x injection molded handle with backing cup |
| Dimensions | 24.11 x 15.14 x 13.44″ (612.40 x 384.60 x 341.40 mm) |
| Weight | 42.5 lb (19.4 kg) |
