ลำโพง JBL PRX 710 Active Speakers 10″
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL PRX710/230 ขนาดดอกลำโพง 10″ แบบ 2 ทาง 1500 watt Class-D amplifier
ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…
฿55,800.00 ฿39,900.00
Description

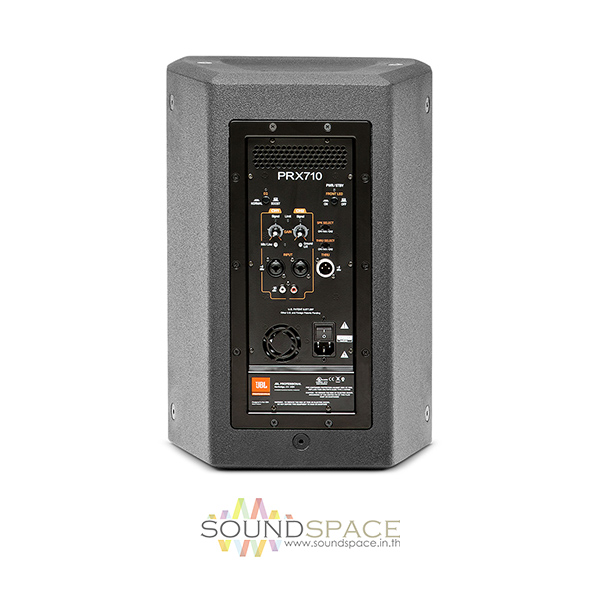

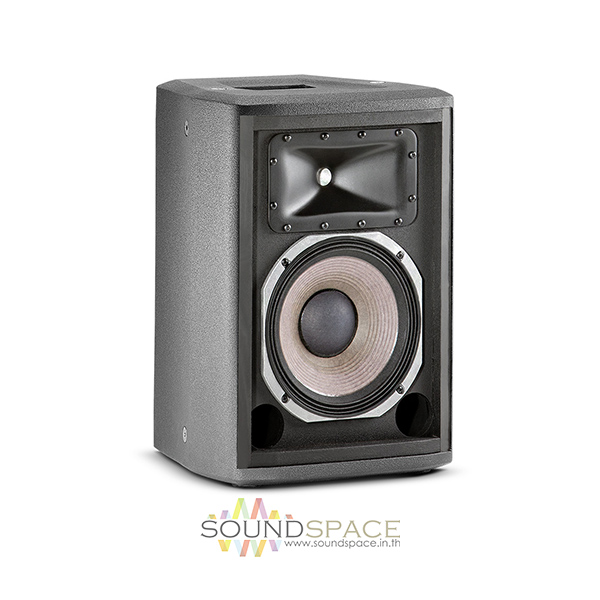

JBL PRX 710/230 10″ Two-Way Multipurpose Self-Powered Sound
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL PRX710/230 ขนาดดอกลำโพง 10″ แบบ 2 ทาง 1500 watt Class-D amplifier
The JBL PRX710 powered loudspeaker is where JBL’s fantastic line of PRX powered loudspeakers begins! It is a true 2-way powered speaker, with a custom-designed JBL M110-4 10-inch woofer cone and a JBL 2408H-2 1.5-inch diameter neodymium compression driver. The PRX710 handles 1500 watts of continuous power with an impressive maximum SPL of 133 dB. In normal use mode, these speakers have a frequency response of 63.5 Hz – 18.5 kHz. When you engage the Bass Boost, you’ll get a response of 53 Hz – 18.6 kHz. The PRX710’s size makes it perfect for PA applications in a small to midsize venues, and excellent as an onstage monitor in live performances.
Features:
- 133 dB peak SPL
- 10″ low-frequency driver for low-distortion and higher SPL
- 5″ diameter next generation JBL neodymium compression driver
- JBL designed waveguide for accurate coverage
- Efficient Class-D amplifier technology
- Normal and Boost user selectable EQ presets
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Line level and direct microphone input capability
- Professional XLR-1/4″ combination inputs, RCA inputs, and XLR loop-through
- Integrated 36 mm pole mount socket
- Integrated handle with injection molded backing cup for easy transport
- Integrated M10 suspension points for easy setup
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
- Cloth backed, dent-resistant 16 gauge steel grilles
Specifications
| Power Rating | 1500 W |
| AC Power Input | 100V – 240V~ 50/60 Hz |
| Frequency Range (-10 dB) | Normal: 50 Hz – 19.6kHz Boost: 42.9 Hz – 20kHz |
| Frequency Response (±3 dB) | Normal: 63.5 Hz – 18.5kHz Boost: 53 Hz – 18.6kHz |
| Coverage Pattern | 100° x 60° nominal |
| Directivity Index (DI) | 9 dB |
| Directivity Factor (Q) | 8 |
| Crossover Frequency | 1.9 kHz |
| Maximum SPL | 133 dB |
| Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio. |
| Dynamic Control (Input) | dbx Type IV™ limiter circuit |
| Input Impedance | 20K Ohms (balanced), 10K Ohms (unbalanced) |
| LF Driver | 1 x JBL M110-4 250mm (10 in) woofer |
| HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5″) annular polymer diaphragm, neodymium compression driver |
| Enclosure | Trapezoidal, 18 mm, plywood |
| Suspension / Mounting | single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point |
| Transport | 1 x integrated handle with injection molded backing cup |
| Finish | Obsidian DuraFlex™ finish |
| Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
| Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
| Output Connectors | 1 male XLR balanced output |
| Dimensions (H x W x D) | 498.7 mm x 335.6 mm x 322.3 mm (19.63 in x 13.21 in x 12.69 in) |
| Net Weight | 16.4 kg (36 lb) |
