ลำโพง JBL EON 515XT Active Speakers 15″
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL EON 515XT/230 ตัวตู้ทำด้วยไฟเบอร์ขนาดดอกลำโพง 15″ แบบ 2 ทาง 625 watt, Class-D digital amplifier
ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…
฿43,200.00 ฿29,900.00
Description

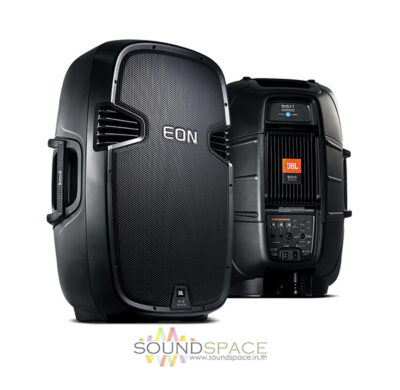

JBL EON 515XT/230 Portable Self-Powered 15″ 2-Way Bass-Reflex Design
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL EON 515XT/230 ตัวตู้ทำด้วยไฟเบอร์ขนาดดอกลำโพง 15″ แบบ 2 ทาง 625 watt, Class-D digital amplifier
The EON 515XT was engineered for durability, high performance and ease of use. We’ve extended the reach of the current EON technology by improving input sensitivity, lowering the noise floor, adding user selectable EQ control and re-voicing the system for peak performance and enhanced audio precision. The intuitive onboard 3-channel mixer with adjustable EQ assures that you’re in control of the sound and the sturdy construction and superior ergonomic design will guarantee a lifetime of reliability and simplicity.
Features:
• Highly designed composite enclosures for durability, lightweight, and precise acoustic performance
• True portability weighing only 14.8 kg (32.5 lb)
• Multiple handles with comfort rubber grips for easy transport
• Multi angle enclosure for main PA or floor monitor applications
• Integrated 36 mm pole mount socket with stabilizing securing screw
• Integrated M10 suspension points for easy fixed installation
• 100º H x 60º V asymmetrical wave guide for uniform audience coverage
• 1 5” Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
• 1” throat diameter next generation JBL neodymium compression driver
• Efficient Crown® Hybrid Class-D amplifier technology
• 625 watt high-performance powered speaker system

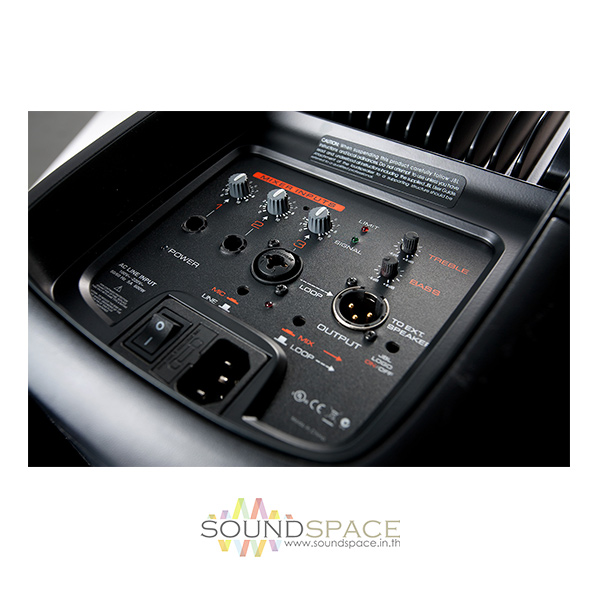

• Intuitive onboard 3-Channel Mixer
• Line level and direct microphone input capability
• User adjustable Bass and Treble controls
• Unique Mix/Loop signal flow function for extended system application
• Easy “Daisy-Chain” connections for extending the system
Specifications
| System Power Rating | 625 Watts (525 + 100) |
| Frequency Range (-10 dB) | 39 Hz -20 kHz |
| Dimensions (H x W x D) | 673 mm x 406 mm x 368 mm (26.5” x 16” x 14.5”) |
| System Type | Self powered 15”, two-way, bass-reflex |
| Maximum SPL Output | 132 dB |
| Frequency Response (±3 dB) | 42 Hz – 18 kHz |
| Input Connectors | 2 x 1/4” TRS phone jacks balanced/unbalanced 1 x XLR / 1/4” TRS combo jack with XLR loop through |
| Input Impedance | 14k ohms |
| Signal Indicators | Limit: Red LED indicates limiter active condition Signal: Green LED indicates signal present Mic: Indicates the MIC/LINE switch is in the “MIC” position EQ: Individual Bass and Treble controls, center detent, 6 dB cut and boost Bass +/- 6 dB (200 Hz turnover frequency) Treble +/- 6 dB (4 kHz turnover frequency) |
| Mic Input Gain | -Infinity to +40 dBu |
| Line Input Gain | -Infinity to +4 dBu (+18 dBu maximum input level) |
| Limiter | Yes |
| Amplifier Design | Crown® Class-D |
| LF Driver | 1 x JBL 265F-1 380 mm (15”) Differential Drive® integrated woofer with dual 2” voice coils |
| HF Driver | 1 x JBL 2414H 25.4 mm (1”) annular polymer diaphragm, neodymium compression driver |
| Coverage Pattern | 100º H x 60º V nominal |
| Crossover Frequency | 1.7 kHz |
| Material | Polypropylene, multi-purpose main & monitor |
| Suspension / Mounting | 36 mm pole socket with stabilizing screw, 5 x M10 suspension points |
| Handles | One left/right side, one on top, with rubber grip |
| Finish | Black Granite |
| Grille | Powder coated perforated steel with acoustically transparent cloth backing |
| Net Weight | 14.8 kg (32.5 lb) |
