ตู้ลำโพง JBL CV1252T Passive Loudspeaker System 12″

JBL CV1252T Full Range ลำโพงแบบไม่มีกำลังขยายในตัว 2 ทาง ออกแบบมาสำหรับร้านอาหาร ห้องประชุม ร้านกาแฟ เพลงโรงแรม ฯลฯ ขนาดดอกลำโพงวูฟเฟอร์ 12 นิ้ว, เสียงแหลม 2×3 นิ้ว, กำลังขับ 1200 วัตต์, ความต้านทาน 8 โอห์ม, ตอบสนองความถี่ 70 Hz – 15 kHz, มุมกระจายองศา 150 °× 120 °

ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ

฿16,000.00

สอบถามและสั่งซื้อสินค้า

Description

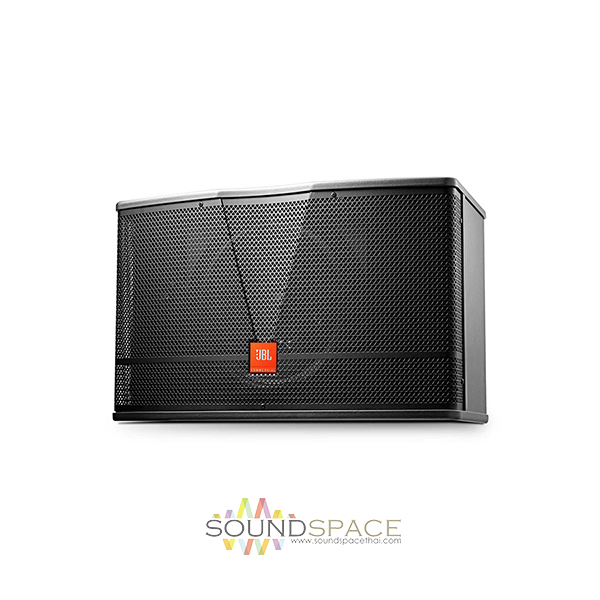

JBL CV1252T Passive Loudspeaker System 1200 W

JBL CV1252T Full Range ลำโพงแบบไม่มีกำลังขยายในตัว 2 ทาง ออกแบบมาสำหรับร้านอาหาร ห้องประชุม ร้านกาแฟ เพลงโรงแรม ฯลฯ ขนาดดอกลำโพงวูฟเฟอร์ 12 นิ้ว, เสียงแหลม 2×3 นิ้ว, กำลังขับ 1200 วัตต์, ความต้านทาน 8 โอห์ม, ตอบสนองความถี่ 70 Hz – 15 kHz, มุมกระจายองศา 150 °× 120 °

JBL CV1252T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

Features:

  • Specially designed12” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
  • Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
  • MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
  • Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
  • Built-in high quality multi-tap 70V/100V transformer
  • 150°×120°coverage pattern for even and smooth response on and off axis
  • Ideal for installations with limited ceiling height
  • Rotatable JBL COMMERCIAL logo for easy coherence to your installation
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
  • High-performance satellite speaker for use with subwoofers.

Specifications

System Type 12”, 2-way, bass-reflex
Frequency Range (-10 dB) 60 Hz – 18 kHz
Frequency Response(±3dB) 70 Hz – 15 kHz
Sensitivity(1W@1m) 92 dB
Nominal impedance 8Ω(at 8Ω tap setting)
Maximum SPL(1m) 117 dBcontinuous average (123 dB peak) (at 8Ωtap setting)
Power Rating (Continuous/Program/Peak) 300 W / 600 W / 1200 W(at 8Ω tap setting)
Coverage 150°×120° (H × V)
Transformer Tap 8 Ohms, 70 V (20 W / 40 W / 80 W / 160 W), 100 V ( 40 W / 80 W / 160 W)
Insert Loss <1.0 dB at any tap setting
Low-Frequency Diver 1 × 12” woofer
Hight-Frequency Diver 2 × 3” paper cone tweeter
Enclosure Trapezoid,15 mm MDF
Suspension 2 × M10 threaded suspension points
Exterior color Vinyl laminated, black. White(-WH) available upon request.
Net cover Powder coated, 1.0 mm perforated steel
Input Connector Dual RED/BALCK connector in parallel for loop-through.
Dimensions (H × W × D) 352 mm × 586 mm × 350 mm (13.9 in × 23.1 in × 13.8 in)
Weight 17.4 kg (38.4 lbs)
