ลำโพงติดฝ้าเพดาน JBL CONTROL 321CT Ceiling Loudspeaker 12″
ลำโพงติดฝ้าเพดาน JBL CONTROL 321CT ขนาดดอกลำโพง 12 นิ้ว Kevlar-reinforced cone with 2″ voice coil, Coaxial ceiling speaker with 1″ HF, Built-in 70V/100V multi-tap transformer; 7.5W/15W/30W/60W 70V taps, 15W/30W/60W 100V taps, ทนกำลังขับ 250-watt power
ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ…
฿34,500.00
Description
JBL Control 321CT Coaxial Ceiling Loudspeaker with HF Compression Driver 250 W
ลำโพงติดฝ้าเพดาน JBL CONTROL 321CT ขนาดดอกลำโพง 12 นิ้ว Kevlar-reinforced cone with 2″ voice coil, Coaxial ceiling speaker with 1″ HF, Built-in 70V/100V multi-tap transformer; 7.5W/15W/30W/60W 70V taps, 15W/30W/60W 100V taps, ทนกำลังขับ 250 วัตต์ power handling with high sensitivity and high SPL capability

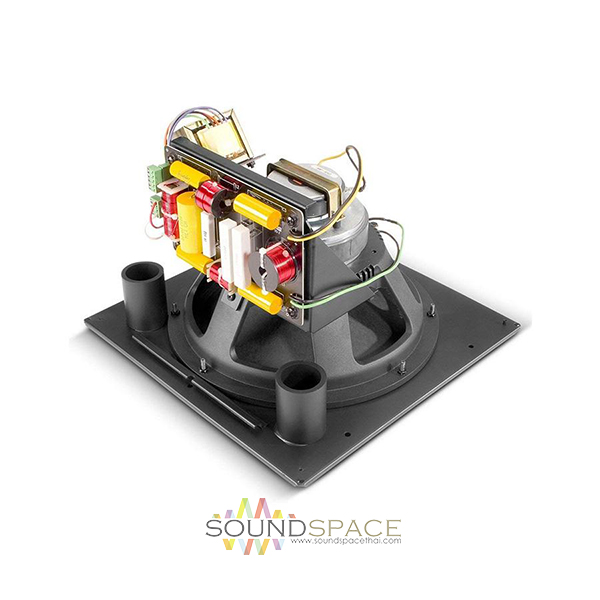

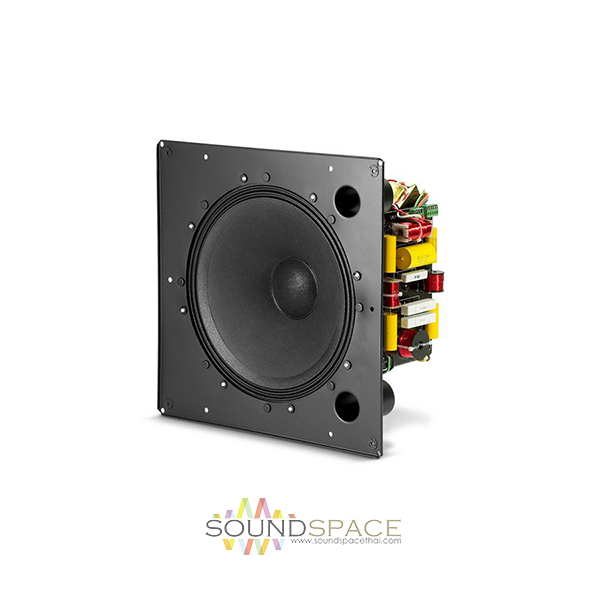

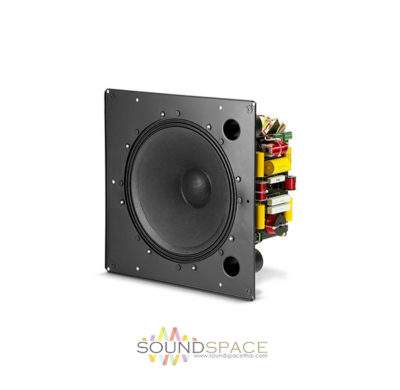

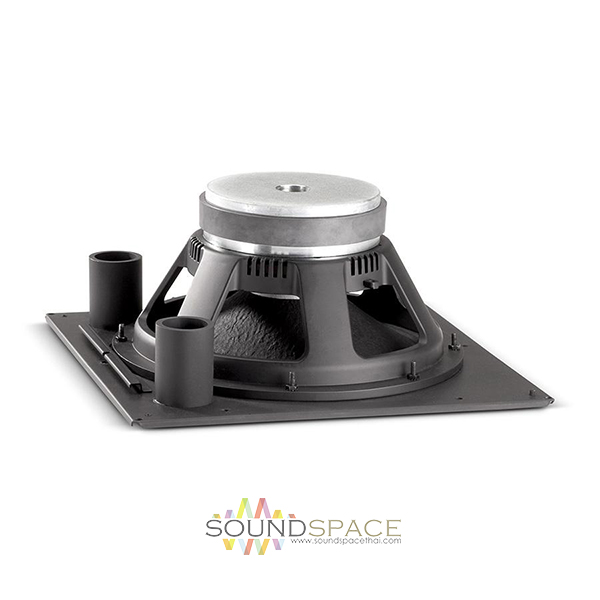

The JBL Control 321CT is a coaxial point source design ceiling loudspeaker, equipped with a built-in 70V/100V multi-tap transformer, and featuring a 12″ low frequency cone performing as a waveguide for the high frequencies. The unique metal throat provides seamless transition to the horn, eliminating any aberrant HF “beaming”, and resulting in consistent 90° coverage on a broadband basis with true coaxial behavior.
Features:
- Consistent 90° broadband pattern control.
- Components
• 300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-coil.
• 25 mm (1 exit) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
Specifications
| Frequency Response | 47 Hz – 16 kHz, +/-3dB (in ceiling) |
| Maximum Power Handling | 600 Watts |
| Impedance | 8 Ohms |
| SPL | 118dB avg., 124dB peak |
| Beamwidth | 90° conical, broadband (1kHz – 10kHz) |
| Horizontal Beamwidth | 90° conical, broadband (1kHz – 10kHz) |
| Vertical Beamwidth | 90° conical, broadband (1kHz – 10kHz) |
| Directivity | Factor: 8.7 (1kHz – 16kHz) Index: 9.4dB (1kHz – 16kHz) |
| Construction | Kevlar-reinforced cone woofer Titanium diaphragm compression driver with diamond surround and ferro-fluid cooling Ported Metal Baffle |
| Magnet | Saturated-gap geometry |
| Voice Coil | LF: 2″ HF: 1″ |
| Dimensions (HxWxD) | 14.4 x 14.4 x 9.5″ (366 x 366 x 240mm) |
| Weight | 18 lb (8.2 kg) |
