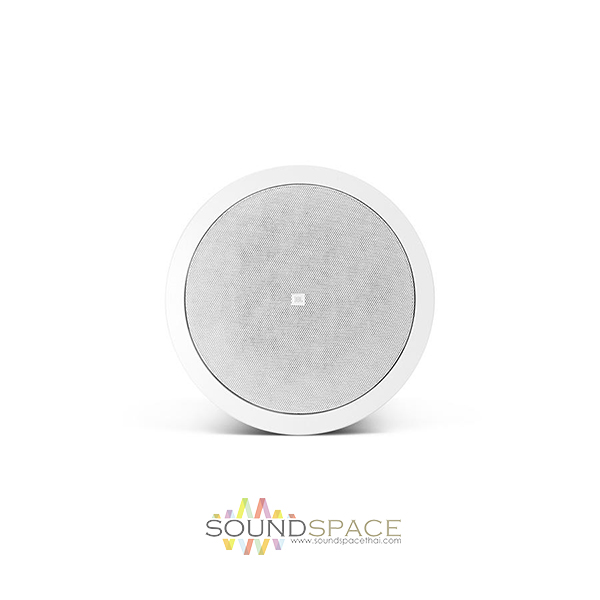

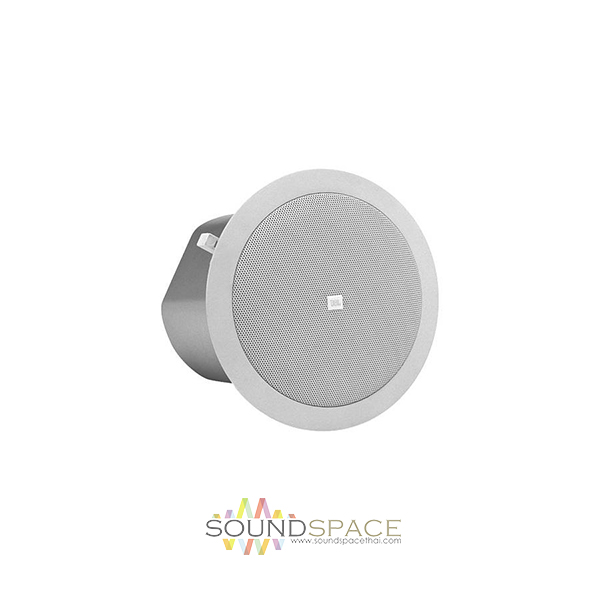

ลำโพงติดฝ้าเพดาน JBL Control 26CT Ceiling Speaker 6.5″
ลำโพงติดฝ้าเพดาน JBL Control 26CT เป็นลำโพงแบบ High-Output 2-Way Coaxial Speaker, มีขนาดดอดลำโพง 6.5 นิ้ว Woofer เสียงแหลม 0.75 นิ้ว Titanium-coated Polyester, ทนกำลังขับ 150 Watts, ตอบสนองความถี่ 75 Hz – 20 kHz (-10 dB), With Multitap Transformer for 70V/100V
ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ…
฿13,600.00
Description
JBL Control 26CT Ceiling Loudspeaker Transducer Assembly 150 W
ลำโพงติดฝ้าเพดาน JBL Control 26CT เป็นลำโพงแบบ High-Output 2-Way Coaxial Speaker, มีขนาดดอดลำโพง 6.5 นิ้ว Woofer เสียงแหลม 0.75 นิ้ว Titanium-coated Polyester, ทนกำลังขับ 150 Watts, ตอบสนองความถี่ 75 Hz – 20 kHz (-10 dB), With Multitap Transformer for 70V/100V Systems
The Control 26CT offers a very broad 110° area of coverage and is designed for longer, cooler operation, which allows for greater long-term power handling. A simpler and less-expensive install is achieved due to the coverage capability of the Control 26CT.
Features:
- 150 Watts power capability
- Multi-tap transformer for 70/100V systems
- 75 Hz to 20 kHz frequency range (-10 dB)

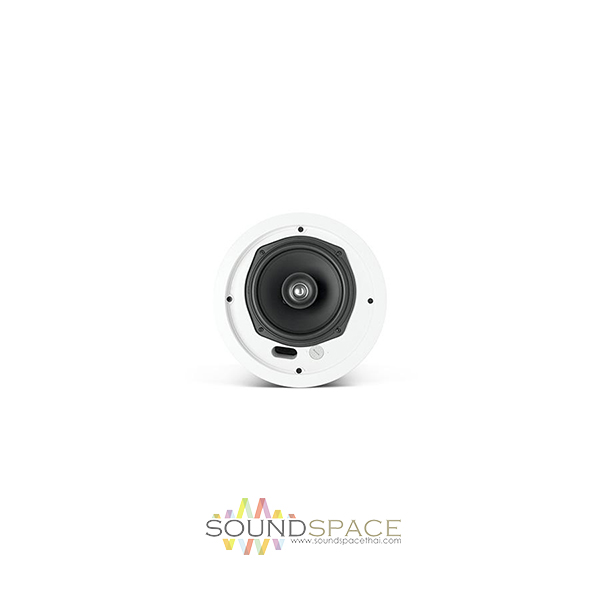

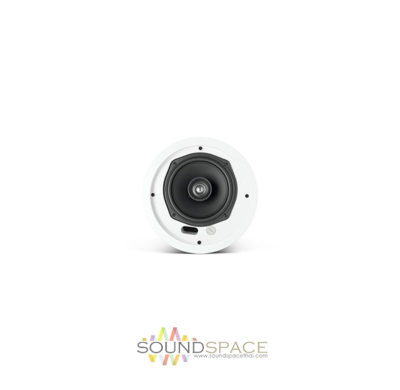

- Coaxially mounted 6.5″ woofer with butyl rubber surround and 3/4″ titanium coated diffraction-loaded tweeter
- High power, wide-frequency response and low distortion for high sound level capability
- Wide coverage allows for fewer speakers, reducing the cost of the installed sound system without sacrificing performance
Specifications
| Active or Passive | Passive |
| Frequency Response | 75 Hz to 20 kHz |
| Power Capacity | 150 W Program 75 W Pink Noise |
| Maximum Sound Pressure Level (SPL) | 107 dB @ 3.3 ft / 1 m |
| Nominal Sensitivity | 89 dB SPL, 1 W @ 3.3 ft / 1 m |
| Transformer Taps | 70 V Taps: 60, 30, 15, 7.5 W 100 V Taps: 60, 30, 15 W |
| Low-Frequency Driver | 6.5″ / 165 mm Polypropelene-coated, 1″ coil on aluminum former |
| High-Frequency Driver | 3/4″ / 19 mm Titanium coated polyester |

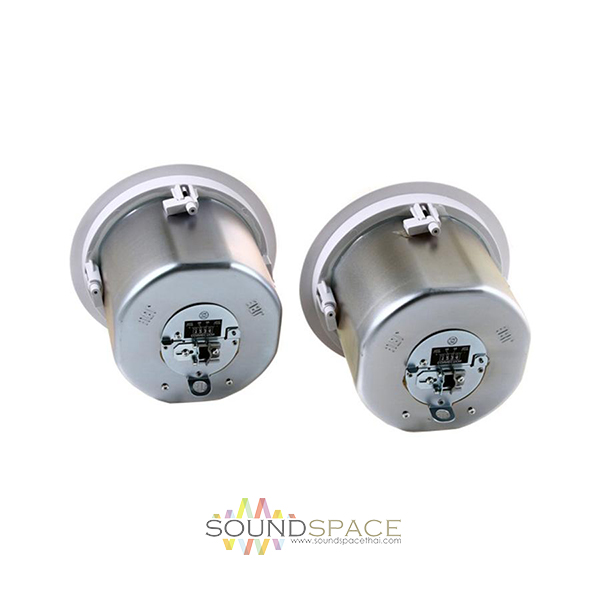

| Enclosure Material | Formed steel backcan with medium impact polystyrene baffle/rim, fire rated UL94V-0 |
| Input Connections | Removable locking connector with screw-down terminals 2 x input terminals and 2 x loop-thru output terminals Max. wire 12 AWG (2.5 mm²) |
| Environmental | In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per UL2043, UL1480, NFPA90, NFPA70A |
| Dimensions | 8.3 x 9.9″ / 210 x 252 mm 7.5″ / 190 mm front of ceiling tile to back of backcan |
| Weight | 7.5 lb / 3.4 kg each CT: 10 lbs / 4.2 kg each |
