ลำโพงติดฝ้าเพดาน JBL Control 12C/T Ceiling Loudspeakers 3″

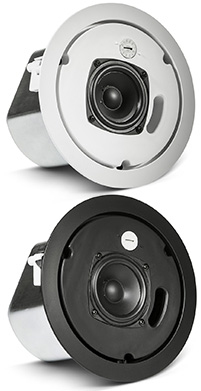

ลำโพงติดฝ้าเพดาน JBL Control 12C/T มีขนาดดอกลำโพง 3 นิ้ว full-range driver, ทนกำลังขับ 20 Watts at 8Ω nominal setting, 15W multi-tap at 70V/100V, 68 Hz to 17 kHz bandwidth with wide 130° coverage, Dual conduit/cable clamps, มี2สี ดำและขาว
ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ…
฿6,000.00
Description
JBL Control 12C/T 3″ Compact Ceiling Loudspeakers
ลำโพงติดฝ้าเพดาน JBL Control 12C/T มีขนาดดอกลำโพง 3 นิ้ว full-range driver, ทนกำลังขับ 20 Watts at 8Ω nominal setting, 15W multi-tap at 70V/100V, 68 Hz to 17 kHz bandwidth with wide 130° coverage, Dual conduit/cable clamps, มี2สี ดำและขาว
The Professional Series Control 12C/T 3″ Compact Ceiling Loudspeakers from JBL is designed to provide an enhanced sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more

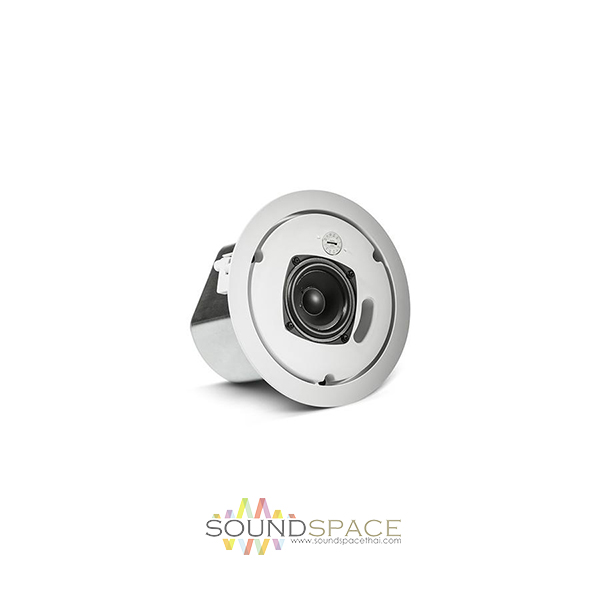

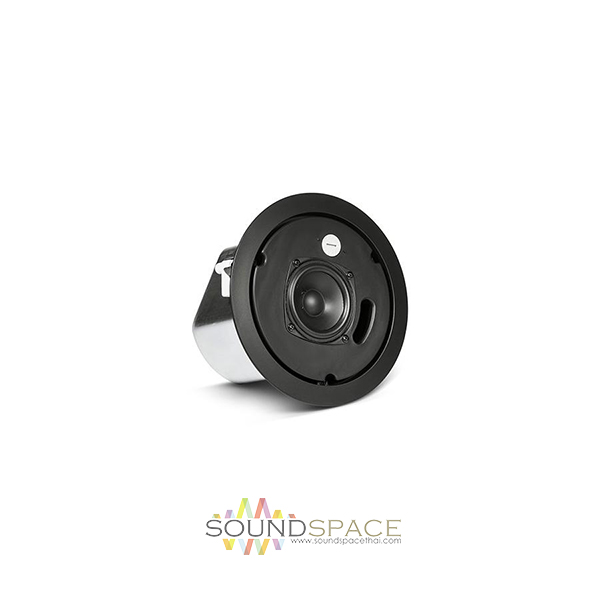

These full-range ceiling speakers consist of 3” (76mm) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV-resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation. The 130° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.
The high technology cone driver is designed with a lightweight high temperature Kapton voice coil former and aluminum coupling ring to reduce distortion and extend the high-frequency response of the system. The FEA-optimized motor construction and cone geometry allow for smooth frequency response and improved off-axis performance. A high temperature-grade voice coil ensures stable performance under long-term, high-power working conditions. The butyl rubber surround provides long-term durability and good sonic damping, and the polypropylene cone is water and humidity resistant.
The removable locking connector has screw terminals for secure wire termination and loop through terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit. The compact backcan extends only 5.4” (138mm) behind the baffle, allowing the speaker to fit into more shallow ceiling areas.

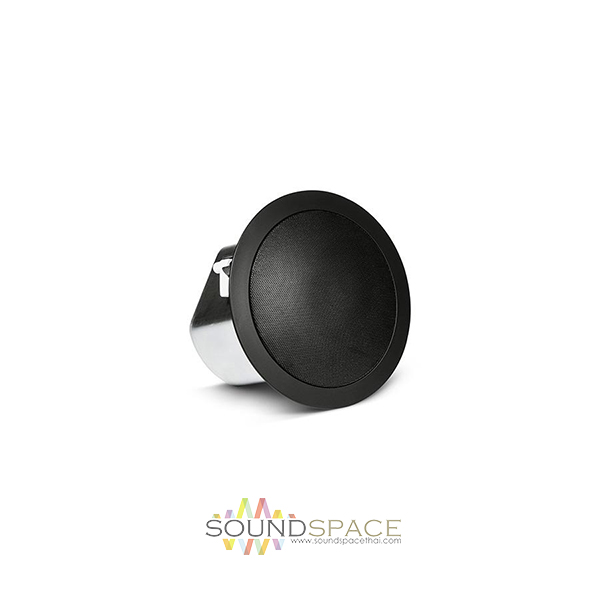

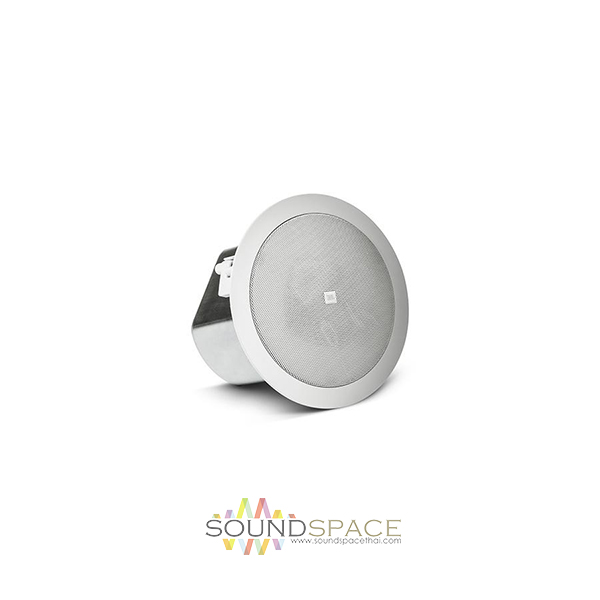

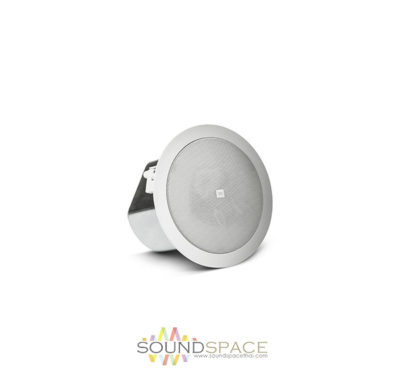

Suitable for a wide variety of projects, the Control 12C/T Loudspeakers are switchable for use as either 8Ω, low-impedance speakers or as part of a 70 or 100V distributed loudspeaker system with a 15W, multi-tap transformer. The speakers come complete with 2 tile rail supports, a C-ring support backing plate, cutout template, paint shield, and a grille. A safety seismic attachment ring is provided on the top surface.
Features:
- 3″ (76mm) full-range driver
- Blind-mount backcan for quick and easy installation
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation (20W at 8Ωnominal setting; 15W multi-tap at 70V/100V)
- 68 Hz to 17 kHz bandwidth with wide 130° coverage
Specifications
| Frequency Range | -10 dB: 68 Hz to 17 kHz |
| Frequency Response | ±3 dB: 95 Hz to 15 kHz |
| Power Capacity | At low-Z: 40W continuous program power 20W continuous pink noise (CPN) |
| Sensitivity | Nominal: 84 dB |
| Coverage Angle | Nominal: 130° conical coverage |
| Directivity | Factor Q: 9.8 Index DI: 7.4 dB |
| Sound Pressure | Rated Maximum Level: 97 dB @ 3.3′ (1 m) average, 103 dB peak |
| Nominal Impedance | 8 Ω (in direct/bypass 8 Ω setting) |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70 V only) |
| Full Range Drivers | 3″ (76 mm) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high-temperature voice coil, aluminum coupling ring for low distortion, and HF extension |
| Input Connector | Removable locking 4-pin connector with screw-down terminals Maximum Wire Size: 12 AWG (2.5 mm2) |
| Wiring | Connector: Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru |
| Strain Relief | Strain relief for 2 cables or 2 flex conduits via coupled clamping mechanism |
| Material | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating Zinc-plated steel backcan |
| Safety Agency Approvals | UL1480, UL2043, NFPA90, & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Ceiling Cutout Size | Circular cutout with 6.7″ (170.0 mm) diameter (cardboard cutout template included) |
| Ceiling Thickness | Range: Up to 1.4″ (35.0 mm) with stock dog-ears; MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses (sold separately) |
| Attachment | Safety Seismic: One point, top surface |
| Dimensions (Ø x D) | From Back of Baffle: 7.7 x 5.4″ (196.0 x 138.0 mm) |
| Weight | One Speaker: 3.5 lb (1.6 kg) |
| Packaging Info | |
| Package Weight | 15.5 lb |
| Box Dimensions (LxWxH) | 26.5 x 9.9 x 9.8″ |
