เพาเวอร์แอมป์ Hill Audio QPA2800 4 Ch Amplifier

Description

Hill Audio QPA2800 Stereo Amplifier 4x450W @ 4 Ohms

เพาเวอร์แอมป์ Hill Audio QPA2800 เพาเวอร์แอมป์แบบ 4 ชาแนล Digitally controlled limiter & input high-pass filters, มีขนาดกำลังขับ 4×280วัตต์ @ 8โอหม์, 4×450วัตต์ @ 4โอหม์, 4×700วัตต์ @ 2 โอหม์, Class AB, Toroidal transformer

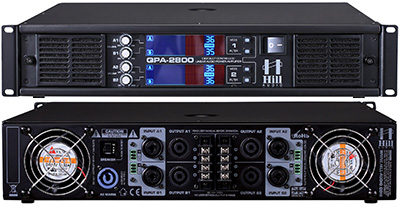

The Hill Audio QPA-2800 four channel amplifier is aimed at permanent installation use thanks to is simple operation and phoenix connections on the rear. The QPA-2800 is based on the reliable and successful LPA series amplifiers but with more output channels. Speakers can be connected via screw terminals or 4-pole speakon connectors on the rear panel and each pair can be run in either stereo, bridged or parallel mono mode. Four combi-Jack/XLR input connections can be used to send signal to the amplifier or for a more permanent solution, Phoenix connections have also been supplied.

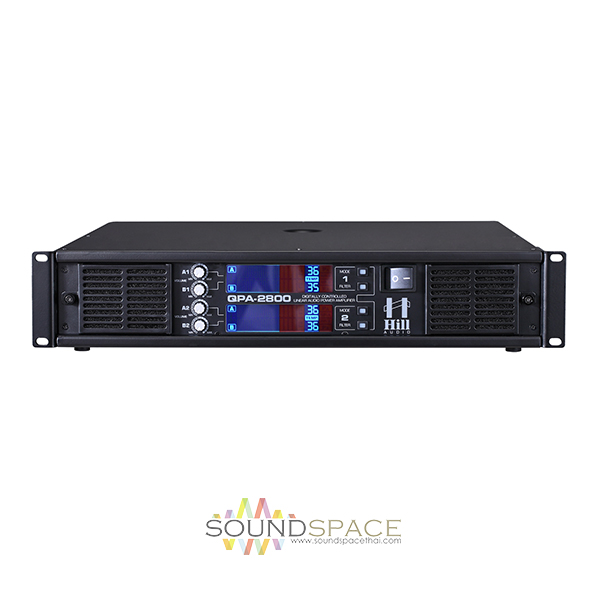

A front facing 3 colour LCD display gives real time analysis and feedback of each channels status including temperature and output levels. Digitally controlled input high pass filters can also be set from the front panel while the built-in limiters take control of audio levels. Individual pots for each output channel can be adjusted by the user for quick volume changes if necessary and removable foam air filters are great for keeping on top of amplifier maintenance

Features:

• Linear quadruple power amplifier
• Bipolar transistor output stages, 2Ω stable
• Class AB topology
• 2+2 channel dual block design
• Stereo, parallel mono and bridge operation modes for each amplifier block
• Toroidal transformer
• Temperature-controlled dual fan cooling
• Two 71-segment 3-color LCD displays with level meter, temperature readout and status indication
• Digitally controlled limiter and input high-pass filters
• Ultra-high CMRR input circuit for long distances between source and amplifier
• Combo input sockets
• Complementary Phoenix-compatible input sockets
• Speakon-compatible output connectors
• Additional terminal strip outputs
• PoCon AC input
• Resettable circuit breaker for AC input
• Front-detachable air ventilation filter frames
