เพาเวอร์แอมป์ Hill Audio LPA1800 Stereo Amplifier

Description

Hill Audio LPA1800 Stereo Amplifier 2x600W @ 4 Ohms

เพาเวอร์แอมป์ Hill Audio LPA800 Digitally controlled limiter & input high-pass filters, มีขนาดกำลังขับ 2×360วัตต์ @ 8โอหม์, 2×600วัตต์ @ 4โอหม์, 2×900วัตต์ @ 2 โอหม์, Class H, Toroidal transformer

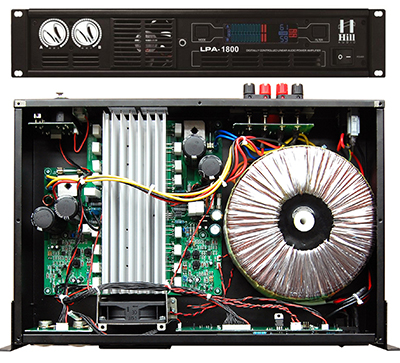

A powerful Class “H” power amplifier, the Hill LPA1800 can output 900w per channel. The LPA1800 is 2U rack mountable with an easy to clean front fan, 3 input connection options of jack, XLR and phoenix and speakon or terminal outputs. The unique display gives temperature readout and status giving the user feedback on the working condition when in use. The display also has a VU bar graph and indicates when the unit is clipping. A very reliable unit with trusted toroidal transformers and class “H” output stage.

Features:

• Linear stereo power amplifier
• Bipolar power devices
• 2-Ohm stable
• Class H topology
• Stereo, parallel mono and bridge operation modes
• Toroidal transformer
• Temperature-controlled fan cooling

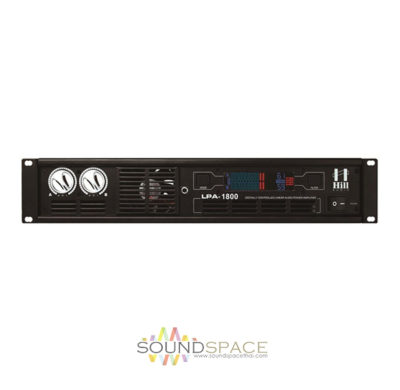

• 71-segment 3-color LCD display with level meter, temperature readout and status indication
• Digitally controlled limiter
• Digitally controlled input high-pass filters
• Front-detachable air ventilation filter frame

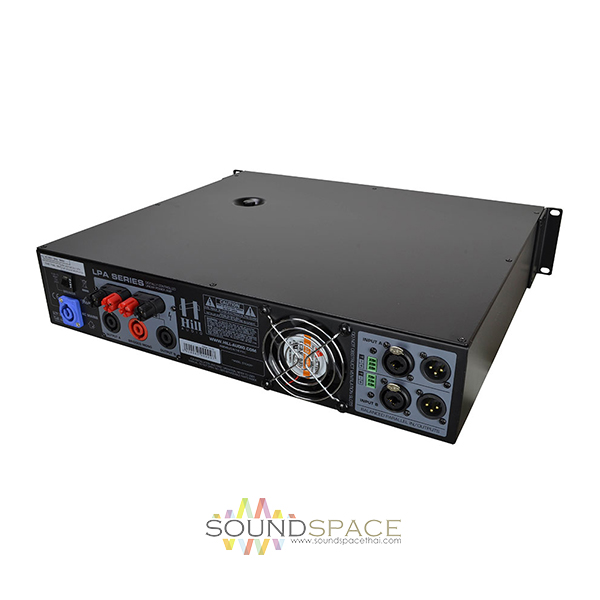

• Combo + parallel XLR input sockets
• Complementary Phoenix-compatible input sockets
• Speakon-compatible output connectors for both channels and bridge output
• Additional binding post outputs
• PoCon-type AC input socket
• Resettable circuit breaker for AC input
