มิกเซอร์ Hill Audio LMR2442FX Stage Mixer with EFX

Description

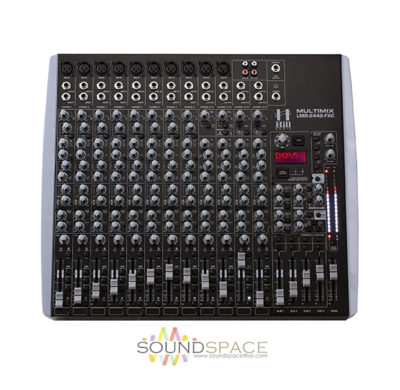

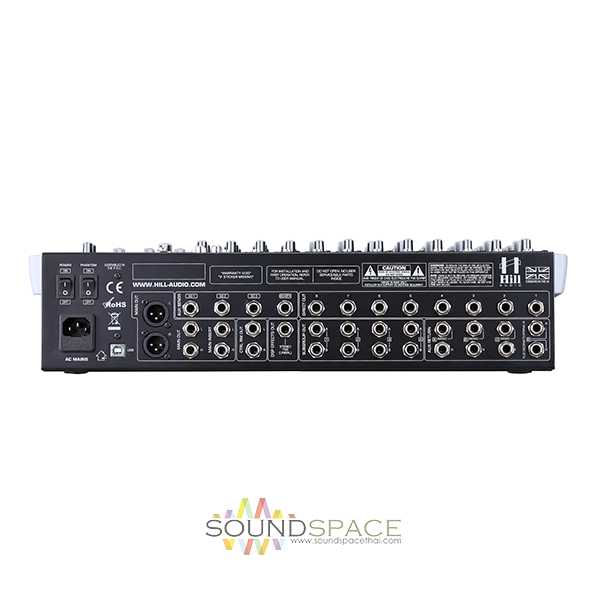

Hill Audio LMR2442FX Stage Mixer with EFX

เครื่องผสมสัญญาณเสียง Hill Audio LMR1204FX, 10 mono mic/line inputs with gain control, one-knob compressor, 75Hz highpass filter, 4-band semiparametric EQ, 4 AUX busses, pan control and peak LED

The Hill Audio Multimix LMR-2442-FXC-U is a 19’’-rackable live mixing desk comprising everything required for medium-sized events. One-knob compressors in the mic/line inputs make dynamics management easy, and the subgroups grant a structured approach to the mixdown. 4 AUX busses, two of them assignable for monitor purposes, and a flexible routing of the AUX signals including a sophisticated internal effects processor with upto 3 editable parameters per algorithm, provide flexibility. A USB audio interface for basic stereo replay and recording completes this comprehensive mixer concept. A true descendant of the original Multimix range.

Features:

• 8 mono mic/line inputs with gain control, one-knob compressor, 75Hz highpass filter, 4-band semiparametric EQ, 4 AUX busses, pan control and peak LED
• 2 mono Mic/stereo Line inputs with gain control, 4-band shelving EQ, balance control and peak LED
• 2 stereo Line inputs with gain control, 4-band shelving EQ, balance control and peak LED
• 3.5mm Mini TRS stereo inputs in two stereo channels
• 60mm faders for level control in all channels
• All mic channels with insert jack
• Channels assignable to Master (LR) or subgroup pair 1+2 or subgroup pair 3+4
• 4 Subgroups with external outputs, assignable to Master L or R, 60mm fader per subgroup
• Switchable +48V phantom power for microphone inputs
• Two AUX busses fixed post-fader (one assigned to internal effects), two AUX busses switchable pre/post
• Post-fader AUX returns re-routable to Monitor AUX send
• TriCore DSP 24-Bit stereo effects processor with LCD display, external output and footswitch control. 15 algorithms in 6 groups, editable in up to 3 parameters per algorithm, tap tempo function
• Stereo tape record/playback port with flexible routing
• USB stereo soundcard for replay and recording
• Control Room/headphones output with selectable source
• Main output with 60mm fader and 2×15 LED level meter
• SOLO function for channels and AUX send, PFL/AFL
• Internal switch mode power supply
• Full metal case with detachable plastic side panels and mountable metal rack ears (included)
• CE/ROHS compliant
