มิกเซอร์ Hill Audio LMR 1202FX Rack Mixer

Description

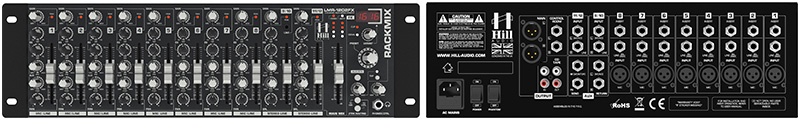

Hill Audio LMR 1202FX Rack Mixing Console

ซับมิกซ์ Hill Audio LMR 1202FX 19’’/3U rack mount mixer, 8 mono channels with dual line/mic inputs, All inputs sport gain controls, 2-Band EQs, 2 AUX busses and Pan/Balance controls, 60mm volume fader, 24-Bit stereo effects processor, witchable +48 V phantom

The LMR-1202FX is one of the most compact fully-featured mixing console available and with its 19’’/3U form factor a perfect fit for mobile band sound systems or advanced sub-mixing tasks. 8 mono channels with dual line/mic inputs and high-headroom preamps are complemented by 2 stereo channels. With one of the latter equipped with a 3.5mm stereo socket, extended convenience for connection of mobile players is granted.

All inputs sport gain controls, 2-Band EQs, 2 AUX busses and Pan/Balance controls, plus a smooth 60mm volume fader. One of the two AUX busses is routed pre-fader as a monitor bus, the other post-fader and connected to the internal effects processor.

This processor provides 16 highly useful digital effects in 16 variations each with 24-bit conversion quality, and makes the LMR-1202FX an affordable and portable all-in one sound mixing solution with a superb 20dB headroom to its all-analog signal path.

Features:

• 19’’/3U rack mount mixer
• 8 wide-gain dual-input Mic/Line input channels with high-headroom preamps
• 2 Stereo Line input channels, one with front-side 3.5mm TRS jack
• Gain control with Peak-LED, 2-band EQ, 2 AUX, pan/balance control and 60mm fader per channel
• Switchable +48 V phantom power for microphone inputs
• One AUX bus fixed post-fader (assigned to internal effects), one AUX bus fixed pre-fader (Monitor)
• TriCore DSP 24-Bit stereo effects processor with LED display. 16 algorithms with 16 variations per algorithm. Tap tempo function.
• Signal/Peak indicator and effects return control for effects processor
• CD/Tape input assignable to Main mix or Control Room/Phones outputs
• Stereo tape record/playback port with flexible routing
• Headphones output with dedicated volume control and separate rear-side control room output
• Balanced XLR main output with 60mm fader and 2×4 LED level meter
• Internal wide-voltage swing switch mode power supply for excellent audio dynamics
• Full metal case with detachable rack ears
• CE/ROHS compliant
