มิกเซอร์ Hill Audio LMD1402FX Stage Mixer with EFX

Description

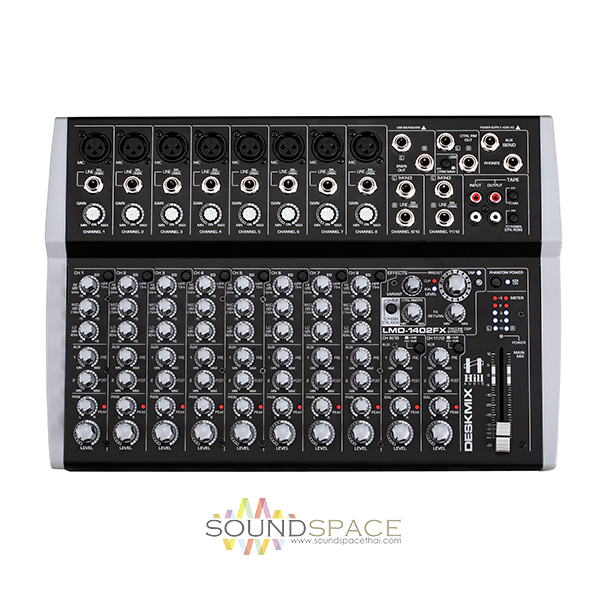

Hill Audio LMD1402FX Stage Mixer with EFX

เครื่องผสมสัญญาณเสียง มิกเซอร์ขนาดเล็ก Hill Audio LMD1402FX, 8- mono microphone, 2- stereo Line inputs with balance, 3-band EQ, DSP effects with stereo ouput, 24-Bit converters and 16 algorithms

Hill Audio LMD1402FX desktop live mixer is the next step up for small bands who want dedicated monitoring. 8 microphone channels with quality preamps, 3-band EQ, monitor bus, effects bus, pan and volume control; 2 stereo input channels with effects bus, balance and volume control, and a versatile Record/Playback port plus a control room output for prelistening/monitoring purposes.

The 1402FXU also sports a sophisticated 3-core DSP effects processor, offering 16 highly useful algorithms which can be altered in their core parameter as well as aligned to the music tempo by a tap function. Additional convenience for digital recording and replay is added by the internal stereo replay/record USB soundcard. Being fed by an external symmetrical AC power supply which is connected to the mixer via a locking mini XLR connector, this mixer delivers outstanding audio performance for bands on a budget.

Features:

• 8 mono microphone inputs with wide-range gain control covering microphone and line signal sensitivities
• Switchable +48V phantom power for microphone inputs
• 3-band EQ, 75Hz highpass-filter, pre-volume Monitor bus, post-volume Aux (EFX) bus, pan control, Peak LED and volume control for all mono inputs
• 2 stereo Line inputs with +4/-10dB sensitivity switch, pre-volume Monitor bus, post-volume Aux (EFX) bus, balance control, Peak LED and volume control
• Stereo tape record/playback port with flexible routing options (to main mix, to control room)
• Control Room/headphones output with selectable inclusion/exclusion of the Aux (EFX) bus signal
• Main output with 60mm fader and 2×5 LED level meter
• TriCore DSP effects with stereo ouput, 24-Bit converters and 16 algorithms: Flanger | Chorus | MonoDelay | PingPong Delay | Plate Reverb | PrePlate Reverb | Room Reverb | Hall Reverb | Spring Reverb | VocalDetune | Reverb+MonoDelay | Reverb+PingPong-Delay | Reverb+Chorus | Reverb+Flanger | Reverb+VocDoubler | Rotary
• All DSP effects available in 16 parameter variations
• Tap-tempo alignment for effects where applicable
• Signal/Peak indicator and effects return control for effects processor
• Internal USB stereo replay/record soundcard
• External symmetrical AC power supply for lowest hum and high dynamics, connected via locking 3-pin mini XLR
• Full metal case
• CE/ROHS compliant
