ลำโพงสตูดิโอ GENELEC 8341A SAM 3-Way Studio Monitor 6.6″
ลำโพงมอนิเตอร์สำหรับห้องบันทึกเสียง GENELEC 8341 SAM เป็นลำโพง 3-Way แบบ Active สี Dark Gray Smart Active Monitor (SAM™) Systems, ขนาดดอกลำโพง Dual 6.7 x 3.5″ Oval Woofers, 3.5″ MF Driver, 0.7″ HF Driver, มีกำลังขับ 250W LF, 150W MF, 150W HF
ราคาสินค้าเป็นราคาใบละ…Contact Us…
฿147,000.00
Description
GENELEC 8341A SAM 3-Way Studio Monitor 6.6″
ลำโพงมอนิเตอร์สำหรับห้องบันทึกเสียง GENELEC 8341 SAM เป็นลำโพง 3-Way แบบ Active สี Dark Gray Smart Active Monitor (SAM™) Systems, ขนาดดอกลำโพง Dual 6.7 x 3.5″ Oval Woofers, 3.5″ MF Driver, 0.7″ HF Driver, มีกำลังขับ 250W LF, 150W MF, 150W HF ตอบสนองความถี่ 45 Hz to 20 kHz (±1.5 dB)
The Genelec 8341A is a point-source monitor meant for near-field applications in the realm of pro audio. It features a coaxial design which nestles driver and tweeter—as well as two 6.6” woofers—in one location, thus aligning their acoustical axes, and securing an accurate point of sonic radiation. It’s also worth noting the 8341A’s Intelligent Signal Sensing technology, as well as the connections this technology affords you: ISS automatically detects whether analog or digital sources are being run into the monitor and allows the speaker to produce sound accordingly. To put it another way, one XLR input accepts analog signals, the other XLR takes AES/EBU, and the monitor itself automatically selects the input source.
Unless you don’t want it to, in which case you can make use of Genelec’s GLM software, which can override the automated selecting of signal. It can also help you tune the monitor to your room and facilitate and coordinate daisy-chaining monitors.
To make use of the GLM software, you’ll need, at minimum, Cat5 cables for routing to/from the monitor to a GLM adapter (available separately). You’ll note that RJ45 ports are provided for this very purpose. An XLR output jack is also on hand for sending identical copies of incoming AES/EBU signals to other monitors.

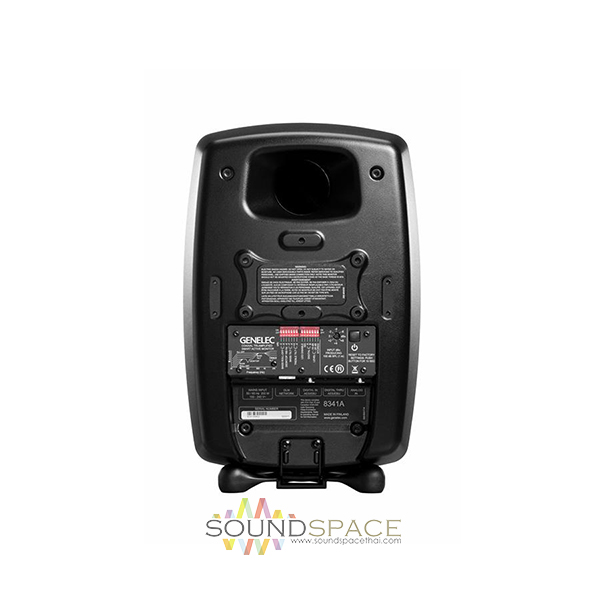

For standalone usage, DIP switches and a rotary control for level are offered on the rear of the monitor. Here, you’ll also find a reflex port to better direct low-end energy.

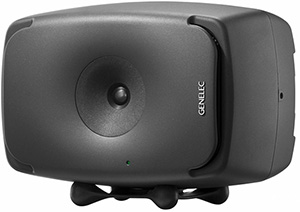

An Iso-Pod stand is included to facilitate isolation from aurally deleterious surfaces. Other assets, such as the 8341A’s acoustically concealed woofers, minimum diffraction coaxial construction, and proprietary waveguide, are further expounded upon in the features section.
Features:
- Dual 6.6″ Acoustically-Concealed Woofers
- Minimum Diffraction Coaxial Driver
- Accepts Analog or AES/EBU Signals
- Outputs AES/EBU Daisy-Chaining
- Directivity Control Waveguide
- SAM Technology for Automatic Tuning
- Networkable via GLM Software
- Minimum Diffraction Enclosure
- Reflex Port Design, Iso-Pod Stand Included
Specifications
| Cut-Off Frequency | Lower: < 38 Hz Upper: > 37 kHz |
| Frequency Response | 45 Hz to 20 kHz (±1.5 dB) |
| SPL | ≥ 110 dB SPL maximum (short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 3.3′ / 1 m) 101 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3′ / 1 m) |
| Peak | 118 dB maximum peak acoustic output (per pair in listening room with with music material at 3.3′ / 1 m) |
| Self-Generated Noise Level | ≤ 3 dB (in free space at 3.3′ / 1 m on axis [A-weighted]) |
| Harmonic Distortion | < 2% (at 90 dB SPL at 3.3′ / 1 m on axis, 50 to 100 Hz) < 0.5% (at 90 dB SPL at 3.3′ / 1 m on axis, > 100 Hz) |
| Drivers | Bass: dual 6.7 x 3.5″ / 170.0 x 90.0 mm, oval cones Midrange: 3.5″ / 90.0 mm cone, coaxial Treble: 0.7″ / 19.0 mm metal dome, coaxial |
| Amplifier | Bass Amplifier Short-Term Output Power: 250 W Midrange Amplifier Short-Term Output Power: 150 W Treble Amplifier Short-Term Output Power: 150 W (Long-term output power is limited by driver protection circuitry) |
| THD | < 0.05% at nominal output |
| Digital Connections | AES/EBU Input: XLR female, 110 Ohms AES/EBU Thru/Output: XLR male, 110 Ohms |
| Sample Rate and Resolution | 32 to 192 kHz / 16- to 24-bit |
| Digital Input | Sensitivity: -30 dBFS Maximum Attenuation: 42 dB |
| Network | Type: -30 dBFS Connection: 2 x RJ45 |
| Crossover Frequencies | Bass/Mid: 500 Hz Mid/Treble: 3 kHz |
| Digital Controls | GLM Software Frequency Response Adjustment Parametric Notch Filters: 16x Shelving Filters: 2 x LF and 2 x HF System Room Response Calibration: Genelec GLM AutoCal, GLM manual, Standalone |
| Mains Voltage | 100 to 240 VAC 50/60 Hz |
| Power Consumption | ISS Active: < 0.5 W Idle: 16 W Full Output (short term): 250 W |
| Analog Input | XLR female, balanced (pin 1 ground, pin 2 non-inverting, pin 3 inverting) |
| Input Impedance | 10 kOhms |
| Analog Input | Maximum Analog Input Level: +24 dBu Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3′ / 1 m) Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu |
| Dimensions (H x W x D) | 13.8 x 9.3 x 9.6″ / 351.0 x 237.0 x 243.0 mm, Iso-Pod stand included 14.6 x 9.3 x 9.6″ / 370.0 x 237.0 x 243.0 mm, Iso-Pod stand excluded |
| Weight | 21.6 lb / 9.8 kg |
