ลำโพงสตูดิโอ GENELEC 8331A SAM 3-Way Studio Monitor 5.1″
ลำโพงมอนิเตอร์สำหรับห้องบันทึกเสียง GENELEC 8331 SAM เป็นลำโพง 3-Way แบบ Active สี Dark Gray Smart Active Monitor (SAM™) Systems, ขนาดดอกลำโพง Dual 5.1 x 2.6″ Oval Woofers, 3.5″ MF Driver, 0.7″ HF Driver, มีกำลังขับ 72W LF, 36W MF, 36W HF
ราคาสินค้าเป็นราคาใบละ…Contact Us…
฿112,000.00
Description
GENELEC 8331A SAM 3-Way Studio Monitor 5.1″
ลำโพงมอนิเตอร์สำหรับห้องบันทึกเสียง GENELEC 8331 SAM เป็นลำโพง 3-Way แบบ Active สี Dark Gray Smart Active Monitor (SAM™) Systems, ขนาดดอกลำโพง Dual 5.1 x 2.6″ Oval Woofers, 3.5″ MF Driver, 0.7″ HF Driver, มีกำลังขับ 72W LF, 36W MF, 36W HF ตอบสนองความถี่ 58 Hz to 20 kHz (±1.5 dB)
The Genelec 8331 is a point-source, near-field monitor for pro-audio applications. It features a coaxial design, which houses its midrange driver, treble tweeter, and dual 5.1” woofers in one location, thereby aligning their acoustical axes and ensuring an accurate point of sonic radiation.
The monitor can accept both analog and digital AES/EBU signals from separate XLR jacks, using Intelligent Signal Sensing technology (ISS) to detect automatically what kind of audio is being fed into the monitor.
To coordinate multiple 8331s, you can make use of Genelec’s GLM software to tune your monitor to your room, facilitate and coordinate the daisy-chaining of monitors, override the ISS function, and more. Routing is accomplished by means of a few Cat5 cables and a GLM adapter, which is available separately.
You’ll note that two RJ45s are provided for GLM connectivity. An XLR output jack is also on hand for sending identical copies of incoming AES/EBU signals to other monitors.

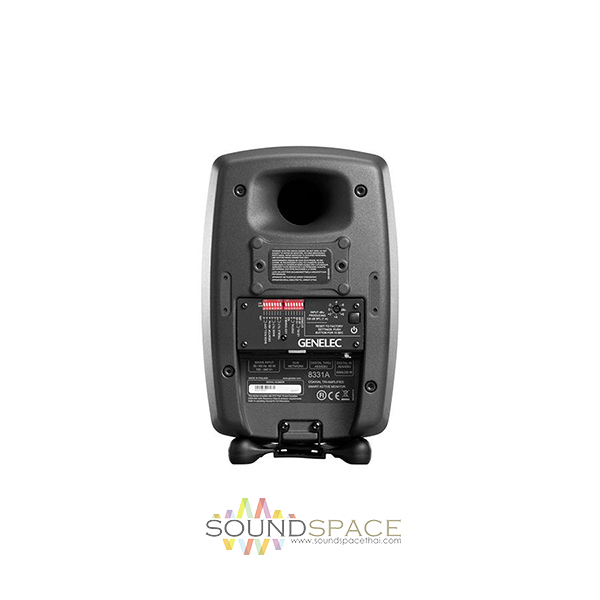

DIP switches and a rotary control for level are offered on the rear of the monitor for offline use. Here, you’ll also find a reflex port to better direct low-end energy. An Iso-Pod stand is included to facilitate isolation from aurally deleterious surfaces. Other assets, such as the 8331’s acoustically concealed woofers, minimum diffraction coaxial construction, and a proprietary waveguide, are further expounded upon in the features section.
Features:
- Dual 5.1″ Acoustically-Concealed Woofers
- Minimum Diffraction Coaxial Driver
- Accepts Analog or AES/EBU Signal
- Outputs AES/EBU Signal for Linking
- Directivity Control Waveguide
- SAM Technology for Automatic Tuning
- Networkable via GLM Software
- Minimum Diffraction Enclosure
- Reflex Port Design, Iso-Pod Stand Included
Specifications
| Cut-Off Frequency | Lower: < 45 Hz at -6 dB Upper: > 37 kHz at -6 dB |
| Frequency Response | 58 Hz to 20 kHz (±1.5 dB) |
| SPL | ≥ 104 dB SPL (maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 3.3′ / 1 m) 99 dB SPL (maximum long-term RMS acoustic output in the same conditions with IEC weighted noise limited by driver protection circuit at 3.3′ / 1 m) |
| Peak Output Capacity | 110 dB (maximum peak acoustic output [per pair in listening room with with music material at 3.3′ / 1 m) |
| Self-Generated Noise Level | ≤ 0 dB (in free space at 3.3′ / 1 m on axis [A-weighted]) |
| Harmonic Distortion | < 2% (at 85 dB SPL at 3.3′ / 1 m on axis, 50 to 100 Hz) < 0.5% (at 85 dB SPL at 3.3′ / 1 m on axis, > 100 Hz) |
| Drivers | Bass: Dual 5.1 x 2.6″ / 130.0 x 65.0 mm, oval cones Midrange: 3.5″ / 90.0 mm cone, coaxial Treble: 0.7″ / 19.0 mm metal dome, coaxial |
| Amplifier | Bass Amplifier Short-Term Output Power: 72 W Midrange Amplifier Short-Term Output Power: 36 W Treble Amplifier Short-Term Output Power: 36 W (Long-term output power is limited by driver protection circuitry) |
| THD | <0.05% at nominal output |
| Digital Connections | AES/EBU Input: XLR female, 110 Ohms AES/EBU Thru/Output: XLR male, 110 Ohms |
| Sample Rate and Resolution | 32 to 192 kHz / 16- to 24-bit |
| Digital Input | Sensitivity: -30 dBFS Maximum Attenuation: 42 dB |
| Network | Type: GLM (proprietary) Connection: 2 x RJ45 |
| Crossover Frequencies | Bass/Mid: 500 Hz Mid/Treble: 3 kHz |
| Digital Controls | GLM Software Frequency Response Adjustment Parametric Notch Filters: 16x Shelving Filters: 2 x LF and 2 x HF System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone |
| Mains Voltage | 100 to 240 VAC 50/60 Hz |
| Power Consumption | ISS Active: < 0.5 W Idle: 16 W Full Output (short term): 250 W |
| Analog Input | XLR female, balanced (pin 1 ground, pin 2 non-inverting, pin 3 inverting) |
| Input Impedance | 10 kOhms |
| Analog Input | Maximum Analog Input Level: +24 dBu Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3′ / 1 m) Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu |
| Dimensions (H x W x D) | 12.0 x 7.5 x 8.4″ / 305.0 x 189.0 x 243.0 mm, Iso-Pod stand included 11.3 x 7.5 x 8.4″ / 285.0 x 189.0 x 243.0 mm, Iso-Pod stand excluded |
| Weight | 15.0 lb / 6.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 18.6 lb |
| Box Dimensions (LxWxH) | 20.0 x 11.0 x 10.75″ |
