ลำโพงซับเบสสำหรับห้องบันทึกเสียง GENELEC 7073A PM Active Sub ขนาดดอกลำโพง 12นิ้ว 4ดอก กำลังขับ 1000 วัตต์, 6 Signal I/O Channels, Selectable Low Pass Filter, Sensitivity Switch
ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม
฿350,000.00 ฿280,000.00
ลำโพงซับเบสสำหรับห้องบันทึกเสียง GENELEC 7073A PM Active Sub ขนาดดอกลำโพง 12นิ้ว 4ดอก กำลังขับ 1000 วัตต์, 6 Signal I/O Channels, Selectable Low Pass Filter, Sensitivity Switch

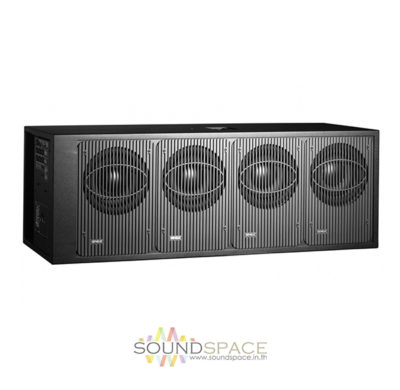

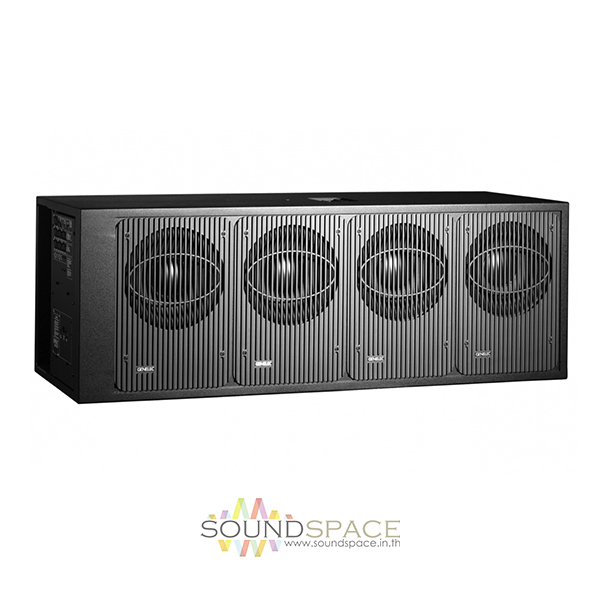

The 7073A 1000W Quad 12″ Active Subwoofer (Black) from Genelec is a powerful and precise active subwoofer perfect for large scale stereo or surround monitoring installations. It has 4 separate 12″ front-firing drivers capable of reproducing tones down to 19Hz. With a large sound pressure output capacity and versatile controls, the 7073A can be optimized to handle the most demanding low-frequency monitoring needs.
The integrated amplifier units provide 1000W of short term RMS power, plus 6 signal I/Os, summed signal outputs, and an LFE input with a selectable 85/120Hz low pass filter and a 0/+10dB LFE sensitivity switch. The sub also offers active crossover filters and overload protection circuits for reliable operation. Power-on signal muting adds additional protection.
Driver | 4 x 12″ (305mm) Front-Firing Woofers |
Amplifier Power | 1000W |
Frequency Range | 19 – 85/120Hz ±3dB |
Maximum Sound Pressure Level (SPL) | > 124dB |
Input Level Adjustment | +12 to -6dBu, Variable |
Low Frequency Roll-Off | 0 to -6dB (2dB/Step) |
Phase | 0 to 270° (90°/Step) @ 85Hz |
Connectors | 6 x XLR Speaker Inputs 6 x XLR Speaker Outputs 1 x XLR Sum In 1 x XLR Sum Out 1 x 1/4″ Bypass Switch Connector 1 x Remote Connector 1 x AC Input |
Controls and Indicators | 1 x Power Switch 1 x Voltage Selector Switch 1 x Sensitivity Adjustment Control DIP Switches for LFE Bandwidth, Redirect, Sum In Mode, LFE +10dB, Test Tone, Phase, and Bass Roll-Off |
Dimensions (HxWxD) | 20.6 x 56.7 x 22″ (524 x 1440 x 558mm) |
Weight | 265 lbs (120kg) |
