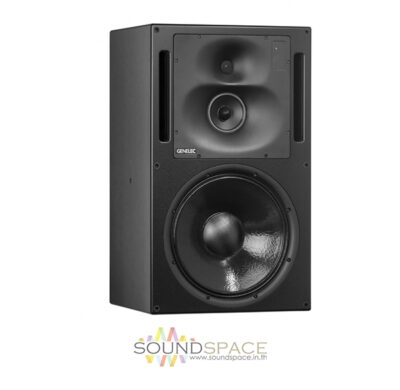

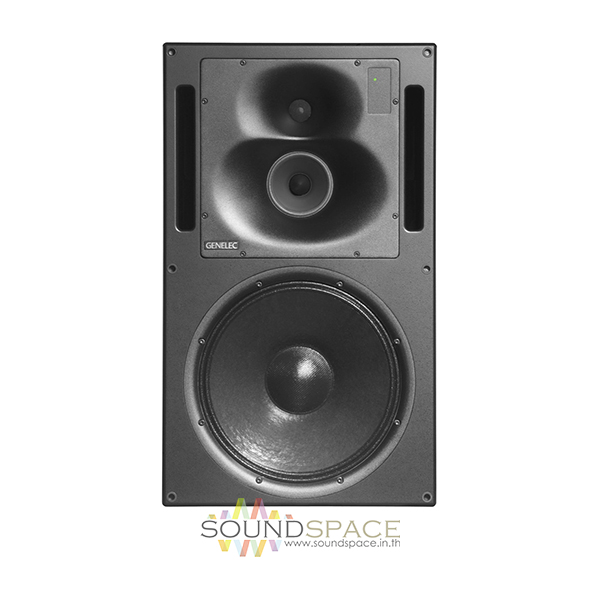

ลำโพงสตูดิโอ GENELEC 1238A 15″ Studio Monitor

Description

ลำโพงห้องบันทึกเสียง Genelec 1238A Tri-Amplified SAM Studio Monitor

ลำโพงมอนิเตอร์สำหรับห้องบันทึกเสียง Genelec 1238A SAM™ studio monitor, tri-amplified system ขนาดดอกลำโพง Woofer 15 นิ้ว 500 วัตต์ Class D Amp, ขนาดดอกลำโพง Midrange 5 นิ้ว 250 วัตต์ Class D Amp, ขนาดเสียงแหลม 1 นิ้ว Tweeter 200 วัตต์ Class AB Amp , Genelec Loudspeaker Manger (GLM)

The Genelec 1238A Tri-Amplified SAM Monitor System comes from the company’s 35+ years of designing and building professional three-way monitors for recording studios, post-production houses, digital mastering facilities, radio, and TV broadcasting companies. The monitor uses a 500-watt powered 15″ low frequency woofer, a 250-watt powered mid-frequency woofer that is handmade in Finland, and a 200-watt powered 1″ metal dome high frequency tweeter in a proprietary large Directivity Control Waveguide (DCW) to deliver an extended low frequency response of 30 to 22,000 Hz (-6 dB). The waveguide helps maintain balanced on- and off-axis imaging for even the most acoustically challenging environments.

Power is supplied by the 3U removable and rackmountable RAM-L amplifier module that uses a Class D amplifier design for the low and mid frequencies combined with a Class AB design for the treble. The amplifier module supports rapid system configuration as well the automatic room response calibration for fast and accurate monitor installations. The monitor is also equipped with the company’s Genelec Loudspeaker Manager Control Network Technologies for integrating multiple monitors together to build stereo and surround systems.

For I/O the monitor features both an analog XLR input with a 10 kΩ impedance as well as an AES/EBU XLR digital input. It also includes an AES/EBU XLR digital Thru/Output for connecting to additional monitors using the Genelec Loudspeaker Manager Control Network technology (GLM) with four low frequency notch filters, two high frequency notch filters, two low frequency shelving filters, and two high frequency shelving filters. The monitor can be positioned either vertically or horizontally on its side by rotating the mid/high unit 90°.

คุณลักษณะ:

• 15″ Low Frequency Woofer
• 5″ Finnish Midrange Frequency Woofer
• 1″ Metal Dome High Frequency Tweeter
• 500 + 250 W Class D Amp for Low and Mid
• 200 W Class AB Amp for Highs
• Genelec Loudspeaker Manger (GLM)
• Balanced Response Automatic Calibration
• RAM-L Integrated Amplifier Module
• Advanced Directivity Waveguide
• Analog XLR and AES/EBU XLR I/O

Genelec Loudspeaker Manger (GLM)

Enables automatic alignment of every monitor on the network for level, timing, and equalization of room response anomalies

AutoCal

Calibrates monitor for operation in room

RAM-L

Provides modular removeable and 3U rackmountable amplification with class D amplification for bass and mids as well as class AB amplification for highs

Directivity Control Waveguide (DCM)

Provides excellent on and off-axis imaging even in difficult acoustic environments

Mounting Configurations

Can be positioned either vertically or horizontally by rotating the mid/high unit 90°
