- 2 in / 2 out USB audio interface
- 96 KHz, 24-bit conversion
- 1 Focusrite microphone preamplifier
- Red anodised aluminium unibody chassis

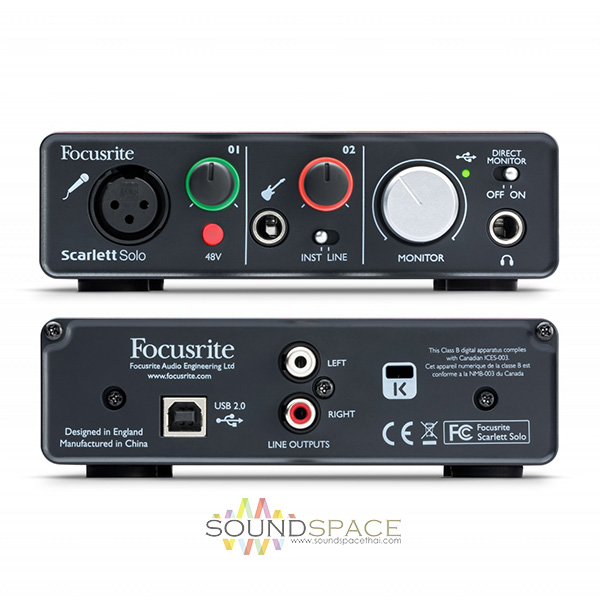

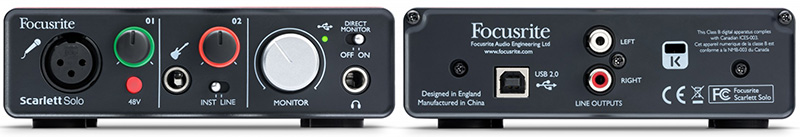

Front panel
- 1 mic input – high quality XLR
- 1 line/instrument input – high quality ¼” TRS Jack
- 1 Line/Instrument switches
- 2 Gain knobs
- 2 Gain halo signal indicators
- 48V Phantom power switch
- Direct monitor switch
- Large monitor / headphone level dial
- USB Connection LED indicator
- Headphone output – ¼” TRS Jack
Rear panel
- 2 monitor outputs – RCA Phono
- USB 2.0 Port
- Kensington Lock slot
Included software
- Ableton Live Lite
- Focusrite Scarlett plug-in suite
- Novation Bass Station plug-in – VST / AU
- 1GB of Loopmasters samples
Technical Specifications |
||
Clock source: |
Internal |
|
ADC Dynamic Range |
106 dB ‘A-weighted’ (all . inputs). Converter chipset A/D dynamic range 114 dB |
|
DAC Dynamic Range |
Range 106 dB ‘A-weighted’ (all . outputs). Converter chipset D/A dynamic range 114 dB |
|
Supported Sample Rates |
44.1 kHz, 48 kHz, 88.2 kHz, 96 . kHz / 24 bit – operation with Mac and PC |
|
Microphone Input |
||
Frequency Response |
20 Hz – 20 kHz +/-0.3 dB |
|
Gain Range |
-4 dB to +46 dB |
|
THD |
-97 dB |
|
Noise (EIN) |
– 125 dB |
|
Dynamic Range |
106 dB (A-weighted) |
|
Max. Input level |
+4 dBu |
|
Instrument Input |
||
Frequency Response |
20 Hz – 20 kHz +/-0.2dB |
|
Gain Range |
-16 dB to +34 dB |
|
THD |
-95 dB |
|
Noise (EIN) |
-109 dB |
|
Dynamic Range |
106 dB |
|
Max. Input level |
+15 dBu |
|
Line Input |
||
Frequency Response |
20 Hz – 20 kHz +/-0.2dB |
|
Gain Range |
-21 dB to +29 dB |
|
THD |
-93 dB |
|
Noise (EIN) |
-98 dB |
|
Dynamic Range |
106 dB |
|
Max. Input Level |
+21 dBu |
|
Line Outputs |
||
THD |
-100 dB |
|
Noise (Equivalent Output Noise) |
-92 dB, Noise = -97 dB (A-wt) |
|
Dynamic Range |
106 dB |
|
Max. Output Level |
+9 dBu, unbalanced |
|
Headphone Output |
||
THD |
-100 dB |
|
Dynamic Range |
106 dB |
|
Max. Output Level |
+10 dBu (no load) |
