ออดิโออินเตอร์เฟส Focusrite Scarlett 8i6 (Gen3) USB Audio Interface
USB ออดิโออินเตอร์เฟส Focusrite Scarlett 8i6 (New Generation GEN3) High-Performance 24-Bit / 192 kHz AD/DA, 2 x Scarlett Mic Pres, 4 x Line Inputs, 2 x XLR-1/4″ Mic/Line/Instrument Inputs, Switchable Air Mode Enhances Brightness, 4 x Line Outputs, Dual Headphone Outs, รองรับ Mac & Windows
Coming Soon…….
฿13,200.00
Description

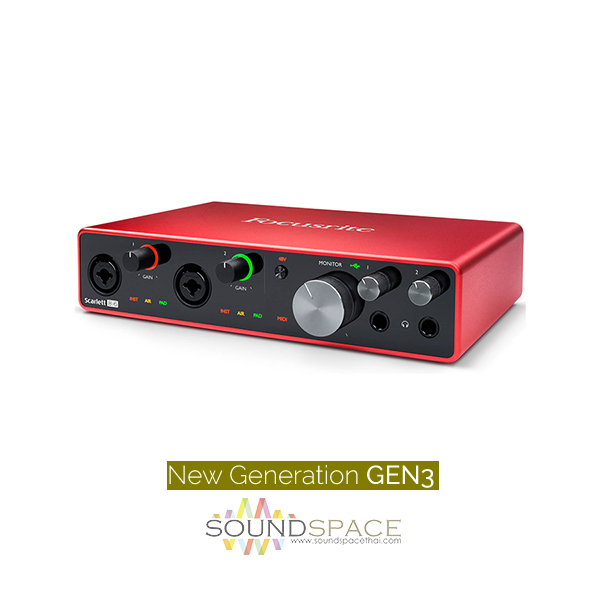

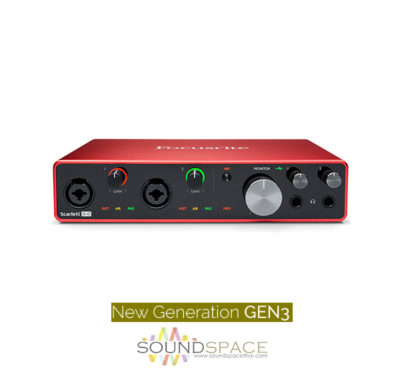

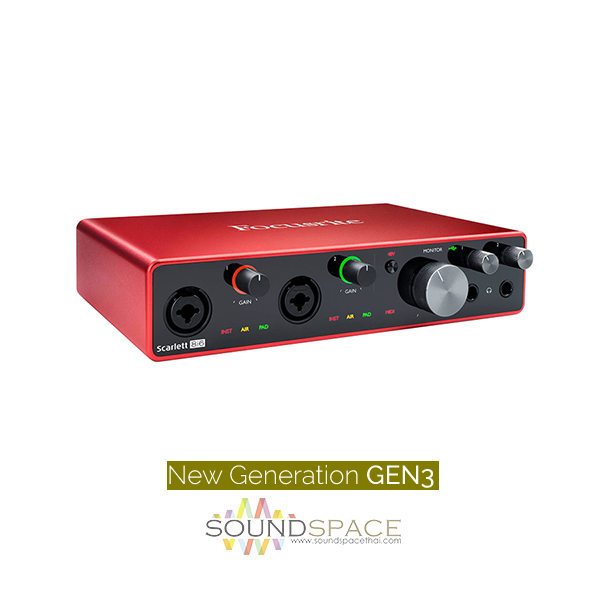

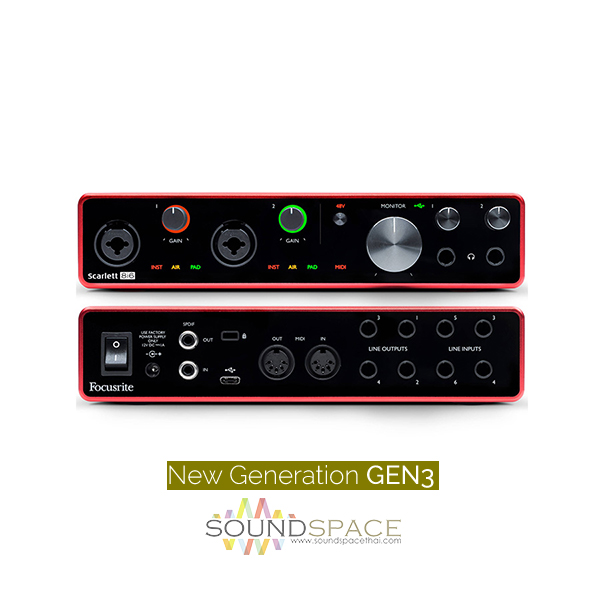

Focusrite Scarlett 8i6 8×6 USB Audio Interface (Gen3)
USB ออดิโออินเตอร์เฟส Focusrite Scarlett 8i6 (New Generation GEN3) High-Performance 24-Bit / 192 kHz AD/DA, 2 x Scarlett Mic Pres, 4 x Line Inputs, 2 x XLR-1/4″ Mic/Line/Instrument Inputs, Switchable Air Mode Enhances Brightness, 4 x Line Outputs, Dual Headphone Outs, รองรับ Mac & Windows
The third-generation Focusrite Scarlett 8i6 is an 8×6 USB audio interface offering high-performance hardware, customizable mic tone, and a creative software bundle. The two improved Scarlett microphone preamps feature switchable phantom power, input pads, and selectable Air circuits, which add brightness based on Focusrite’s legendary ISA preamplifier. The two XLR-1/4″ combo inputs can also accept unbalanced instrument level from guitars, basses, synthesizers, or drum machines, or balanced line level from a mixing console or outboard preamps. The rear panel sports four additional fixed-level 1/4″ inputs to accommodate more line-level sources.
24-bit / 192 kHz converters ensure that signals are captured and reproduced with detail and clarity. With four balanced 1/4″ line outputs, two 1/4″ stereo headphone jacks, and independent control of the headphone and speaker volume settings, the Scarlett 8i6 can simultaneously feed multiple monitoring systems and outboard effects processors. The virtual loopback function empowers podcasters with an easy mix-minus setup for taking calls without the caller being distracted by a delayed audio return signal.
Traditional 5-pin MIDI I/O is provided for seamless integration of MIDI equipment such as a keyboard or sound module, and S/PDIF coaxial ports allow proper routing of stereo digital gear.The Scarlett 8i6 connects to your Mac or Windows computer via USB, and is powered by the included external power supply. The extensive software bundle includes music production software, virtual instruments, plug-in effects, loops, and more—plenty of tools to kick-start your inspiration.
Features:
- For Multi-Instrumentalists & Producers
- High-Performance 24-Bit / 192 kHz AD/DA
- 2 x Scarlett Mic Pres, 4 x Line Inputs
- 2 x XLR-1/4″ Mic/Line/Instrument Inputs
- Switchable Air Mode Enhances Brightness
- 4 x Line Outputs, Dual Headphone Outs
- Phantom Power, Pads, MIDI & S/PDIF I/O
- Virtual Loopback for Mix-Minus Setup
- Includes Extensive Software Bundle
- Mac & Windows Compatible
Specifications
| Channels of I/O | Analog: 6 Inputs / 4 Outputs at 192 kHz Digital: 2 Inputs / 2 Outputs at 192 kHz |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Display and Indicators | 2 x LEDs (Input Level) 1 x LED (+48V) 2 x LEDs (Input Selection) 2 x LEDs (Pad) 1 x LED (Host Connection) 1 x LED (MIDI) |
| Host Connection | 1 x USB Type-C (USB 2.0) |
| Analog I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 4 x 1/4″ TRS Balanced Line Input 4 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | +48 V, Selectable On/Off (on 2 Channels) |
| Digital I/O | 1 x RCA Coaxial / S/PDIF Input 1 x RCA Coaxial / S/PDIF Output |
| MIDI I/O | 1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out |
| Memory Card Slot | None |
| Frequency Response | 20 Hz to 20 kHz ±0.1 dB |
| Gain Range | Mic/Line Inputs: 56 dB |
| Max Input Level | Mic Inputs: +9 dBu (Min Gain) +16 dBu (Min Gain, Pad On) Hi-Z Inputs: +12.5 dBu (Min Gain) +14 dBu (Min Gain, Pad On) Line Inputs: +22 dBu (Min Gain) +29 dBu (Min Gain, Pad On) |
| Max Output Level | Line Outputs: +15.5 dBu (Balanced) Headphone Outputs: +7 dBu |
| Dynamic Range | Mic Inputs: 111 dBA Hi-Z Inputs: 110.5 dBA Line Inputs: 110.5 dBA Line Outputs: 108.5 dBA Headphone Out: 104 dBA |
| Impedance | Mic Inputs: 3 kOhms Hi-Z Inputs: 1.5 MOhms Line Inputs: 60 kOhms Line Outputs: 430 Ohms Headphone Outputs: <1 Ohm |
| THD+N | Mic Inputs: < 0.0012% Hi-Z Inputs: < 0.03% Line Inputs: < 0.002% Line Outputs: < 0.002% Headphone Outputs: < 0.002% |
| EIN | Mic Inputs: -128 dB (A-Weighted) |
| Sample Rates | Up to 192 kHz (AD/DA Conversion) |
| Bit Depth | Up to 24-Bit (AD/DA Conversion) |
| Sync Sources | Internal, S/PDIF |
| OS Compatibility | macOS Windows |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC at 1 A, Center-Positive (Included) |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 8.27 x 5.89 x 1.87″ / 21.01 x 14.96 x 4.75 cm |
| Weight | 1.9 lb / 0.9 kg (Without Accessories) 2.4 lb / 1.1 kg (With Accessories) |
