Focusrite Scarlett 2i2 Portable USB Audio Interface
ออดิโอ อินเตอร์เฟส Focusrite Scarlett 2i2 2 in / 2 out เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียงใน Home Studio, 2 Focusrite Microphone Preamps, Ableton Live Lite Software, รองรับ Mac OS X, Windows
(Discontinued) ปัจจุบันเปลี่ยนรุ่นเป็น ออดิโออินเตอร์เฟส Focusrite Scarlett 2i2 (3rd Gen) USB Audio Interface
฿6,790.00
Description
Focusrite Scarlett 2i2 Portable USB Audio Interface (Discontinued)
ออดิโอ อินเตอร์เฟส Focusrite Scarlett 2i2 2 in / 2 out เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียงใน Home Studio, 2 Focusrite Microphone Preamps, Ableton Live Lite Software, รองรับ Mac OS X, Windows

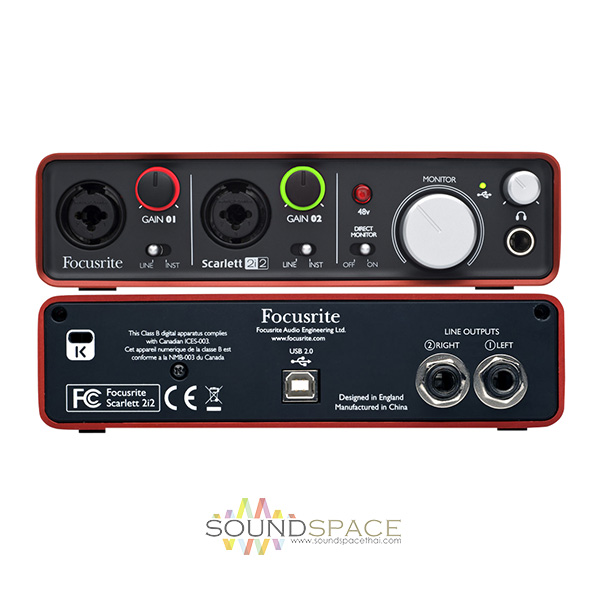

The Scarlett 2i2 from Focusrite is a 2 input, 2 output portable USB recording interface featuring two Focusrite preamps, housed in an anodized-aluminum unibody chassis that is solid enough to take on the road. The preamps offer transparent, low-noise, and low-distortion performance with sufficient available headroom for using moving-coil, condenser, or ribbon microphones. Phantom power is switchable.
The front-panel Neutrik combo connectors can used to connect both line and instrument level signals as well as microphones. This makes it perfect for recording the output of a synthesizer or stage piano, while a flick of a switch caters for the output of an electric or acoustic guitar. Halo signal indicators help with maintaining correct levels. Red indicates a clipping signal, and with reduced gain the lights will momentarily turn amber before returning to green.
A large monitor dial provides control over the output level being sent to monitor speakers, while a high-quality amplifier provides a clean yet loud signal to headphones. A direct monitor switch routes audio directly from the inputs to both the headphone and speaker outputs, allowing for zero-latency monitoring. The included Scarlett Plug-In suite provides EQ, compression, gate, and reverb processing, and is cross-platform compatible with all major DAWs.
The Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. The plug-ins allow for conveniently exploring the sound of the hardware originals from within Pro Tools (10 and above), along with other audio software. The software is a free download for new and current owners of the Scarlett 2i2.
In addition to the Red 2 and Red 3 Plug-in Suite, the interface includes the Softube Time and Tone Pack. Modeled after the Drawmer 1973 FET Stereo compressor hardware, the Drawmer S73 Intelligent Master Processor is a plug-in that aids in balancing and shaping a mix. TSAR-1R Reverb adds space, depth, and width to a sound. Change settings with a single slider, from realistic three-dimensional rooms to dramatic and dreamlike halls. Tube Delay is an echo effect that can go from clean to rude by overdriving its three modeled tube stages – delivering everything from realistic room echoes, to rockabilly style slap back, to dub reggae echo. Saturation Knob is a modeled output distortion unit that adds grit and warmth – use it to fatten up bass lines, add some harmonics and shimmer to vocals, or simply destroy a drum loop.
Features:
- 2 Input / 2 Output
- 2 Focusrite Microphone Preamps
- Phantom Power
- Ableton Live Lite Software
- Scarlett Plug-In Suite
- Focusrite Red 2 and Red 3 Plug-In Suite
- Softube Time and Tone Bundle
- USB Bus-Powered
- Aluminum Unibody Chassis
- Mac OS X, Windows

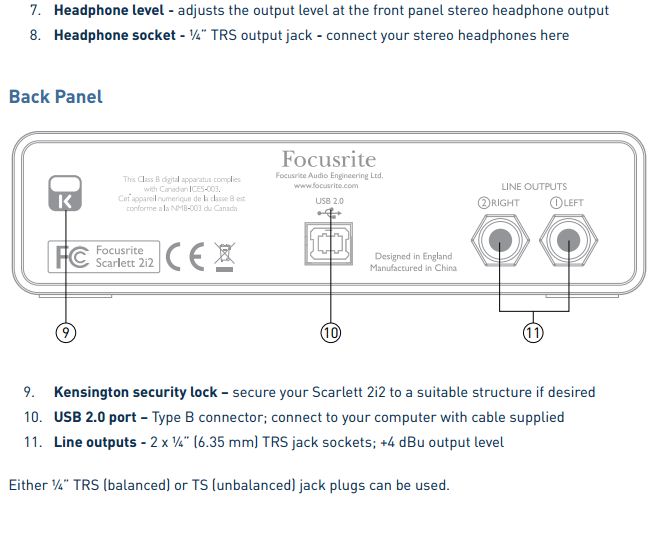

ตัวอย่างการต่อ Focusrite Scarlett 2i2
Specifications
| Type | USB 2.0 |
| Converter | 24-bit, internal clock |
| Sample Rates | 44.1, 48, 88.2 and 96 kHz |
| Inputs | 2 x XLR/TRS combo Microphone/Line/Instrument |
| Maximum Input Level | Microphone: -3 dBu Instrument: -3 dBu Line: +20 dBu |
| Gain Range | Microphone: +10 dB to +55 dB Instrument: +10 dB to +55 dB Line: +10 dB to +35 dB |
| Outputs | 2 x 1/4″ TRS phone 1 x 1/4″ TRS phone Headphone |
| Output Impedance | <10 ohms |
| Output Level | Nominal: 0 dBFS = 10 dBu, balanced 15 mW into 150 ohms 30 mW into 50 ohms |
| Dynamic Range | Microphone/Line: 105 dB, A-weighted Line Output: 117 dB, A-weighted |
| THD + N | Microphone/Line: 0.002%, -1 dBFS, 22 Hz to 22 kHz BPF Instrument: 0.005%, -8 dBu input, 22 Hz to 22 kHz BPF Line Output: 0.001%, -1 dBFS, 22 Hz to 22 kHz BPF, unweighted |
| Frequency Response | Inputs: 20 Hz to 20 kHz, +/-0.1 dB Outputs: 20 Hz to 20 kHz, +/-0.2 dB |
| Noise | Microphone EIN: <-120 dB, measured @ 55 dB of gain with 150 ohm termination (20 Hz to 22 kHz BPF) Instrument: -87 dBu (22 Hz to 22 kHz BPF) Line: -90 dBu (22 Hz to 22 kHz BPF) |
| Signal to Noise Ratio | Line: >100 dB |
| Crosstalk | Input to Input: better than 90 dB Output to Output: better than 90 dB Input to Output: better than 85 dB |
| Power Requirements | USB bus |
| System Requirements | Mac: OS X 10.6.5 (32- and 64-bit) and above Windows: Windows 7 (32- and 64-bit), Windows 8, and Windows 10 |
| Dimensions (WxDxH) | 7 x 4 x 1.75″ (175 x 100 x 45 mm) |
| Weight | 1.3 lb (580 g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 9.8 x 6.8 x 4.0″ |
Download
Fixes:
- Fixes the cause of some blue screens when connecting to/disconnecting from USB 3.0 ports on certain systems
- Fixes a problem where some users were unable to open the ASIO driver in their DAW
Tested with:
- Windows 7
- Windows 8
WINDOWS XP USERS
See this article for information.
MAC USERS
The 2i2 runs in class-compliant mode on a Mac. No driver is required. Simply plug and play.
PRO TOOLS 11 WINDOWS USERS
If you’re experiencing performance issues please see this article.
MAC USERS
The Scarlett 2i2 runs in class-compliant mode on a Mac. No driver is required. Simply plug and play.
If you have previously installed the Focusrite USB driver and are experiencing glitchy audio on Mavericks you can put your unit into class compliant mode by following the instructions HERE.
If you have installed a Novation device previously please refer to this answerbase article.
