Focusrite Scarlett 18i8 USB 2.0 Audio Interface

Name: Focusrite Scarlett 18i8 USB 2.0 Audio Interface
Price: 14400.00 THB
Availability: InStock

ออดิโอ อินเตอร์เฟส 18 Inputs, 8 Outputs เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียง, 4 Focusrite Microphone Preamps, Focusrite Red 2 and Red 3 Plug-In Suite, รองรับ Mac, Windows, and iPad Compatible

(Discontinued) ปัจจุบันเปลี่ยนรุ่นเป็น ออดิโออินเตอร์เฟส Focusrite Scarlett 18i8 (3rd Gen) USB Audio Interface

฿14,400.00

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: Focusrite

Description

Focusrite Scarlett 18i8 USB 2.0 Audio Interface (DISCONTINUED)

The Scarlett 18i8 USB 2.0 Audio Interface from Focusrite features 18 inputs and 8 outputs, including 4 front-panel microphone preamps on XLR/TRS combo inputs. Each of the microphone inputs doubles as a line input; the first two also feature switchable Hi-Z instrument inputs. The 18i8 is compatible with Mac, Windows, and iPad – requires an Apple Camera Connection Kit, sold separately.

focusrite_scarlett_18i8_6

18 Inputs, 8 Outputs
Resolution up to 24-Bit / 96 kHz
4 Focusrite Microphone Preamps
S/PDIF and MIDI I/O
2 Independent Headphone Mixes
Integrated Monitor Level Control
Focusrite Red 2 and Red 3 Plug-In Suite
Softube Time and Tone Bundle
Rugged-Metal Unibody Chassis
Mac, Windows, and iPad Compatible

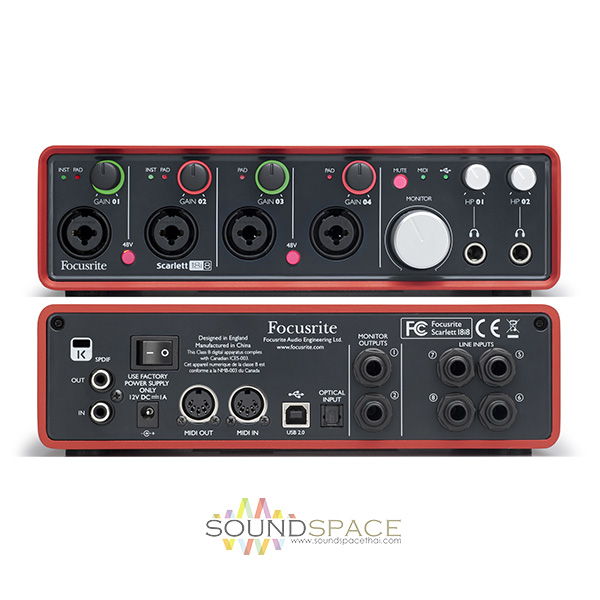

The Scarlett 18i8 is capable of resolutions up to 24-bit/96 kHz and features a wide range of connectivity. Its 4 front microphone inputs can provide up to 60 dB of gain and have switchable Phantom power. The rear panel has 4 additional 1/4″ TRS line inputs as well as an 8-channel ADAT Lightpipe connection and a stereo S/PDIF input. The 18i8 also provides MIDI input and output jacks.

The Scarlett 18i8 has left and right 1/4″ TRS monitor outputs, a stereo S/PDIF output, and two independent headphone outputs. It is housed in a rugged and compact unibody metal case to withstand constant use.

The Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. The plug-ins allow for conveniently exploring the sound of the hardware originals from within Pro Tools (10 and above), along with other audio software. The software is a free download for new and current owners of the Scarlett 18i8.

In addition to the Red 2 and Red 3 Plug-in Suite, the interface includes the Softube Time and Tone Pack. Modeled after the Drawmer 1973 FET Stereo compressor hardware, the Drawmer S73 Intelligent Master Processor is a plug-in that aids in balancing and shaping a mix. TSAR-1R Reverb adds space, depth, and width to a sound. Change settings with a single slider, from realistic three-dimensional rooms to dramatic and dreamlike halls. Tube Delay is an echo effect that can go from clean to rude by overdriving its three modeled tube stages – delivering everything from realistic room echoes, to rockabilly style slap back, to dub reggae echo. Saturation Knob is a modeled output distortion unit that adds grit and warmth – use it to fatten up bass lines, add some harmonics and shimmer to vocals, or simply destroy a drum loop.

Features:

focusrite_scarlett_18i8_2

Gain Halos: Unique LED ring “gain halo” indicators make it clear when you have adequate signal for recording. Once the halos are green you have a good level; if they turn red, you’ve applied too much gain.

Scarlett MixControl: Scarlet MixControl provides an 18 x 8 DSP mixer with flexible routing capabilities, intuitive one-click presets, and lower than 1.4 ms latency.

Monitor Control & Mute: A large main monitor knob with a mute button means that monitor levels are always at your fingertips.

Software Bundle: Scarlett 18i8 comes with Ableton Live Lite, the Scarlett Plug-in Suite, the Novation Bass Station soft synth, and Loopmasters sample content.

Focurite Red Plug-In Suite: Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware

Softube Time and Tone Bundle: Contains Drawmer S73 Intelligent Master Processor, TSAR-1R Reverb, Tube Delay echo effect, and Saturation Knob, a modeled output distortion unit

Specifications

Focusrite Scarlett 18i8 USB 2.0 Audio Interface

System Requirements
Mac System Requirements	OS X 10.7 (Lion), 10.8 (Mountain Lion), 10.9 (Mavericks), 10.10 (Yosemite) Available USB 2.0 port
Windows System Requirements	Windows 7 (all versions) or Windows 8 (excluding RT) Available USB 2.0 port

Inputs & Outputs
Analog Inputs	2 x XLR/TRS combo jack – Mic/Line/Hi-Z Instrument 2 x XLR/TRS combo jack – Mic/Line 4 x 1/4″ TRS – Line In
Digital Inputs	1 x RCA coaxial – S/PDIF stereo 1 x TOSLINK optical – ADAT 8-channel optical @ 44.1/48 kHz
MIDI Ports	1 x 5-pin DIN – MIDI input 1 x 5-pin DIN – MIDI output
Analog Outputs	2 x 1/4″ TRS – Monitor Output L/R
Digital Outputs	1 x RCA coaxial – S/PDIF stereo output
Headphone Outputs	2 x 1/4″ TRS stereo
USB Connector	1 x USB 2.0 type B

Performance
Dynamic Range	A/D: 103 dB CCIR-RMS (all inputs) D/A: 104 dB CCIR-RMS (line outputs)
Sample Rates	44.1, 48, 88.2, 96 kHz
Bit Depth	16-, 24-bit
Clock Jitter	< 250 ps
Phantom Power for Mic Inputs	+48 V, switchable

Microphone Inputs
Frequency Response	±0.5 dB @ 20 Hz, ±0.1 dB @ 20 kHz; min. gain
THD + N	-96 dB (1 kHz, -1 dBFS, 20 kHz BW)
Equivalent Input Noise	-122 dBu CCIR-RMS (measured at 60 dB of gain with 150 ohm termination)
Maximum Input Level	+9 dBu (without pad)

Line Inputs
Frequency Response	±0.5 dB @ 20 Hz , ±0.2 dB @ 20 kHz (min. gain)
THD + N	-83 dB (1 kHz, -1 dBFS, 20 kHz BW)
Noise	-105 dBFS CCIR-RMS (min. gain, 50 ohm termination)
Maximum Input Level	> +28 dBu

Instrument Inputs
Frequency Response	± 0.3 dB @ 20 Hz, ± 0.1 dB @ 20 kHz (min. gain)
THD + N	-83 dB (1 kHz, -1 dBFS, 20 kHz BW)
Noise	-103 dBFS CCIR-RMS (measured at min. gain)
Maximum Input Level	+8 dB (without pad)

Line Outputs
Maximum Output Level	+16 dBu, balanced (@ 0 dBFS)
THD + N	-99 dB (1 kHz, -1 dBFS, 20 kHz BW)

Dimensions & Weight
Kensington Security Slot	Yes
Dimensions (W x D x H)	8.94 x 7.09 x 2.60″ (227 x 180 x 66 mm)
Weight	3.62 lb (1.64 kg)

Packaging Info
Package Weight	5.6 lb
Box Dimensions (LxWxH)	12.0 x 11.5 x 4.5″

Download

Focusrite Scarlett 18i8 USB 2.0 Audio Interface

Software

Scarlett Mix Control 1.8

This update contains the latest version of Scarlett MixControl and all drivers required to get up and running with your Scarlett interface.

– Updates Mac driver to version 1.9

– Updates Scarlett 18i20 firmware to version 634. Addresses 18i20 connectivity issues.

Important notes:

Scarlett 18i20 users who will be running at 96kHz on a Mac please refer to this answerbase article.

If you have installed a Novation device previously please refer to this answerbase article.

Tested with:
– Mac OS X 10.8
– Mac OS X 10.9
– Windows 7
– Windows 8

Scarlett Mix Control 1.8 dmg (Mac),

Scarlett Mix Control 1.8 exe (Windows)

Scarlett MixControl 1.6.1 (Windows XP only – Unsupported Legacy Version)

This is a Windows-only update containing the latest version of Scarlett MixControl and all drivers required to get up and running with your Scarlett interface.

Updates Windows USB 2.0 driver to 2.5.1.

Updates 6i6, 8i6, 18i6, 18i8, 18i20 firmware to 586.

– Enables standalone mode on 18i8 and 6i6

– Fixes problem where flash storage on units can become corrupted

– Fixes problem where Scarlett MixControl loses connection to units

– Fixes the cause of some blue screens when using USB 3.0 ports on certain systems

– “Control Panel” link in DAWs now opens Scarlett MixControl

– Fixes “Pad” graphics

– Fixes Dim switch functionality

Windows : Scarlett MixControl 1.6.1 exe
