ออดิโออินเตอร์เฟส Focusrite Scarlett 18i20 (Gen3) USB Audio Interface
USB ออดิโออินเตอร์เฟส Focusrite Scarlett 18i20 (GEN3) High-Performance 24-Bit / 192 kHz AD/DA, 8 x Scarlett Preamps w/ XLR-1/4″ Inputs, MIDI, S/PDIF & 8-Channel ADAT I/O, 10 x Line Outputs, Dual Headphone Outs, USB Host I/O, Wordclock Output, Includes Extensive Software Bundle, รองรับ Mac & Windows
Coming Soon…….
฿25,990.00
Description

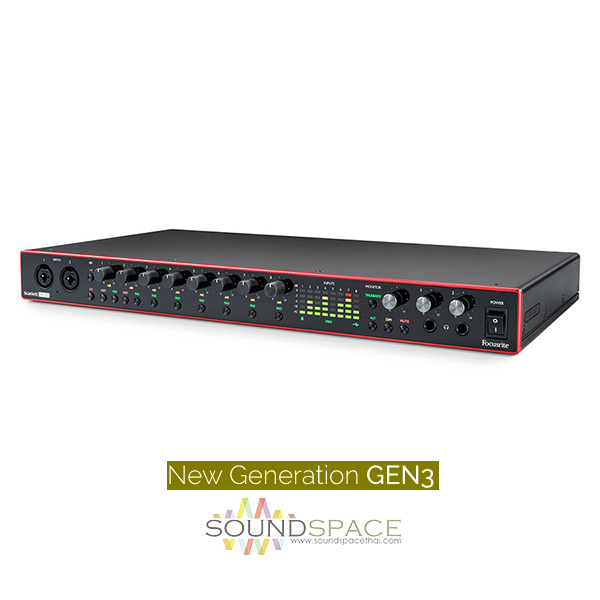

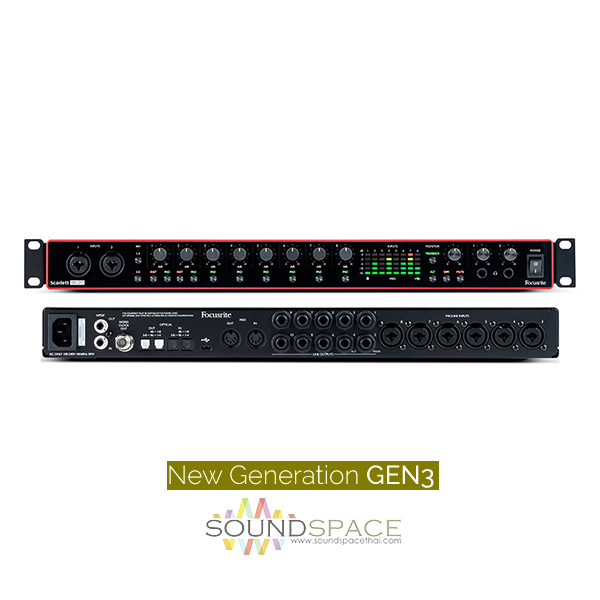

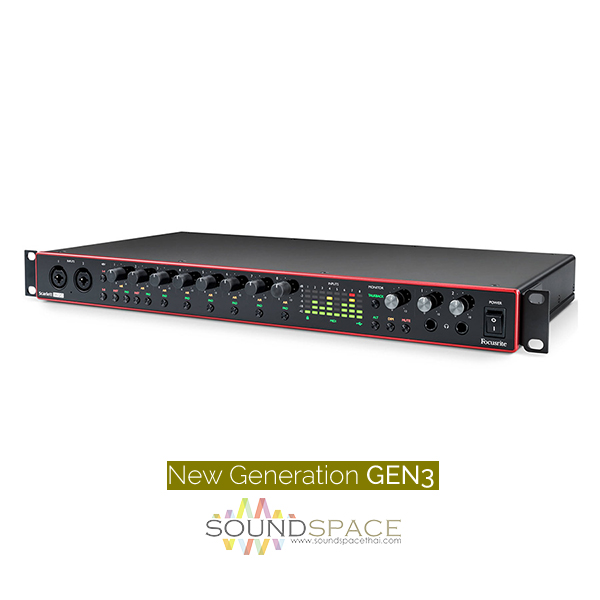

Focusrite Scarlett 18i20 18×20 USB Audio Interface (Gen3)
USB ออดิโออินเตอร์เฟส Focusrite Scarlett 18i20 (GEN3) High-Performance 24-Bit / 192 kHz AD/DA, 8 x Scarlett Preamps w/ XLR-1/4″ Inputs, MIDI, S/PDIF & 8-Channel ADAT I/O, 10 x Line Outputs, Dual Headphone Outs, USB Host I/O, Wordclock Output, Includes Extensive Software Bundle, รองรับ Mac & Windows
The third-generation Focusrite Scarlett 18i20 is a rack-mountable 18×20 USB audio interface offering high-performance hardware, comprehensive I/O, customizable mic tone, and a creative software bundle. The eight improved Scarlett microphone preamps feature switchable phantom power, input pads, and selectable Air circuits, which add brightness based on Focusrite’s legendary ISA preamplifier. The first two XLR-1/4″ combo inputs can accept unbalanced instrument level from guitars and basses, and synthesizers and drum machines, or balanced line level from a mixing console or outboard preamps, while combo inputs 3-8 support mic- or line-level sources.
Utilize the dual ADAT optical input and output ports to interface external 8-channel AD/DA converters (available separately). The Scarlett 18i20’s 24-bit / 192 kHz converters ensure that signals are captured and reproduced with detail and clarity. With four balanced 1/4″ line/monitor outputs, six additional 1/4″ line outs, two 1/4″ stereo headphone jacks, and independent control of the headphone and speaker volume settings, the Scarlett 18i20 can simultaneously feed multiple monitoring systems and outboard effects processors. Plus, the onboard talkback feature and built-in talkback mic streamline the task of communicating with your artists during recording sessions.
Traditional 5-pin MIDI I/O is provided for seamless integration of MIDI equipment such as a keyboard or sound module, and S/PDIF coaxial ports allow proper routing of stereo digital gear. The Scarlett 18i20 connects to your Mac or Windows computer via USB and is powered through a connection to a standard AC outlet. The extensive software bundle includes music production software, virtual instruments, plug-in effects, loops, and more—plenty of tools to kick-start your inspiration.
Features:
- For Bands & Recording Engineers
- High-Performance 24-Bit / 192 kHz AD/DA
- 8 x Scarlett Preamps w/ XLR-1/4″ Inputs
- MIDI, S/PDIF & 8-Channel ADAT I/O
- Switchable Air Mode Enhances Brightness
- 10 x Line Outputs, Dual Headphone Outs
- Phantom Power, Pads, Onboard Talkback
- USB Host I/O, Wordclock Output
- Includes Extensive Software Bundle
- Mac & Windows Compatible
Specifications
| Channels of I/O | Analog: 8 Inputs / 10 Outputs at 192 kHz Digital: 10 Inputs / 10 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Display and Indicators | 8 x Multi-Segment LED Meters (Input Level) 2 x LEDs (+48V) 2 x LEDs (Input Selection) 8 x LEDs (Pad) 1 x LED (Host Connection) 1 x LED (MIDI) 1 x LED (Output Selection) 1 x LED (Dim) 1 x LED (Mute) |
| Host Connection | 1 x USB Type-C (USB 2.0) |
| Analog I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 6 x Combo XLR-1/4″ TRS Balanced Mic/Line Input 10 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | +48 V (on 8 Channels) |
| Digital I/O | 1 x RCA Coaxial / S/PDIF Input 1 x RCA Coaxial / S/PDIF Output 1 x TOSLINK / ADAT, S/MUX Input 1 x TOSLINK / S/MUX Input 1 x TOSLINK / ADAT, S/MUX Output 1 x TOSLINK / S/MUX Output 1 x BNC (Word Clock) Output |
| MIDI I/O | 1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out |
| Memory Card Slot | None |
| Frequency Response | 20 Hz to 20 kHz ±0.1 dB |
| Gain Range | Mic/Line Inputs: 56 dB |
| Max Input Level | Mic Inputs: +9 dBu (Min Gain) +16 dBu (Min Gain, Pad On) Hi-Z Inputs: +12.5 dBu (Min Gain) +14 dBu (Min Gain, Pad On) Line Inputs: +22 dBu (Min Gain) +29.5 dBu (Min Gain, Pad On) |
| Max Output Level | Line Outputs: +15.5 dBu (Balanced) Headphone Outputs: +7 dBu |
| Dynamic Range | Mic Inputs: 111 dBA Hi-Z Inputs: 110 dBA Line Inputs: 110.5 dBA Line Outputs: 108.5 dBA Headphone Out: 104 dBA |
| Impedance | Mic Inputs: 3 kOhms Hi-Z Inputs: 1.5 MOhms Line Inputs: 60 kOhms Line Outputs: 430 Ohms Headphone Outputs: <1 Ohm |
| THD+N | Mic Inputs: < 0.0012% Hi-Z Inputs: < 0.03% Line Inputs: < 0.002% Line Outputs: < 0.002% Headphone Outputs: < 0.002% |
| EIN | Mic Inputs: -128 dB (A-Weighted) |
| Sample Rates | Up to 192 kHz (AD/DA Conversion) |
| Bit Depth | Up to 24-Bit (AD/DA Conversion) |
| Sync Sources | ADAT, Internal, S/PDIF |
| OS Compatibility | macOS Windows |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC at 50/60 Hz |
| Power Consumption | 30 W |
| Anti-Theft Features | None |
| Rackmount Size | 1 RU (with Included Hardware) |
| Dimensions | 19 x 10.23 x 1.83″ / 48.26 x 25.98 x 4.65 cm |
| Weight | 7.0 lb / 3.2 kg (Without Accessories) 7.9 lb / 3.6 kg (With Accessories) |
