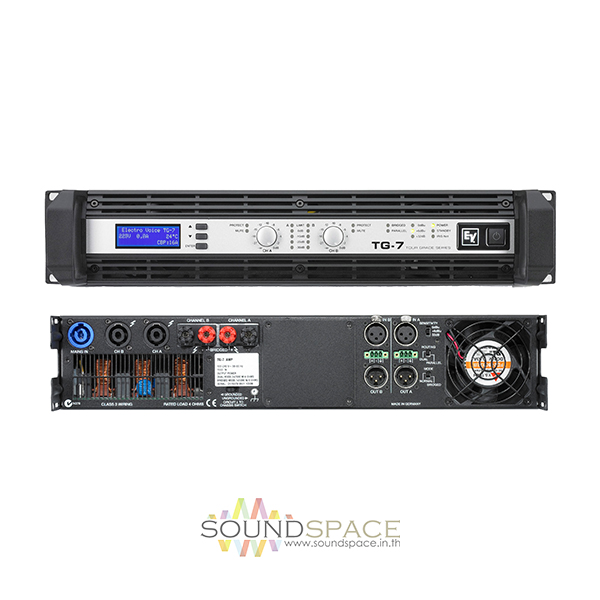

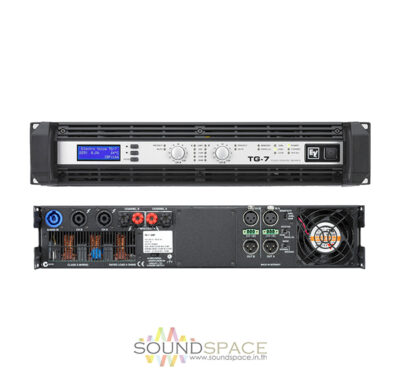

เพาเวอร์แอมป์ EV TG7 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง EV TG7 มีกำลังขับ 2 x 2500 วัตต์/4 Ohms, 2 x 2500 วัตต์/8 Ohms, 2 x 3000วัตต์/2 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿295,000.00 ฿250,750.00
Description
เครื่องขยายเสียง EV TG7 2 x 2500 @ 4 Ohms
เครื่องขยายเสียงกลางแจ้ง EV TG7 มีกำลังขับ 2 x 2500 วัตต์/4 Ohms, 2 x 2500 วัตต์/8 Ohms, 2 x 3000วัตต์/2 Ohms
TG7 Tour Grade amplifiers have a microprocessor controlled operation management system that provides useful features like compound thermal management automatic mains voltage detection. The TG7 uses grounded bridge, three-step, class-H topology to ensure the highest acoustic performance and reliability. The TG Series also offers power and transient response to drive subwoofers, along with low distortion for critical HF signals. The high-capacity switchmode power supply provides the headroom needed to ensure high dynamic outputs and reliable operation on extreme low loads.
Features:
- Designed for Club Sound, Concert Sound, House of Worship,Performance & Sports Venues, and other applications.
- Up to 2 x 3500 W into 2 ohms
- Grounded Bridge Class-H design
- Switch mode power supply
- Microprocessor-controlled
- Front LCD panel for operation mode set-up and monitoring
- Slot for optional RCM-26 IRIS-Net compatible DSP and control module
- 11-level protection package
- Only 32 lbs (14.5 kg)
Specifications
| A/D Conversion | 24 Bit linear, Sigma-Delta, 128 times oversampling |
| Amplifier Gain | 41.5/35/32 dB Switchable |
| Analog Inputs | Yes |
| CAN Bus Interface | 10 – 500 kbaud, 2x RJ-45 (IRIS-Net Control) |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 3500 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 2500 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 1500 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 2100 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 1050 Watts |
| Control Protocol | CAN Bus |
| D/A Conversion | 24 Bit, Sigma-Delta, 128 times over-sampling |
| Data Format | 24 Bit linear A/D and D/A conversion, 48 Bit processing |
| Digital Inputs | Optional with RCM-26 |
| DIM 30 | 0.02 % |
| FIR-Drive | Optional with RCM-26 |
| GPIO Control Ports | 1 x 6-pole Euro block, 2 control inputs, 2 control outputs, (+5 V, 200 mA/GND) |
| Impedance | 2/4/8 Ω |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | 0/+6/+9 Selectable |
| Intermodulation Distortion (SMPTE) | 0.05 % |
| Internal Processing | 2 DSPs (150 MHz, 300 MIPS) |
| Maximum Bridged Output 4Ω | 7000 Watts |
| Maximum Bridged Output 8Ω | 5000 Watts |
| Network Control (IRIS-Net) | Optional with RCM-26 |
| Power Consumption | 1450 W |
| Power Supply | 100-240 V, 50-60 Hz |
| Sample Rate | 48 kHz |
| Sample Rate Conversion (SRC) | 32 kHz – 192 kHz, internal Sample-Rate- Converter |
| Signal-to-Noise Ratio (A-weighted) | 111 dB |
| Slew Rate | 35 V/µs |
| Topology | Class-H grounded bridge |
| Total Harmonic Distortion | 0.05 % |
| Height | 2RU 88.1 mm (3.47″) |
| Width | 482.6 mm (19″) |
| Depth | 512 mm (20.16″) |
| Weight Net | 14.5 kg (31.97 lbs) |
