Sale

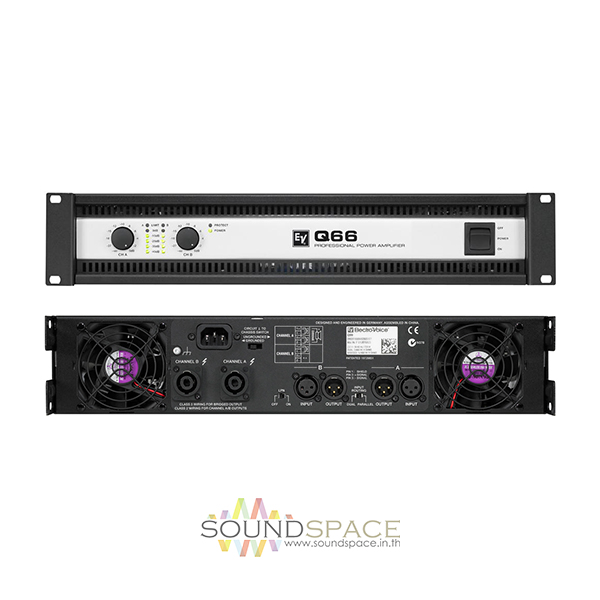

เพาเวอร์แอมป์ EV Q66ii Power Amplifier
เครื่องขยายเสียงกลางแจ้ง EV Q 66ii มีกำลังขับ 2 x 600 วัตต์/4 Ohms, 2 x 380 วัตต์/8 Ohms, 2 x 900วัตต์/2 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿60,900.00 ฿51,700.00
Description
เครื่องขยายเสียง EV Q 66ii 2 x 600W @ 4 Ohms
เครื่องขยายเสียงกลางแจ้ง EV Q 66ii มีกำลังขับ 2 x 600 วัตต์/4 Ohms, 2 x 380 วัตต์/8 Ohms, 2 x 900วัตต์/2 Ohms
Q66II – the versatile workhorse of the new Q series amplifiers delivers 2 x 600W @4Ohms / 2 x 900W @2Ohms and provides flexible drive capability for a huge variety of speaker systems, including Sx300, ZX4, SB122 etc. Switchable LPN(Low-Pass Notch) filter circuitry provides extra tonal fundament and kick, with protective Low-Cut for using smaller passive 12” or 15” cabinets without additional subwoofers.
Features:
- Designed for Pro Music, and other applications.
- Up to 2 x 1200W into 2 ohms
- XLR pass-though input connections
- The NL4 connection on output A also carries output B on pins +/- 2 to allow easy connection to bi-amped loudspeakers
- Switchable LPN filter extra tonal fundamentals and “kick” with a protective low-cut for 12” or 15” loudspeakers without additional subwoofers
- Class-AB design
- Three-stage front-to-rear-fans
- Complete protection package
- Classic EV amplifier dynamic headroom for real-world music and applications
- Built-in dynamic limiters
Specifications
| Amplifier Gain | 32 dB |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 900 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 600 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 380 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 500 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 250 Watts |
| Cooling | Front-to-Rear, 3-stage fans |
| DIM 30 | 0.05 % |
| Electronics Type | Amplifier |
| Frequency Response | 10 Hz – 40 kHz ±1 dB |
| Impedance | 2/4/8 Ω |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | +3.1 dBu |
| Intermodulation Distortion (SMPTE) | 0.1 % |
| Maximum Bridged Output 4Ω | 1800 Watts |
| Maximum Bridged Output 8Ω | 1200 Watts |
| Maximum Input Voltage | +21 dBu 8.69 Vrms |
| Network Control (IRIS-Net) | No |
| Signal-to-Noise Ratio (A-weighted) | 107 dB |
| Slew Rate | 26 V/µs |
| Topology | Class-AB |
| Total Harmonic Distortion | 0.03 % |
| Height | 2RU 88.1 mm (3.47″) |
| Width | 483 mm (19.02″) |
| Depth | 421.5 mm (16.59″) |
| Weight Net | 14.8 kg (32.63 lbs) |
