ลำโพงติดเพดาน CEV EVID 8.2HC Ceiling Loudspeaker 8″

Description

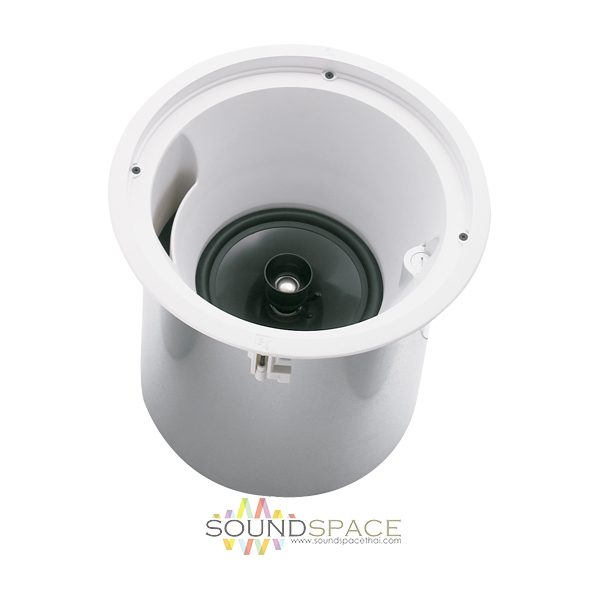

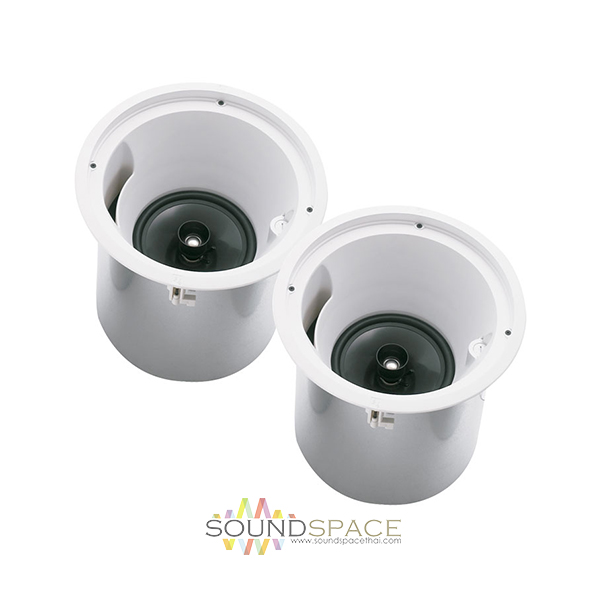

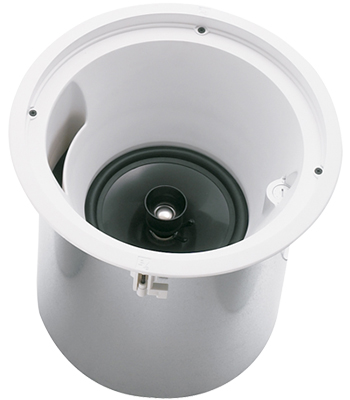

EV EVID C8.2HC  8″ two-way coaxial ceiling loudspeaker

ลำโพงแบบติดฝ้าเพดาน EV Electro-Voice EVID C8.2HC ลำโพงแบบ 2 way ออกแบบมาสำหรับงานติดตั้งในกรณีที่ฝ้าเพดานมีขนาดสูงเพื่อการกระจายเสียงได้อย่างทั่วถึง ขนาดดอกลำโพง 8 นิ้ว เสียงแหลม 1 นิ้ว titanium-coated tweeter, Integrated transformer for 70 V,100 V, or 8 Ω

Electro-Voice EVID C8.2HC is an 8″ coaxial installation speaker designed for placement in rooms with high ceilings and a high level of reverberance. Through the implementation of the company’s proprietary waveguide technology, the speaker’s 75° coverage pattern fills the same area installed in a 21′ ceiling as a typical flushmount speaker housed in an 8′ ceiling, with an optimal level of music fidelity and speech intelligibility.

The EVID C8.2HC is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap selector switch that includes 8 Ohm bypass operation, conveniently located on the front of the speaker. The enclosure is both ported and tuned, optimizing bass response, and the unit is supplied with a well-designed 3-point mounting system for simplified installation.

Features:

• 8″ coaxial 2-way installation speaker with dual Integrated Waveguides and 75° coverage pattern for mounting in high ceiling and highly reverberant environments
• Controlled dispersion, high output speaker with extended frequency response for optimized reproduction of background music or paging/announcement requirements
• Waveguide coupled titanium tweeter for smooth high frequency dispersion
• Integrated low-loss line-matching transformer for 70V/100V or 8 Ohm bypass operation
• Front baffle wattage selector switch allows for 7.5(70V only)/15/30/60W delivery to loudspeaker system when using 70V/100V lines
• Integrated ported enclosure for optimized bass response

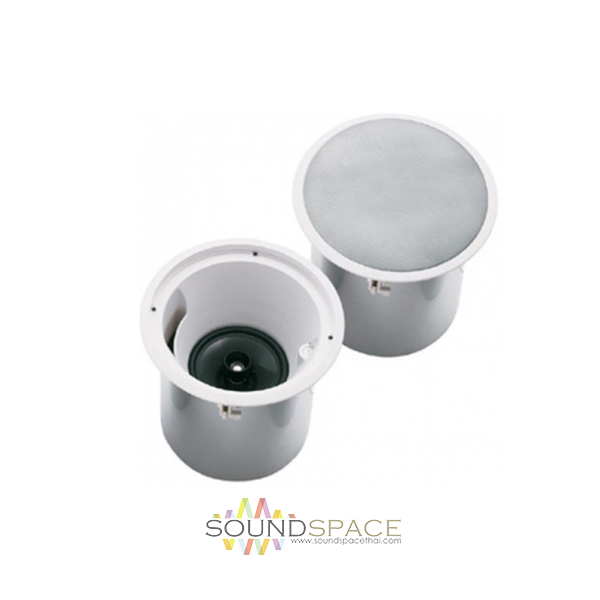

• Perforated grille speaker cover with powder-coated semigloss white enamel finish
