ลำโพง EV EVID 3.2t Dual 3.5-inch surface-mount loudspeaker 3.5″
ตู้ลำโพงติดผนัง EV Electro-Voice EVID 3.2t Transformer Version ลำโพงแบบ 2 way ขนาดดอกลำโพง 3.5 นิ้ว Woofers 2 ดอก และขนาดเสียงแหลม 0.75 นิ้ว Titanium Tweeter กำลังขับ 150 วัตต์, Transformer-isolated for 70V/100V use พร้อมขา มี 2 สีคือสีดำและสีขาว โดยลำโพงสีขาวจะใช้รหัสว่า EVID 3.2tw
ราคาสินค้าเป็นราคาต่อคู่…ไม่รวมภาษีมูลค่าเพิ่ม
฿13,300.00 ฿11,300.00
Description
EV Electro-Voice EVID 3.2t 2Way surface-mount loudspeaker

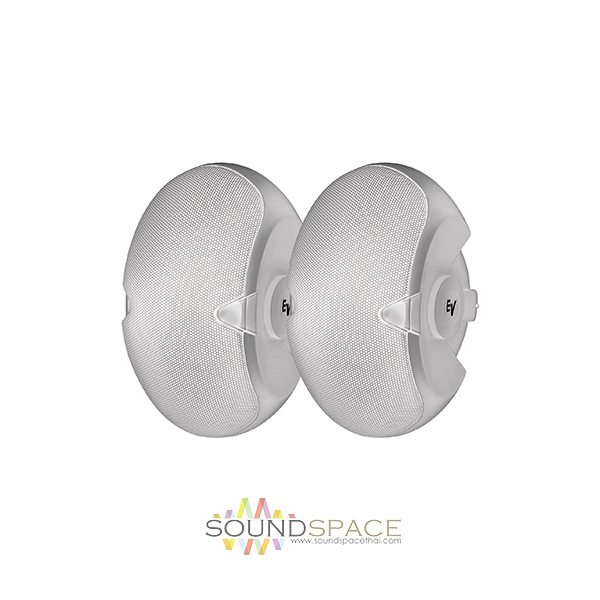

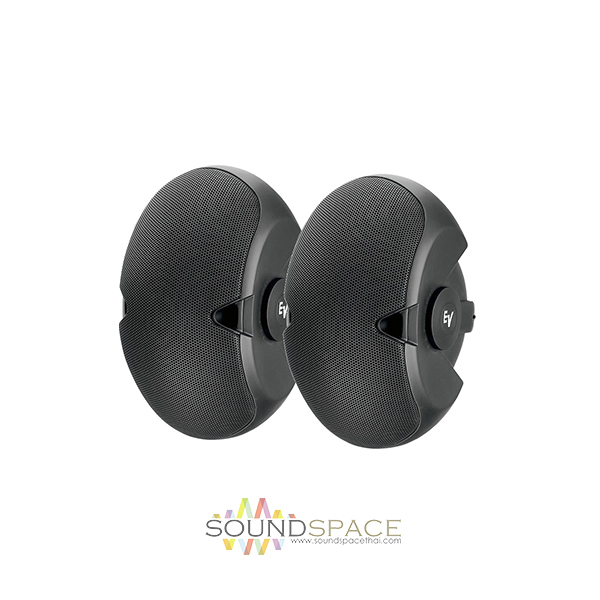

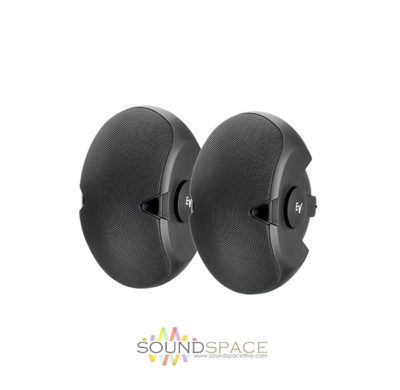

ตู้ลำโพงติดผนัง EV Electro-Voice EVID 3.2t Transformer Version ลำโพงแบบ 2 way ขนาดดอกลำโพง 3.5 นิ้ว Woofers 2 ดอก และขนาดเสียงแหลม 0.75 นิ้ว Titanium Tweeter กำลังขับ 150 วัตต์, Transformer-isolated for 70V/100V use พร้อมขา มี 2 สีคือสีดำและสีขาว โดยลำโพงสีขาวจะใช้รหัสว่า EVID 3.2tw

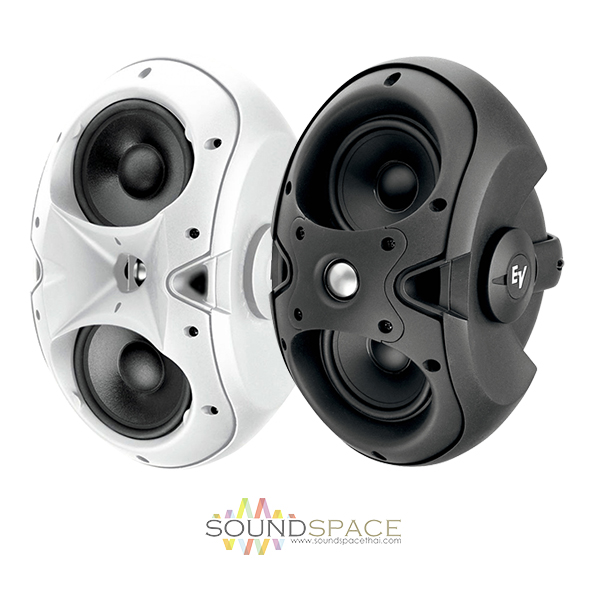

he Electro-Voice EVID 3.2t is a surface mount installation speaker featuring dual 3.5 woofers and a .75″ tweeter handling 150 Watts, housed in a compact and flexibly mounted enclosure. The unit is equipped with a transformer for 70V and 100V use.
The EVID 3.2t features a durable and rugged ABS enclosure with a zinc-coated steel grill to protect all internal components, which include dual weather-resistant treated woofers and a symmetrically located high-frequency tweeter. The speaker design offers balanced, full-range sound with optimum coverage.
Mounting the EVID 3.2t is achieved via the SAM Strong-Arm-Mount), which attaches each unit to a variety of locations and allows for a high degree of horizontal and vertical directivity. Additionally, the SAM mounting mechanism in combination with the speakers’ unique shape and size, allows for a sort of invisibility that works well in bar, restaurant or retail environments as a background music and paging solution.
Features:
- Rugged surface-mount weather-resistant installation monitor in black finish
- Transformer-isolated for 70V/100V use
- 150-Watts Power Handling
- 85Hz to 20kHz Frequency Response
- Dual woofers for extended bass
- Titanium dome tweeters with neodymium magnet
- Treated woofer cones for increased weather resistance and durability
- Over 100° of swing and 45° of rotation for maximum install flexibility
- Cast aluminum Strong-Arm-Mount provides excellent strength and reliability
Specifications
| Chassis Size | 88.9 mm (3.5“) |
| Color | Black, White |
| Input Connections | Spring Terminal |
| Speaker Type | Full-range, Mid-High, Two-Way |

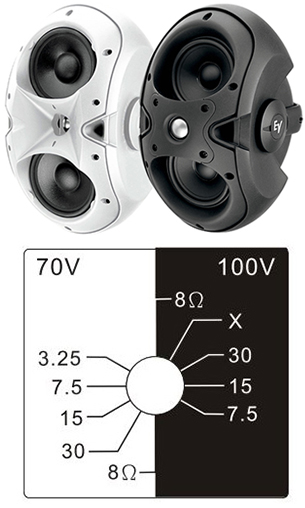

| Transformer Taps (Transformer Version Only) | 70 V: 5 W, 100 V:10 W |
| Frequency Response (-10 dB) | 85 – 20000 Hz |
| Sensitivity 1 W/1 m | 87 dB |
| Max. SPL/1m (calc) | 112 dB |
| Coverage (Nominal -6 dB) H | 140 ° |
| Coverage (Nominal -6 dB) V | 100 ° |
| System Power Handling (Continuous/Program/Peak) | 75//300 Watts |
| LF Transducer | Two 3.5-inch |
| HF Transducer | 0.75-inch |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 6 Ω |
| Outdoor | Yes |
| Height | 234 mm (9.21“) |
| Width | 127 mm (5“) |
| Depth | 165 mm (6.5“) |
| Weight Net | 52.91 oz (1500 g) |
