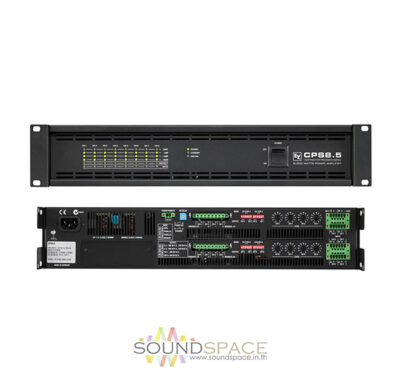

เพาเวอร์แอมป์ EV CPS8.5 Power Amplifier

Description

เครื่องขยายเสียง EV CPS 8.5 4 x 500W @ 4 Ohms

เครื่องขยายเสียงกลางแจ้ง EV CPS 8.5 มีกำลังขับ 8 x 500 วัตต์/4 Ohms, 8 x 500 วัตต์/8 Ohms, 8 x 500วัตต์/2 Ohms

The Electro-Voice CPS8.5 amplifier offers eight independent Class-D Variable Load Drive (VLD) amplifier blocks, each one capable of delivering up to 500 Watts into Low-Z or High-Z loads.

Per default, each channel can be configured individually for max. power output into either 2 Ohms, 4 Ohms, 70Vor 100V- networks without involvement of any output transformers. Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition to remarkably low current consumption and heat dissipation, the CPS8.5 provides remote standby switching with just 5 Watts consumption in standby mode. An optional remote control module RCM-810 provides control and supervision features via IRIS-Net, including monitoring of amplifier status and real time load supervision. In addition, via RCM-810 the Variable Load Drive characteristics can be set for max. power output into any load between 2 Ohms and 10 Ohms, in steps of 0.1 Ohm.

Features:

• Eight channels in one compact rack-efficient unit
• 500 W per channel
• 70/100 V operation for distributed systems
• Class-D design for optimum efficiency
• Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
• IRIS-Net selection of each channel’s impedance (2-10 Ω in 0.1 Ω steps)
• Rear-mounted attenuators
• Switchable 50 Hz high-pass filter (Hi-Z mode)
• Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
• Phoenix-type input and output connections
• Remote power-on/off contact
• Programmable power-on delay settings
• Front-to-rear fans
