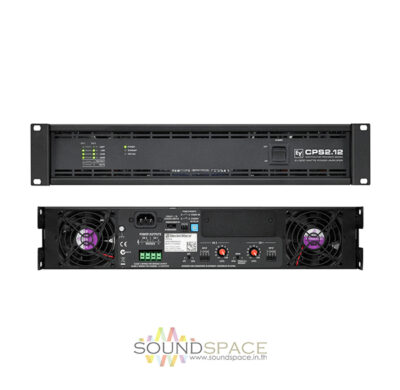

เพาเวอร์แอมป์ EV CPS2.12 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง EV CPS 2.12 มีกำลังขับ 2 x 1200 วัตต์/4 Ohms, 2 x 750 วัตต์/8 Ohms, 2 x 1800วัตต์/2 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿77,000.00 ฿65,400.00
Description
เครื่องขยายเสียง EV CPS 2.12 2 x 900W @ 4 Ohms
เครื่องขยายเสียงกลางแจ้ง EV CPS 2.12 มีกำลังขับ 2 x 1200 วัตต์/4 Ohms, 2 x 750 วัตต์/8 Ohms, 2 x 1800วัตต์/2 Ohms
The next generation of Contractor Precision Series two-channel amplifiers provide flexibility and reliability for the professional installation business. Designed for the contractor, the CPS 2.12 features 2-RU chassis, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on via remote contact enclosure, rear level controls, and a switchable 50 Hz high-pass filter (HPF).
Various optional signal processing modules include 50 Hz and 800 Hz crossovers for cinema systems as well as the XHP Variable high-pass module for ZX, Sx and EVID loudspeakers.
Like the CPS multi-channel amplifiers, the CPS 2.12 also includes a module slot for the RCM-810 remote-control module, enabling networking features for system diagnostics and control via IRIS-Net software.
Features:
- Up to 2 x 2400 W into 2 ohms
- Phoenix-type input and output connections
- Remote power-on/off contact
- Rear-mounted attenuators
- Programmable time for custom power-on delay settings
- Module slot for optional RCM-810 card, allowing control and monitoring
- Switchable 50 Hz high-pass filter
- Three-stage front-to-rear fans
- Class-H design
- Complete protection package
- Colour Black
- Dimensions (H x W x D) 88.1 x 482.6 x 421.5 mm
- Impedance 2/4/8 ohm
- Power Rating 1200 watt x 2 @ 4ohms
- Warranty 3 Years
- Weight 7 Kg
Specifications
| Amplifier Gain | 32 dB |
| Analog Inputs | 2, electronically balanced, Phoenix-type |
| Audio Network | No |
| CAN Bus Interface | Optional (RCM-810 card) |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 1800 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 1200 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 750 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 1100 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 550 Watts |
| Cooling | Front-to-Rear, 3-stage-fans |
| Crossover Type | Modular |
| DIM 30 | 0.05 % |
| Electronics Type | Amplifier |
| Frequency Response | 10 Hz – 40 kHz ±1 dB |
| Impedance | 2/4/8 Ω |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | +6.6 dBu (1.66 Vrms) |
| Intermodulation Distortion (SMPTE) | 0.1 % |
| Mains Voltage | 240 V, 230 V, 120 V or 100 V; 50 Hz – 60 Hz (factory configured) |
| Maximum Bridged Output 4Ω | 3600 Watts |
| Maximum Bridged Output 8Ω | 2400 Watts |
| Maximum Input Voltage | +21 dBu (8.69 Vrms) |
| Network Control (IRIS-Net) | Optional (RCM-810 card) |
| Slew Rate | 30 V/µs |
| Topology | Class-H |
| Total Harmonic Distortion | 0.03 % |
| Variable Load Drive (VLD) | No |
| Height | 2RU 88.1 mm (3.47″) |
| Width | 482.6 mm (19″) |
| Depth | 421.5 mm (16.59″) |
| Weight Net | 17.7 kg (39.02 lbs) |
