ลำโพง Electro-Voice EVID-S8.2T Commercial Loudspeaker สำหรับการใช้งานแบบ 70/100V System, ขนาดดอกลำโพง 8 นิ้ว LF Driver, 1″ HF Driver, ทนกำลังขับ 90 วัตต์, ตอบสนองความถี่ 50 Hz to 20 kHz (-10db) มีทั้งแบบสีดำและสีขาว มาพร้อมขาจับ
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาคู่ละ…
฿33,500.00 ฿28,500.00
ลำโพง Electro-Voice EVID-S8.2T Commercial Loudspeaker สำหรับการใช้งานแบบ 70/100V System, ขนาดดอกลำโพง 8 นิ้ว LF Driver, 1″ HF Driver, ทนกำลังขับ 90 วัตต์, IP54-Certified for Weather Resistance, ตอบสนองความถี่ 50 Hz to 20 kHz (-10db) มีทั้งแบบสีดำและสีขาว มาพร้อมขาจับ

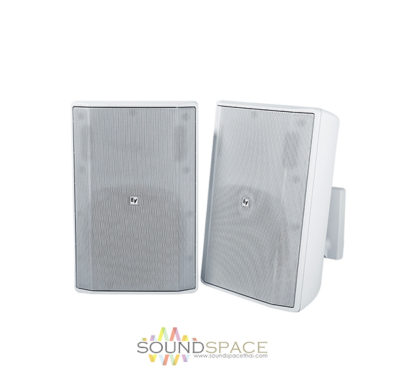

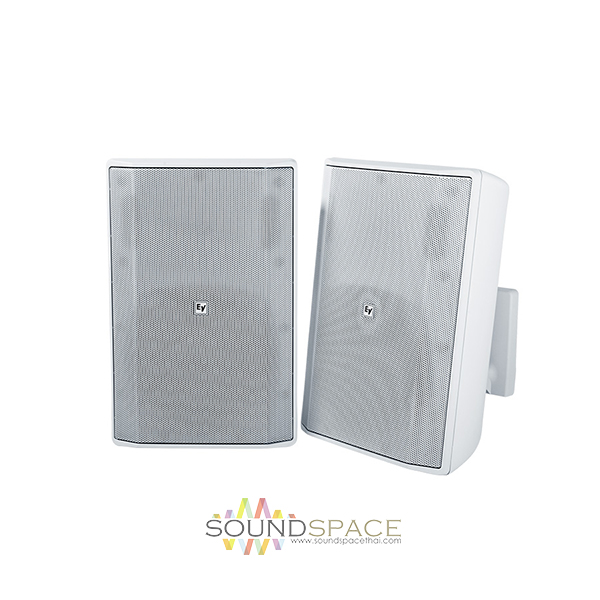

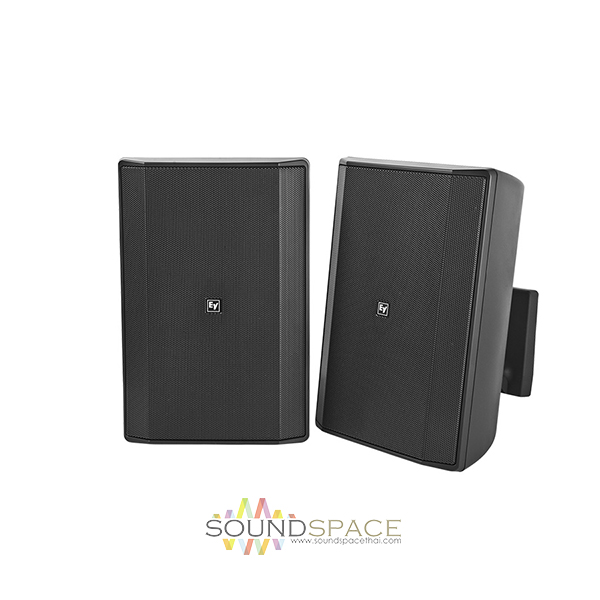

Electro-Voice EVID-S8.2T is a pair of 8” 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more.
Each speaker is IP54-certified for weather-resistant use outdoors and features a fire-rated ABS plastic enclosure. A pre-assembled mounting system and supplied mounting hardware enable simple and efficient setup.
A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. The 8” woofer and 1” high-frequency driver yield a frequency response of 50 Hz to 20 kHz. With a 110 dB maximum SPL and a coverage area of 90° by 90°, the EVID-S8.2T speakers deliver consistent audibility and even sound distribution.
LF Driver | 8″ / 203 mm |
HF Driver | 1″ / 25 mm |
Connector Type | 1 x 4-pin Euroblock connector (removable, locking) |
Maximum Wire Size | 12 AWG (2.5 mm) |
Coverage | Horizontal: 90° (nominal -6 dB) Vertical: 90° (nominal -6 dB) |
Environmental Specifications | IP54 (per IEC-60529) |
Frequency Response | 50 Hz to 20 kHz (-10 dB) 70 Hz to 20 kHz (-3 dB) |
Sensitivity | 90 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W) |
Maximum SPL | 110 dB calculated, 116 dB peak |
Power Handling | 360 W peak (90 W with continuous pink noise for 100 hours) |
Low Impedance | Yes |
Impedance | Nominal: 8 Ohms Minimum: 6.4 Ohms |
High-Pass Filter | Recommended: 50 Hz |
Transformer | 60 W |
Transformer Taps | 7.5 W (70 V only), 15 W, 30 |
Enclosure Material | Fire-rated ABS plastic |
Dimensions (H x W x D) | 15.4 x 9.8 x 8.8″ / 390 x 250 x 224 mm |
Weight | 12.8 lb / 5.8 kg |
Packaging Info | |
---|---|
Package Weight | 32.9 lb |
Box Dimensions (LxWxH) | 20.8 x 18.3 x 15.1″ |
