ชุดไมโครโฟนไร้สาย Electro-Voice EV RE3-BPHW-T Wireless Microphone

Name: ชุดไมโครโฟนไร้สาย Electro-Voice EV RE3-BPHW-T Wireless Microphone
Price: 35100.00 THB
Availability: InStock

ชุดไมค์ลอยแบบเกี่ยวหู EV RE3-BPHW-T เป็นชุดไมโครโฟนไร้สายย่าน UHF ตรงกับความถี่ที่ กสทช. อนุญาติให้ใช้ (803 to 806 MHz) ประกอบด้วยเครื่องรับ RE3-RX Diversity Receiver 1 เครื่อง, เครื่องส่ง RE3-BPT Bodypack Transmitter 1 เครื่อง พร้อมไมโครโฟน HW3 1 ตัว

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿41,300.00~~ ฿35,100.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: EV Electro-Voice

Description

EV RE3-BPHW-T Bodypack Wireless System with Headworn Mic

The EV RE3-BPHW-T (Band T : 803 to 806 MHz) Bodypack UHF wireless set containing the HW3 supercardioid headworn microphone voice performance, presentations, and athletic instruction.

The HW3’s sound is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Features:

For Theater, Broadcast & Concert Sound
Rack-Mountable Diversity Receiver
Compact Bodypack Transmitter
Supercardioid Headworn Microphone

Specifications

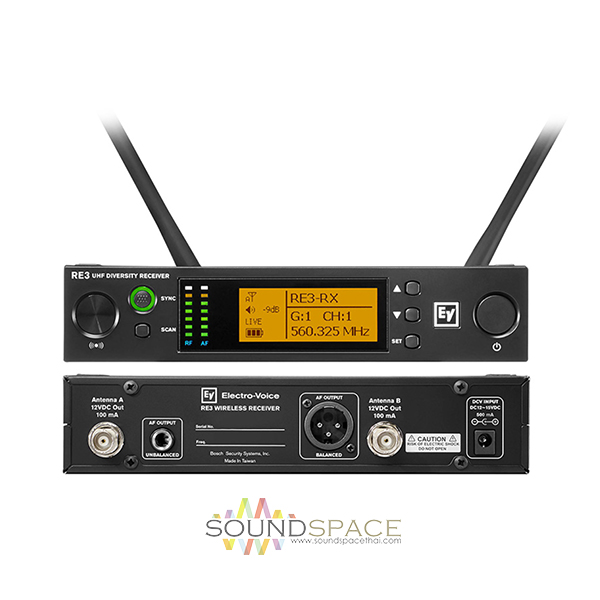

Electro-Voice RE3-RX-T

Receiver

Receiver Type	Tabletop
Mounting Options	Rackmount (with Included Hardware)
Rackmount Size	1 RU (1/2 Rack)
Antenna	2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage	12 to 15 VDC
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Line Output 1 x 1/4″ TS Male Unbalanced Line Output
Frequency Response	51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity	81 dBm
RF Output Power	Up to 50 mW (Max)
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	12 to 15 VDC (Included)
Display & Indicators	Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing	Metal
Dimensions	8.2 x 1.9 x 6.1″ / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Transmitter

Wireless Technology	Analog UHF
Number of RF Channel Frequencies	1440
Diversity	Antenna Diversity
RF Frequency Band	560 to 596 MHz
RF Bandwidth	Up to 36 MHz
RF Channel Scanning	Auto-Scan
Modulation	Wideband FM

Packaging Info

Package Weight	3.395 lb
Box Dimensions (LxWxH)	10.6 x 10.1 x 4.1″

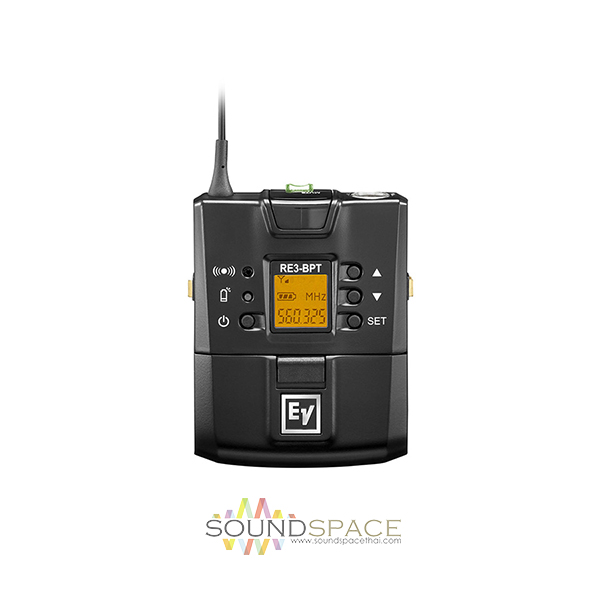

Electro-Voice RE3-BPT-T Bodypack Transmitter

Wireless Technology	Analog UHF
RF Frequency Band	803 to 806 MHz
RF Bandwidth	36 MHz
Modulation	Wideband FM

Transmitter

Transmitter Type	Bodypack
RF Output Power	10 / 50 mW (Switchable)
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting	Mute Switch
Sync Method	IR
Antenna	1 x Flexible Whip, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	2 x AA (Included, Replaceable)
Display & Indicators	1 x Backlit LED (Channel, Group, Mute)
Housing	Metal
Dimensions	2.5 x 3.2 x 0.9″ / 6.3 x 8.1 x 2.3 cm (without Antennas)
Weight	6.1 oz / 172.9 g (with Antenna)

Packaging Info

Package Weight	0.62 lb
Box Dimensions (LxWxH)	10.6 x 3.2 x 2″

Electro-Voice RE3-ACC-HW3

Microphone

Form Factor	Headworn
Sound Field	Mono
Capsule	Condenser
Polar Pattern	Supercardioid
Windscreen	Foam (Included)

Performance

Frequency Range	30 Hz to 18 kHz
Maximum SPL	130 dB SPL Peak
Impedance	1000 Ohms
Sensitivity	0.5 mV/Pa (Open Circuit Voltage, 1 kHz)

Connectivity

Output Connectors	1 x TA4/Mini XLR 4-Pin Female
Cable Length	45.28″ / 115.01 cm

Power

Operating Voltage

3 to 9 V

Physical

Color	Black
Mounting	Over-Ear (Double/Neckband)
Construction Material	Silicone, Stainless Steel, Steel
Dimensions	L: 5.83″ / L: 14.81 cm (Boom)
Weight	1.35 oz / 0.04 kg
