ลำโพง Electro-Voice ELX200-10P Powered Speaker 10″
ลำโพงแบบมีกำลังขยายในตัว Electro-Voice ELX200-10P เป็นลำโพงรุ่นใหม่ในตระกูล ELX200 Series, มีดอกลำโพงขนาด 10 นิ้ว เสียงแหลม 1 นิ้ว, มีกำลังขับ 1200 วัตต์ Class-D Amplifier, 53 Hz to 20 kHz Frequency Range, On-Board DSP, Supports Bluetooth Control
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿45,200.00 ฿38,400.00
Description

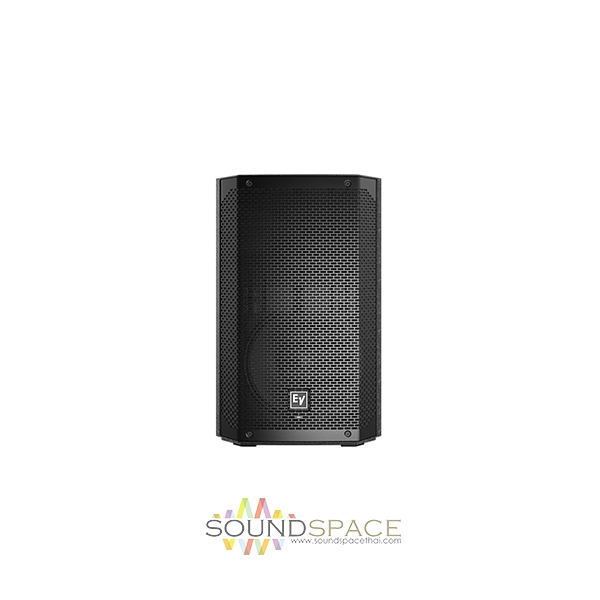

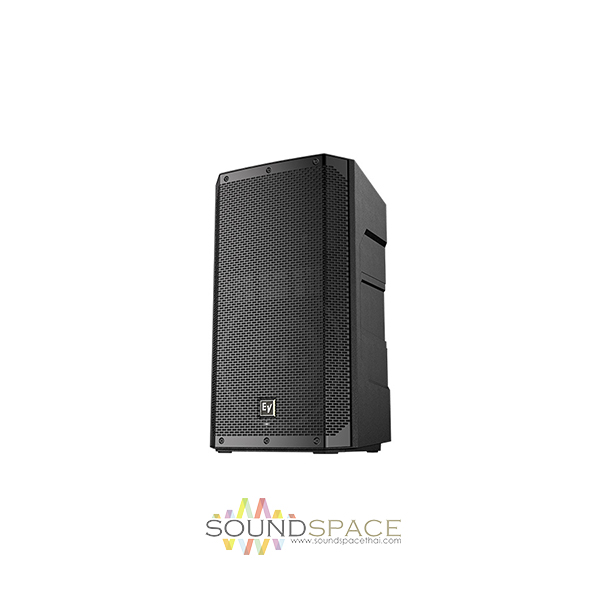

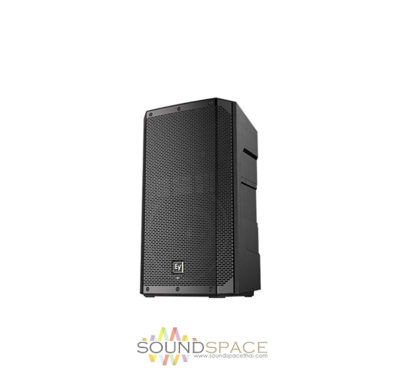

Electro-Voice ELX200-10P 10″ 2-Way 1200W Powered Speaker
ลำโพงแบบมีกำลังขยายในตัว Electro-Voice ELX200-10P เป็นลำโพงรุ่นใหม่ในตระกูล ELX200 Series, มีดอกลำโพงขนาด 10 นิ้ว เสียงแหลม 1 นิ้ว, มีกำลังขับ 1200 วัตต์ Class-D Amplifier, 53 Hz to 20 kHz Frequency Range, On-Board DSP, Supports Bluetooth Control
Electro-Voice ELX200-10P-AP is a 10″ 2-way 1200W powered speaker designed to provide dependable amplification, flexible installation, and convenient control for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It features 1200W of Class-D amplification, which drives a 10” woofer and a 1” titanium high-frequency compression driver, yielding a frequency range of 53 Hz to 20 kHz.

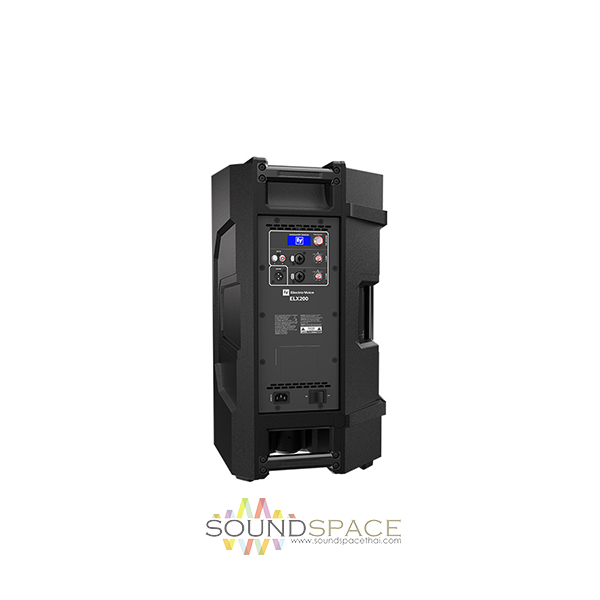

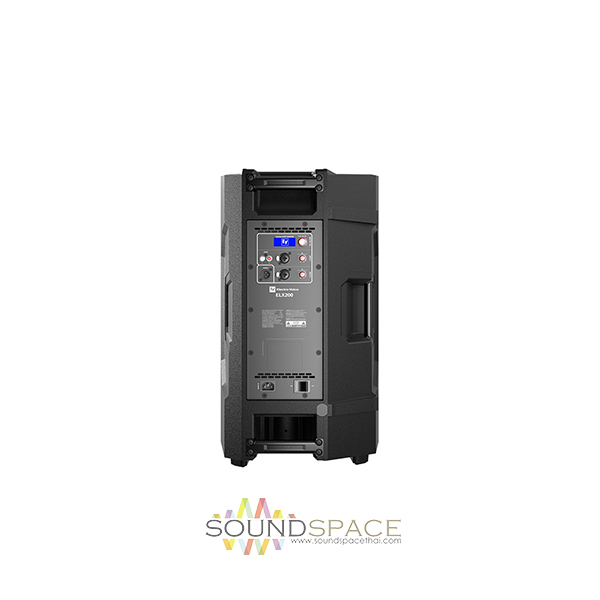

Connect balanced sources via two XLR-1/4” combo jack inputs; route an unbalanced stereo signal to the two RCA coaxial input jacks. Rear-panel knobs are provided for input levels and master volume. On-board DSP offers four easy-setup presets, five user-programmable presets, 3-band EQ, and metering.
Adjust parameters via the single-knob interface and LCD, or control the speaker via Bluetooth. Its polypropylene enclosure and steel grille ensure a combination of durability and light weight. Three carry handles allow easy loading and unloading at gigs.
Integrated pole mounts and three M10 suspension points enable versatile mounting and orientation. The ELX200-10P-US ships with a power cable.
Features:
- 10″ woofer, 1″ titanium high-frequency compression driver
- 53 Hz to 20 kHz frequency range
- 1200W of Class-D power amplification
- SST (Signal Synchronized Transducer) waveguide contributes to 90° x 60° coverage
- Two XLR-1/4″ combo jack inputs and a stereo RCA coaxial input
- Input-level controls and master volume
- On-board DSP functions include four easy-setup presets, five user-programmable presets, 3-band EQ, sub/top system-match crossovers, and metering
- Single-knob user interface with LCD
- Supports wireless control and monitoring via Bluetooth
- Polypropylene enclosure with steel grille
- Integrated carry handles, pole mounts, and suspension points
Specifications
| Active or Passive | Active |
| Frequency Response | 59 Hz to 18 kHz (-3 dB) |
| Frequency Range | 53 Hz to 20 kHz (-10 dB) |
| Power Capacity | 1200 W |
| Maximum Sound Pressure Level (SPL) | 130 dB |
| Impedance | Not specified by manufacturer |
| Amplifier | Class-D |
| Crossover | 1.8 kHz |
| Low Frequency Driver | EVS-10M 10″ / 254 mm |
| High Frequency Driver | 1″ DH-1C titanium compression driver |
| High-Frequency Waveguide | Electro-Voice SST (Signal Synchronized Transducer) |
| Coverage | 90° x 60° |
| Enclosure Material | Polypropylene with powder-coated 18 AWG steel grille |
| Input Connections | 2 x XLR-1/4″ combo jacks 2 x RCA coaxial (one L/R pair) |
| Output Connections | 1 x XLR 3-pin |
| Controls | Input 1 gain Input 2 gain Master volume |
| DSP | 4 x factory presets 5 x user presets 3-band EQ |
| Mounting | 3 x M10 threaded suspension points |
| Power Requirement | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 1.8 A |
| Dimensions (H x W x D) | 20.8 x 13.0 x 12.8″ / 528.3 x 330.2 x 325.1 mm |
| Weight | 29.9 lb / 13.6 kg |
| Packaging Info | |
|---|---|
| Package Weight | 35.4 lb |
| Box Dimensions (LxWxH) | 23.2 x 16.0 x 15.5″ |
