เพาเวอร์มิกเซอร์ DYNACORD PM1600-3 Powered Mixer

Description

DYNACORD PowerMate 3 PM1600-3 Powered Mixer

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ DYNACORD PowerMate เวอร์ชั่นที่3 PM1600-3, กำลังขับ 2 x 1000 W/4 Ohms RMS, 12 MIC/LINE inputs, 4 stereo MIC/LINE inputs, 6 AUX-busses, editable effects

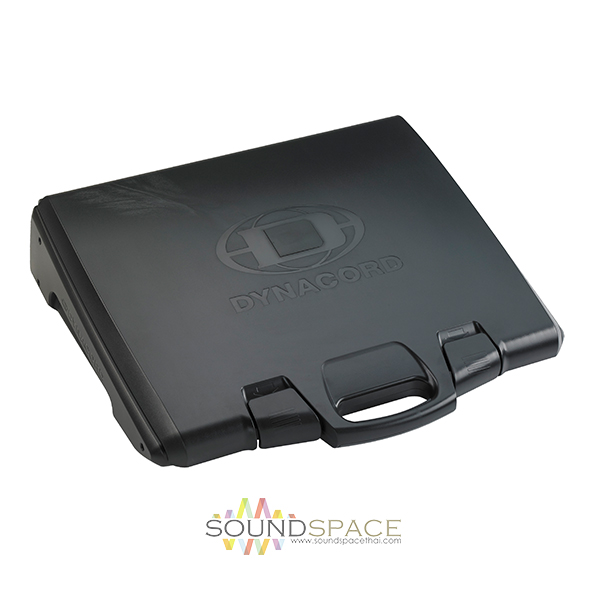

Third-generation success story: the PowerMate3! The current PowerMate generation features a multitude of innovations and optimizations. Despite a clear reduction in weight, it offers considerable gains in terms of both power amplifier output and features, as well as being more compact than ever before. The PowerMate 1600-3 is supplied with a very robust plastic lid with an integrated handle, a highly innovative solution that offers optimal protection for the device as well as greater carrying comfort.

Features:

• Powermixer with 2x 1000 watt RMS / 4 Ohm power
• 12 MIC/LINE inputs, 4 stereo MIC/LINE inputs, 6 AUX-busses
• 30% reduction in weight, more compact dimensions and >50% less energy consumption compared to the previous models
• editable effects
• USB digital audio interface + MIDI
• Low-noise pre-amp the +48V phantom power for condenser microphones can be switched in groups of six.
• line input and channel insert are implemented as jack sockets
• gain can be controlled in the range 0-60 dB.
• the switchable Lo Cut filter (80Hz, 18dB/oct) serves to eliminate low-frequency noise
• a very typical DYNACORD feature is the asymmetrical Voicing Filter by means of which, if desired, the voice can be powerfully emphasized in the mix.
• 3-band semi-parametric equalizer makes it possible even for unpractised users to perform the requisite corrections swiftly and intuitively.
• possible to mute each input channel individually and/or listen to its pre-fader signal
• Signal Present and Peak LED for level control
• channel fader is dust-protected and offer not only excellent crosstalk attenuation all potentiometers and faders are high-quality components from ALPS.
• 2 of the 4 stereo inputs of each model are additionally equipped with cinch (RCA) sockets switched in parallel for CD or MP3 players.
• 2 other stereo inputs receive in addition the four channels of the digital audio interface USB 1-2 and USB 3-4
• separate gain controls are provided for the stereo Line and Mic inputs to permit them to be used in parallel if desired.
• 3-band tone controls are provided and a Balance control replaces the PAN control found in the mono channel strips.
• 11-band stereo EQ can be routed to the Master channels or else to either or both of the Monitor Sends according to choice.
• 4-pin XLR socket is provided for the connection of a standard 12V/5W gooseneck lamp.
• USB 2.0 port serves as a digital audio interface between the PowerMate and a PC or Mac.
• the PowerMate also offers a fully-featured PC MIDI
• 2 integrated stereo multieffects processors that work independently of one another, each offering 100 effects algorithms optimized for live performance, the most important parameters of which are editable.
• dimensions (WxHxD): 663,5 x 164,5 x 571,5 (with cover)
• weight: 15 kg, with cover 17 kg
