เพาเวอร์แอมป์ Dynacord L1300FD DSP Power Amplifier 2x650W
เครื่องขยายเสียง เพาเวอร์แอมป์ Dynacord L-Series L1300FD Advanced DSP with FIR Drive Technology, Single, Dual Channel, and Bridged Modes, มีกำลังขับ 2 x 1000 วัตต์ at 2 โอหม์, 2 x 600 วัตต์ at 4 โอหม์, 2 x 320 วัตต์ at 8 โอหม์, SpeakOn Connectors
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿41,400.00 ฿35,100.00
Description

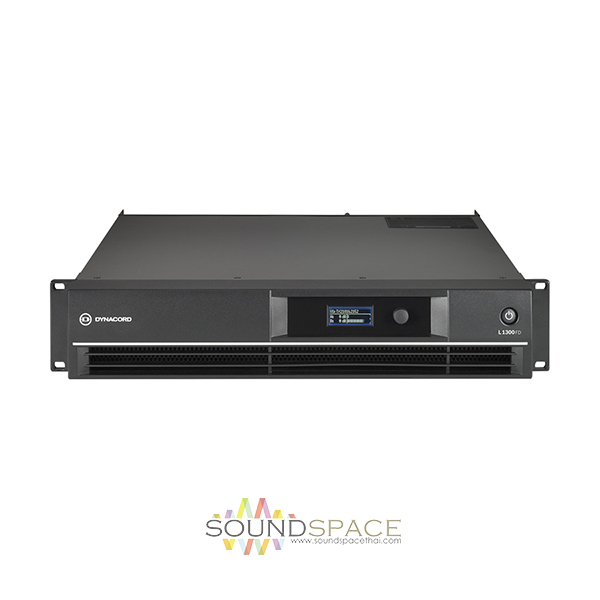

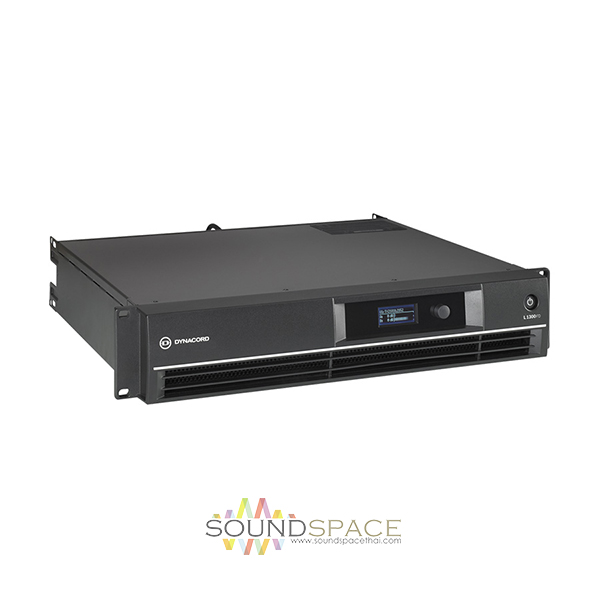

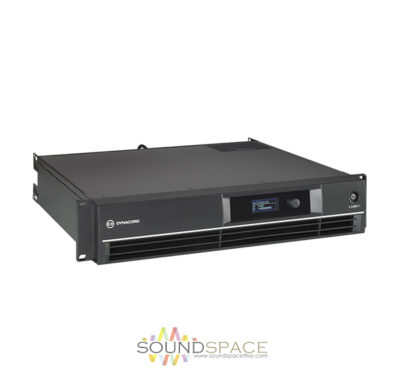

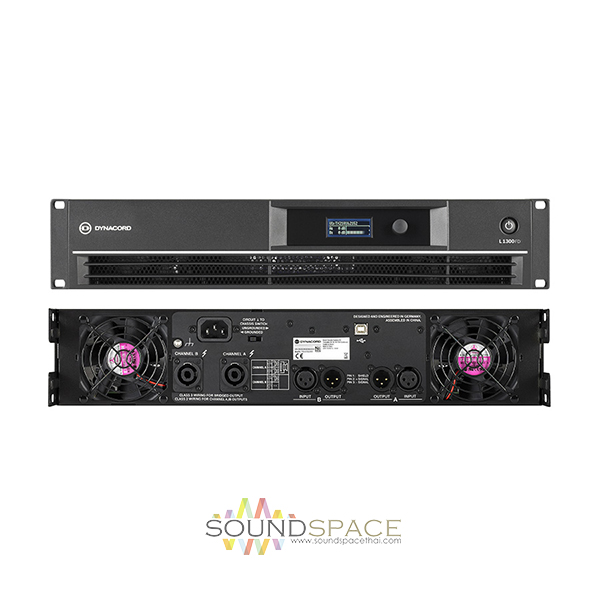

Dynacord L1300FD L-Series FIR-Drive Power Amplifier 1300W
เครื่องขยายเสียง เพาเวอร์แอมป์ Dynacord L-Series L1300FD Advanced DSP with FIR Drive Technology, Single, Dual Channel, and Bridged Modes, มีกำลังขับ 2 x 1000 วัตต์ at 2 โอหม์, 2 x 600 วัตต์ at 4 โอหม์, 2 x 320 วัตต์ at 8 โอหม์, SpeakOn Connectors
Dynacord L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.
L Series power amplifiers provide a best-in-class, tour-grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L Series offers high-quality components and truly professional processing power and performance characteristics.
Its engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuit ensures safe, reliable operation under all conditions.
An onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group. L Series amplifiers are also equipped with advanced FIR-Drive, a proprietary premium feature normally reserved for the highest quality tour-grade DSPs. Four different models are available, with total output power ranging from 1300 W to 3600 W at 4 ohms.
Features:
- 2 x 1000W at 2 Ohms, 2 x 600W at 4 Ohms, 2 x 320W at 8 Ohms
- Constant Stability at 2 Ohms
- SpeakOn Connectors
- Single, Dual Channel, and Bridged Modes
- Advanced DSP with FIR Drive Technology
- Powerful Control Software
- Advanced Protection Circuitry
Specifications
| Load Impedance | 2Ω 2.6Ω 4Ω 8Ω |
| Maximum Output Power, SIngle Channel | 2Ω=1100W; 2.6Ω =950W; 4Ω=660W; 8Ω=350W |
| Maximum Output Power, Dual Channel | 2Ω=1000W; 2.6Ω =850W; 4Ω=600W; 8Ω=320W |
| Maximum Output Power, Bridged | 4Ω=2000W; 8Ω=1200W |
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 55.3 V |
| Voltage Gain ref.1kHz | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% |
| DIM 30 | < 0.05% (3.15 kHz, 15 kHz) |
| Maximum Input Level | +21 dBu |
| Crosstalk | < -80dB (ref. 1 kHz, at 100 W/4 Ω) |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20kΩ |
| Signal-to-Noise Ratio (A-weighted) | >104dB |
| Output Noise , A-weighted | < -68 dBu |
| Output Stage Topology | Class AB |
| Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption | 550 W (⅛ Maximum Output Power @4Ω) |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Safety Class | I |
| Available Color | Black |
| Height | 88mm (3.46″) |
| Width | 483mm (19.02″) |
| Depth | 462.4mm (18.2″) |
| Weight Net | 12.9kg (28.44 lbs) |
| Signal Processing | FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance |
| Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH |
| Operating Temperature Range | +5°C to +40°C (40°F to +105°F) |
| Total Harmonic Distortion | < 0.05% (at 450 W/4 Ω MBW = 80 kHz, 1 kHz) |
